UVC to HDMI Adapter

Name: UVC to HDMI Adapter
Brand: Africa Broadcast Store Ltd
SKU: UVC to HDMI Adapter
Price: 354677 NGN
Availability: OutOfStock

EAN: 6971889230212

HDMI Adapter for Video Connection OBSBOT - OHB-2110-CA

go to the technical sheet

₦ 354,677.00

₦ 329,932.01 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Obsbot HDMI Adapter for Video Connection OBSBOT - OHB-2110-CA

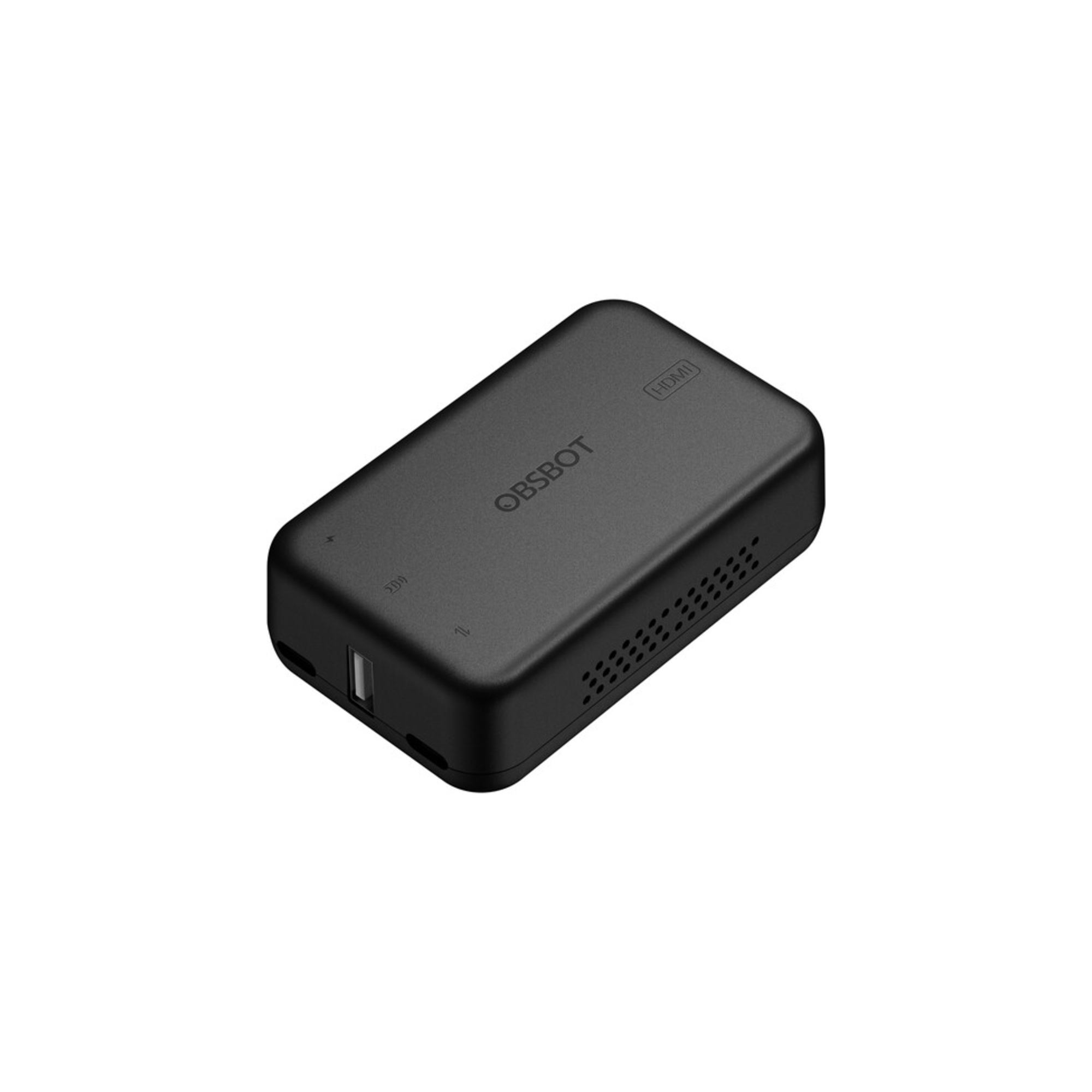

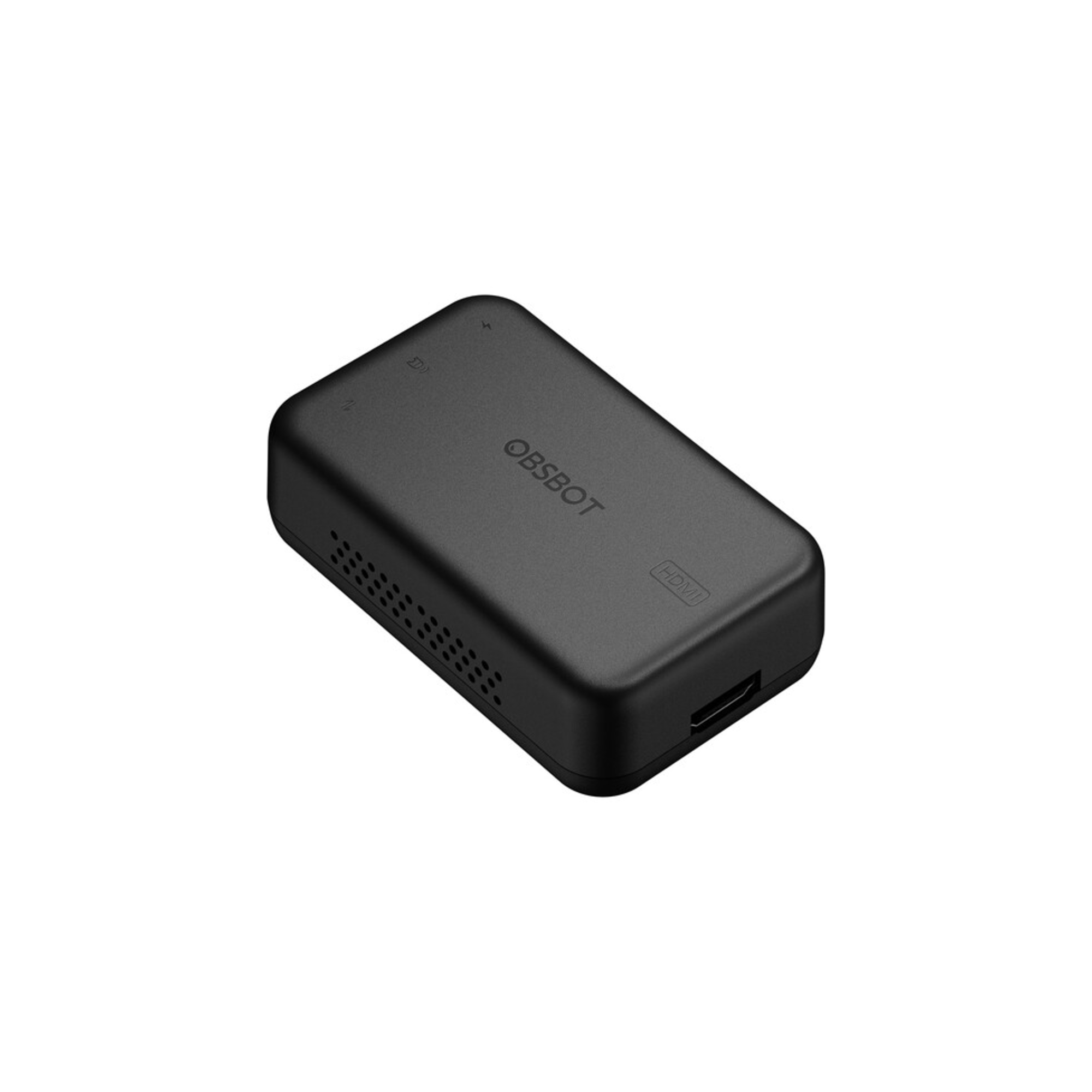

View and/or monitor the UVC output of your webcam or PTZ camera with low latency and with output resolutions up to UHD 4K60 on any display that has an HDMI input with this UVC to HDMI Adapter from OBSBOT.
The plug-and-play adapter features two USB-C inputs, one for your UVC source signal and one for powering the unit, a USB-A input for working with an optional OBSBOT remote controller and USB wireless receiver (available separately), and an HDMI 2.0 output for connecting to a display.
The unit comes with a 5' USB-C to USB-C cable that may be used for connectivity to your UVC source device or for power, when used with an optional 9V/2A or 5V/2A USB-C power adapter.
Firmware upgrade may be done, when available, using an optional USB flash drive.

Inputs/Outputs
USB I/O:
- 1 x USB-C (Charging Only) Female Input
- 1 x USB-A Female Input
Video I/O:
- 1x USB-C Input
- 1x HDMI 2.0 Output
Compatibility: Camera with UVC1.1/UVC1.5 Protocol
Decoding Formats: MJPEG, YUV, H.264
Input Resolutions:
SMPTE:
UHD 4K at 30 fps
1080p at 30/50/60 fps
720p at 25/30/50/60 fps
VESA:
3840 x 2160 at 30 fps
1920 x 1080 at 25/30/50/60 fps
1280 x 768 at 60 fps
1280 x 720 at 30/50/60 fps
Output Resolutions:
SMPTE:
UHD 4K at 30/60 fps
1080p at 30/50/60 fps
720p at 25/30/50/60 fps
VESA:
3840 x 2160 at 30/60 fps
1920 x 1080 at 25/30/50/60 fps
1280 x 768 at 60 fps
1280 x 720 at 30/50/60 fps

Power
Power Source: USB (Not Included)
DC Input Power: 5 / 9 VDC at 2 A

Physical
Color: Black
Operating Conditions: 32 to 87°F / 0 to 55°C at 20 to 55% Humidity
Dimensions: 3.6 x 2.2 x 1.1" / 90.5 x 55.5 x 27.2 mm
Weight: 2.8 oz / 78 g
