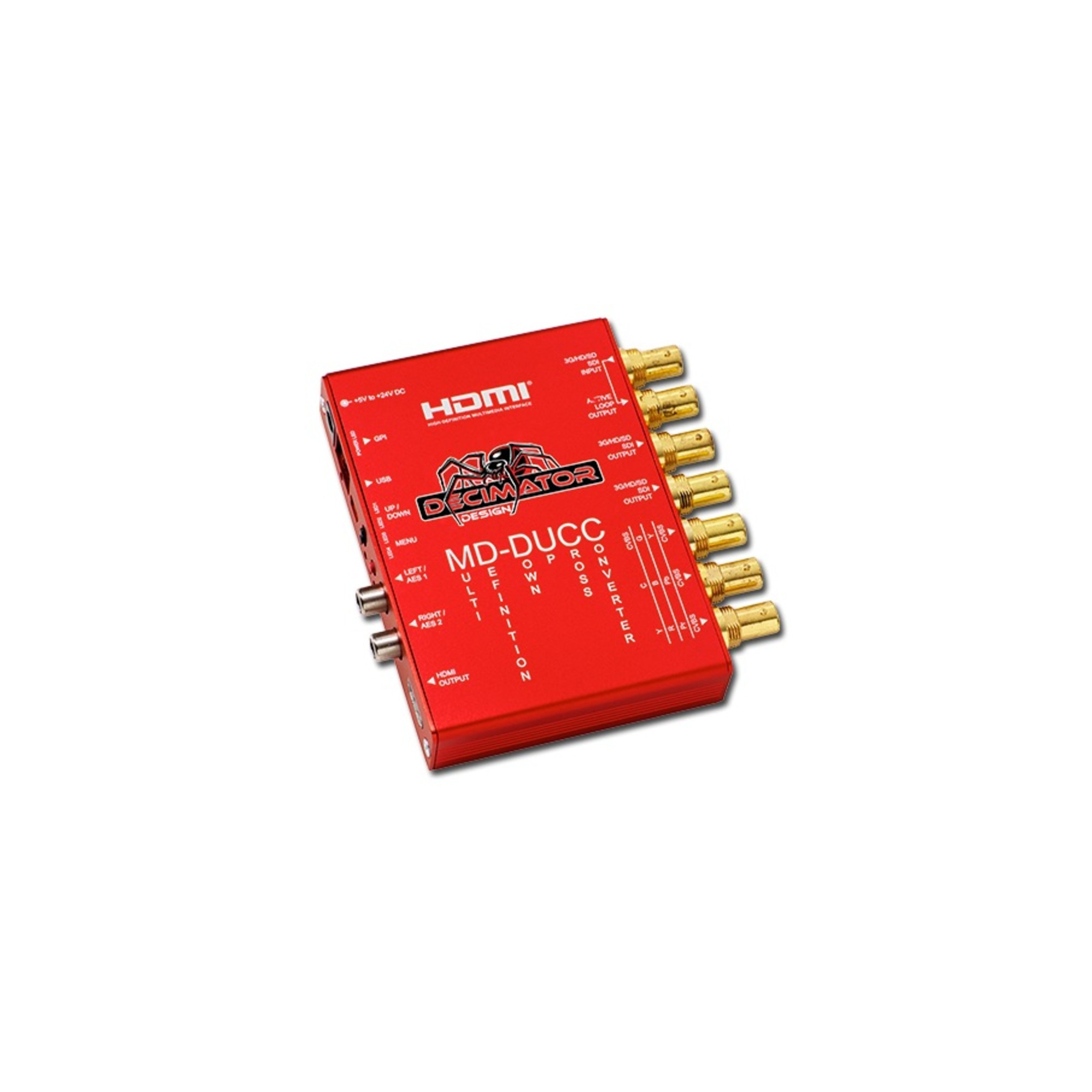

MD-DUCC

Multi-Definition Down Up Cross Converter
(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video
with 2 x AES/EBU or 2 x Analogue Audio Outputs

FEATURES:
° (NEW) Support both 3G level A and B on the input and output.
Allowing conversion between A and B.
° (NEW) Horizontal and/or Vertical image flipping via the built in scaler.
° Auto detects 3G, HD or SD (26 Formats in total)
° Full 10-bit data path and multipoint interpolation
° Professional motion-adaptive de-interlacing
° True Down Up Cross conversion, allowing the conversion between
any of the supported formats. Simply select the output format
you require, no matter what the input format is
° Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with
individual selection for HD to HD, HD to SD, SD to HD and SD to SD
conversions
° Full 16-Channel Audio metering with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
° Adjustable Graticules Generator with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
° Text Overlays with:
- (NEW) Custom Position, Size and Justification
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
° The audio source for all 4 stereo pairs in the HDMI output can be
selected from the 8 stereo pairs available in the SDI input
° When scaling is enabled, the audio source for all 8 stereo pairs in
the SDI output can be selected from the 8 stereo pairs available in
the SDI input
° HDMI output
° Selectable analogue video output from:
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out
° 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input
automatically delayed and passed
° GPI on RJ-45 for Tallies
° 3G/HD/SD-SDI Active Loop-Through Output
° De-Embedded audio can be output on 2 x RCA connectors as either
AES or Analogue with adjustable analogue audio level
° LEDs for status and buttons for basic configuration
° USB port for control and firmware updates
° Locking DC Power Socket
° The following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket
