Fiber Dispatch 4 PTZ 12G

Middle Things 1U Fiber Dispatch 4 PTZ 12G, SDI In/Out, Supports Single-Mode LC Optical Fiber

Built for on-location multi camera PTZ workflows in mind, the Fiber Dispatch 4 converts 4 pairs of SDI In/Out 4K video + IP LAN signals into 4 optical fiber outputs, using robust Neutrik OpticalCon Duo connectors.
It is very similar to the Fiber Dispatch 5 12G, the difference is the added 1G LAN port at the back, adding LAN communication to all 4 fiber outputs, which makes it ideal for PTZ cameras!

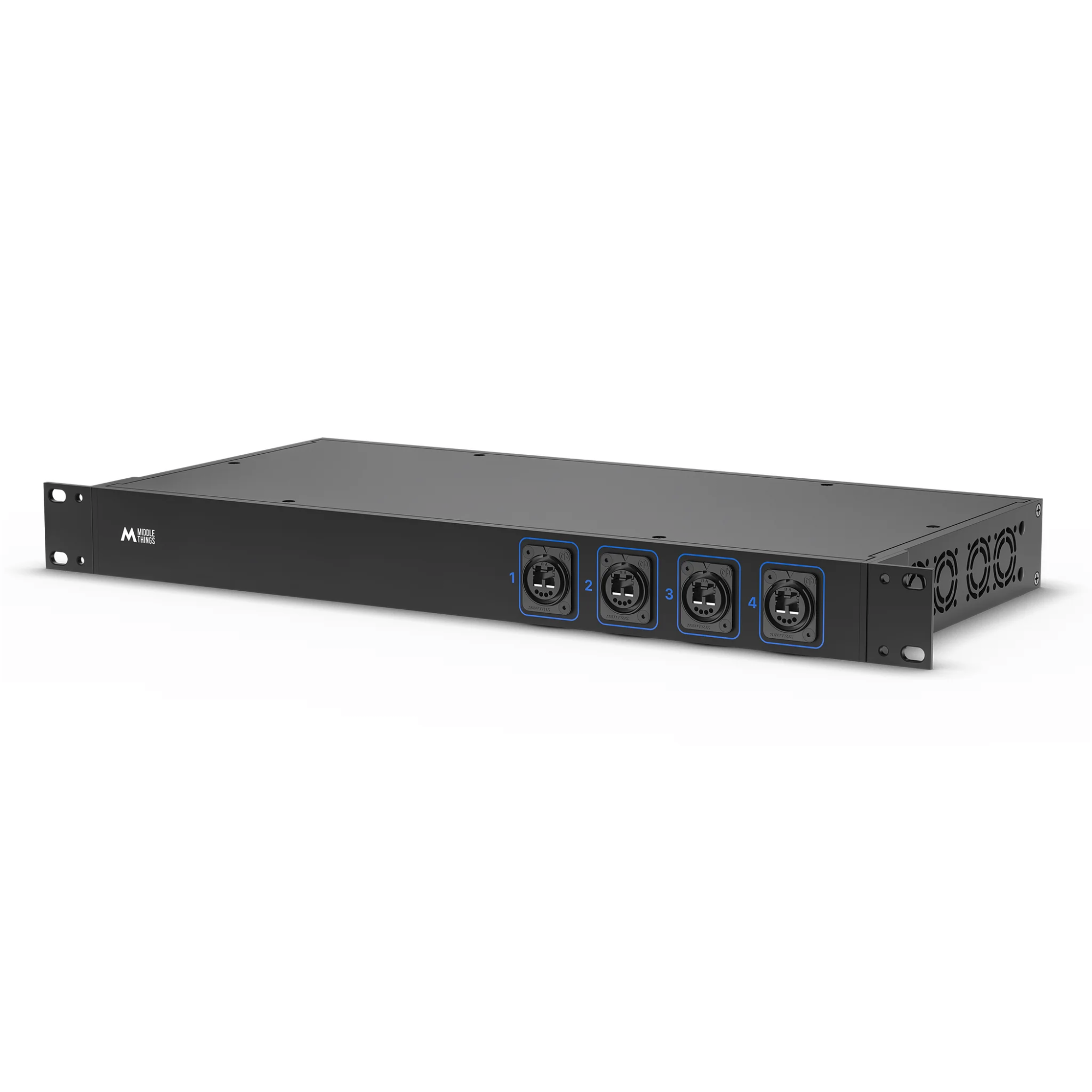

Standard 1U rack design
Thanks to a compact 1U rack design, the Fiber Dispatch 4 converter will sit perfectly inside your existing video rack, allowing you to connect up to 4 PTZ cameras using the Fiber Camera Box PTZ (Slave version).
Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

Made for efficiency and 4K over long distances
The Fiber Dispatch 4 merges each of these cable triplets into Duo Optical fiber cables, which are more lightweight and much more reliable than traditional copper BNC cables since they are insensitive to all electromagnetic interferences.
You can run your fiber cable over thousands of miles with zero dropouts.

Industry standard & widespread fiber connector
The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling.
The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.


Compatibility
The Fiber Dispatch 4 can be used with the Middle Things Fiber Camera Box PTZ 12G - Standard Version (Slave).
It is not compatible with the Master version of the camera box, since the Dispatch 4 is a Master.
It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables.
Supported SDI video signals are 3G, 6G, and 12G (max 2160p60 )
