BarnColor Flex 10G - Green

Barnfind SFP-determined 4x10G SFP, color Green (Power cable not included)

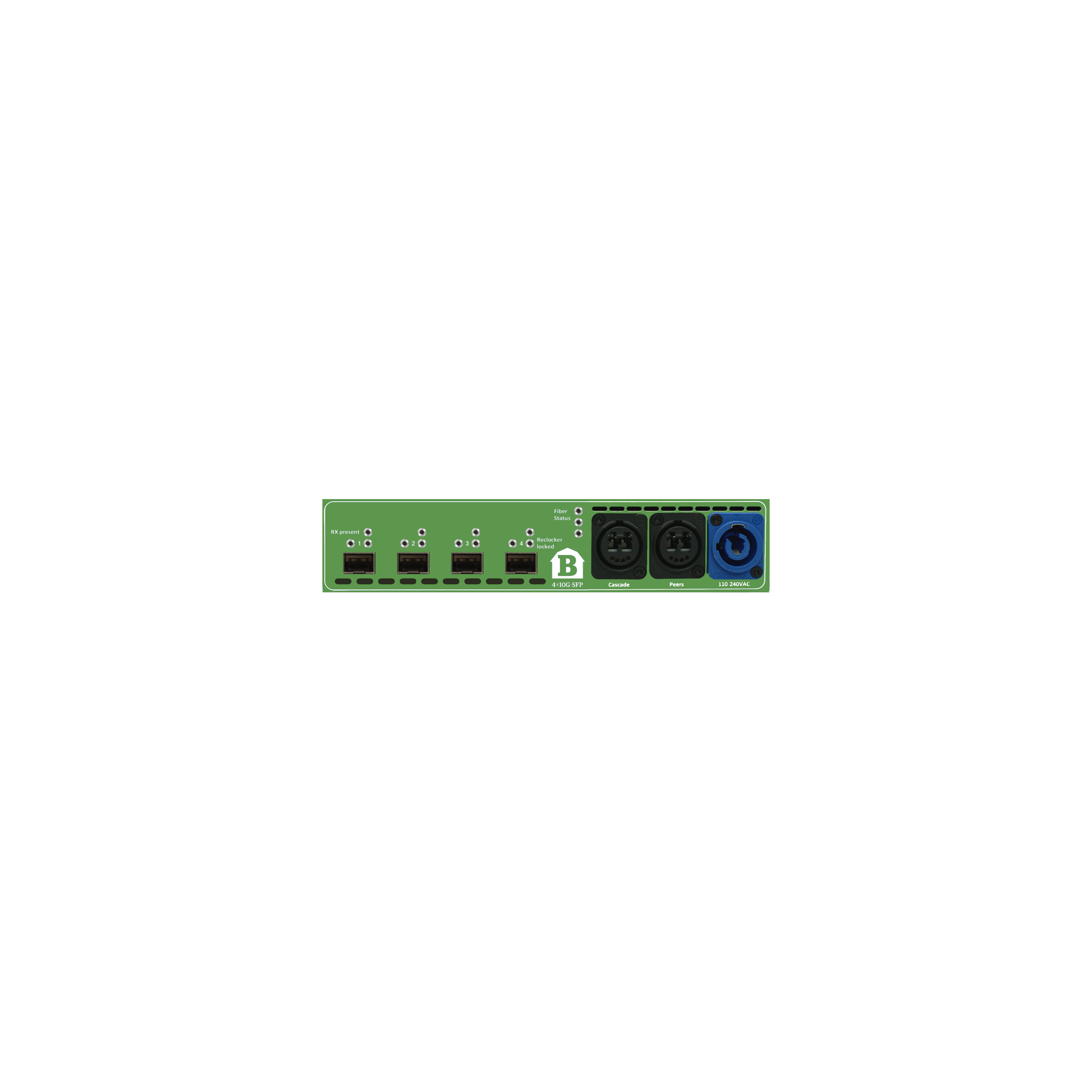

Designed to supplement the highly flexible BarnColor system, the new BarnColor 4xSFP-Flex provides 4 SFP transceiver cages on each unit and allows you to configure your BarnColor-Flex pairs with the signal processing SFPs needed for your unique application.
Up to four different color units can be cascaded to each other, the system supports up to 16 transceiver cages on each side and allows the transport of 32 signal feeds, 16 feeds forward and 16 returns.
Can be combined with any models in different colors.

Both MSA and non-MSA SFP modules can be inserted into this BarnColor with the limitation that dual-TX and dual-RX models will operate in single-channel mode.

Examples of SFPs being used:
- PtP (any wavelength)
- Multimode
- BNC-SFP
- HDBNC-SFP
- HDMI-SFP
- Analog Video-SFP
- IP encap/decap-SFP
- RJ45 for Ethernet

10G and 12G bandwidth versions
BarnColor-4xSFP-Flex are available in two different variants and the difference is the upper maximum bitrate.
The options are maximum bitrate of 10G for 10Gbit/s Ethernet or 12G for 12G-SDI.
The 12G option is capable of transmitting 10Gbit/s Ethernet and is the most versatile of the two options.
