Fiber Camera Box 12G, SDI In/Out , Supports Single-Mode LC Optical Fiber
go to the technical sheet
  • New
₦ 1,460,011.17

₦ 1,358,149.93 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 146,001.12
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
Middle Things Fiber Camera Box 12G, SDI In/Out , Supports Single-Mode LC Optical Fiber

Two cables in one, made for efficiency and long distances
The Fiber Camera Box 6G merges these two cables into one single Optical fiber cable, which is more lightweight and much more reliable than traditional copper BNC cables since it is insensitive to all electromagnetic interferences.
You can run your fiber cable over thousands of miles with zero dropouts…. In 4K!

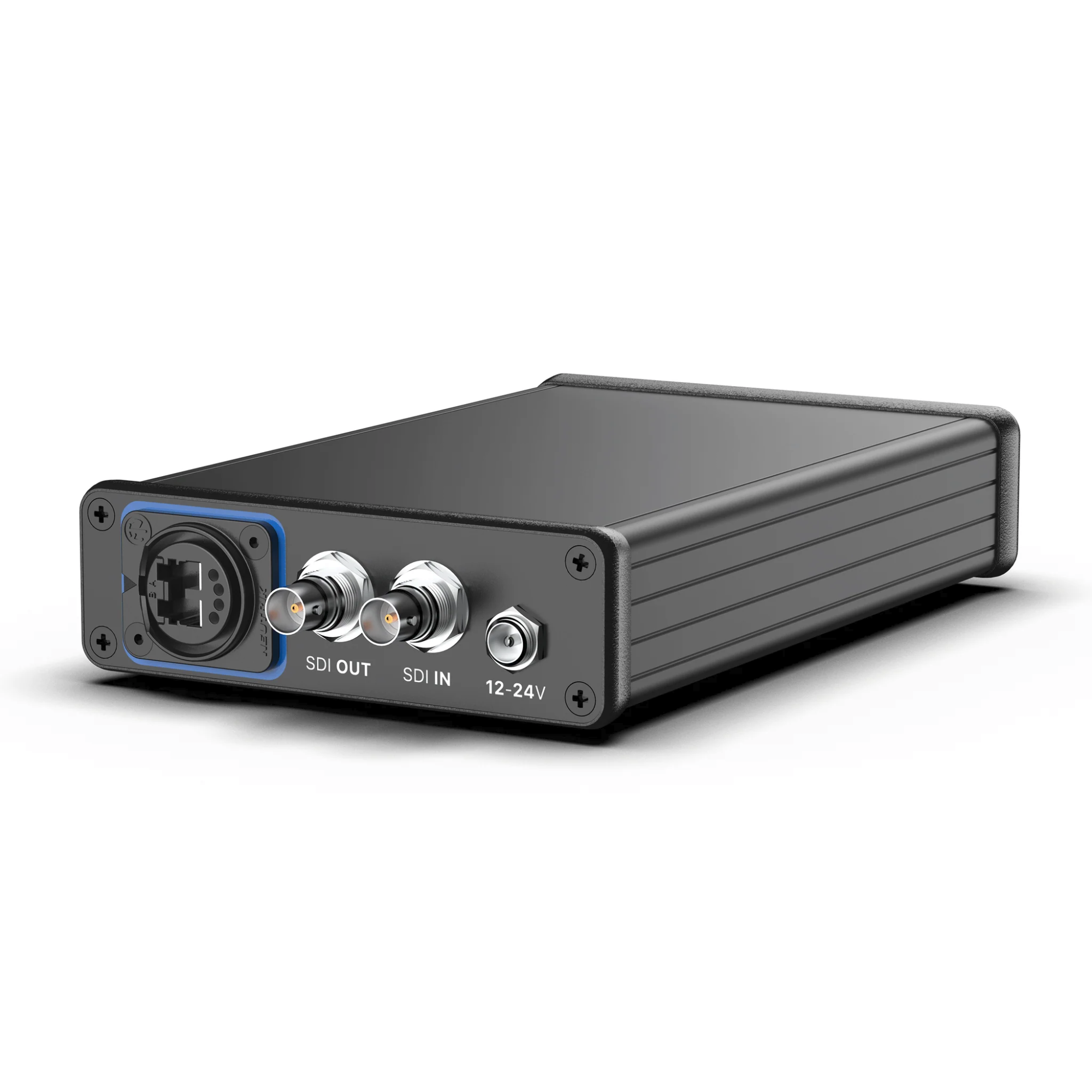

Rugged converter, designed for field use
The compact size and aluminum body of the converter makes it ideal for on-camera use. Featuring both an SDI Input and SDI Output, the camera operator can also receive the program video (or any other video) from the control room.
Since the Blackmagic Camera Control & Talkback protocol is also supported, it is the perfect companion for an URSA Broadcast , an URSA Mini or a Studio Camera 4K Pro.
A D-Tap to barrel 12V is included so that you can power the converter from your camera.

Industry standard & widespread fiber connector
The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling.
The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.

I/O connections: 12-24V DC IN , SDI IN , SDI OUT (up to 12G) , Neutrik OpticalCon Duo LC
Input Voltage : 12-24V DC
Power Consumption :
Fiber type : Single Mode
Length :18cm / 7.1 inch
Width : 10.5cm / 3.95 inch
Depth : 3.5cm / 1.2 inch
Weight : 360g / 0.79 lbs
Storage Temperature : 14 to 140°F / -10 to 60°C
Package Weight : 0.5kg / 1.1 lb
Box Dimensions (LxWxH) : 20cm x 14cm x 8cm | 7.87"x 5.5" x 3.1"

1x Fiber Camera Box 12G
1x DC 12v to DTAP cable
2x 15cm BNC Cables
1x Vlock mount adapter
