FIDO-2T-12G

Name: FIDO-2T-12G
Brand: AJA
SKU: FIDO-2T-12G
Price: 1928.67 EUR
Availability: InStock

AJA

AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

go to the technical sheet

€ 1.928,67

€ 1.794,11 VAT excl.

Available 1 unit in 4 Days

Manuale: Download

Not sure if this is the right product for you? Talk to a consultant

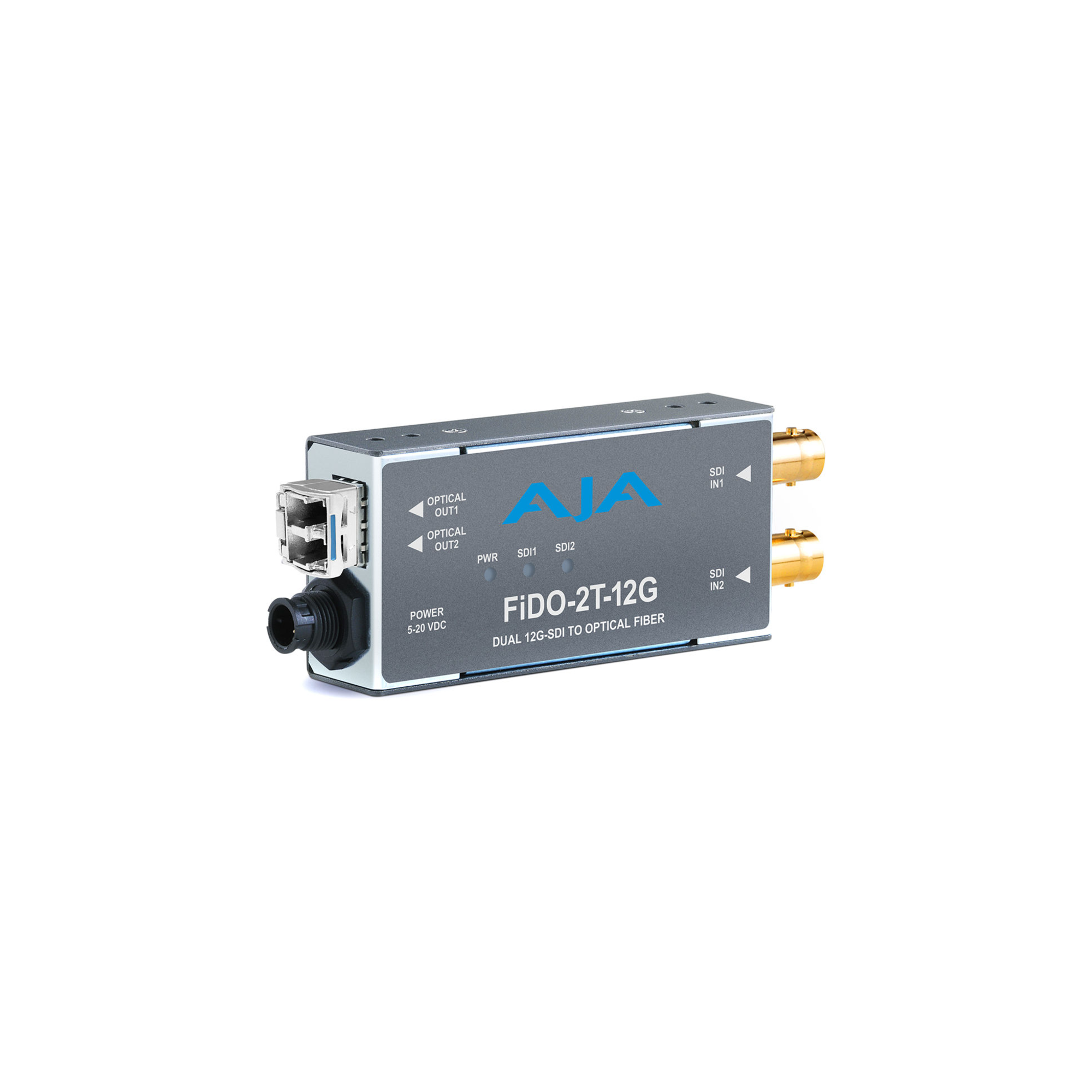

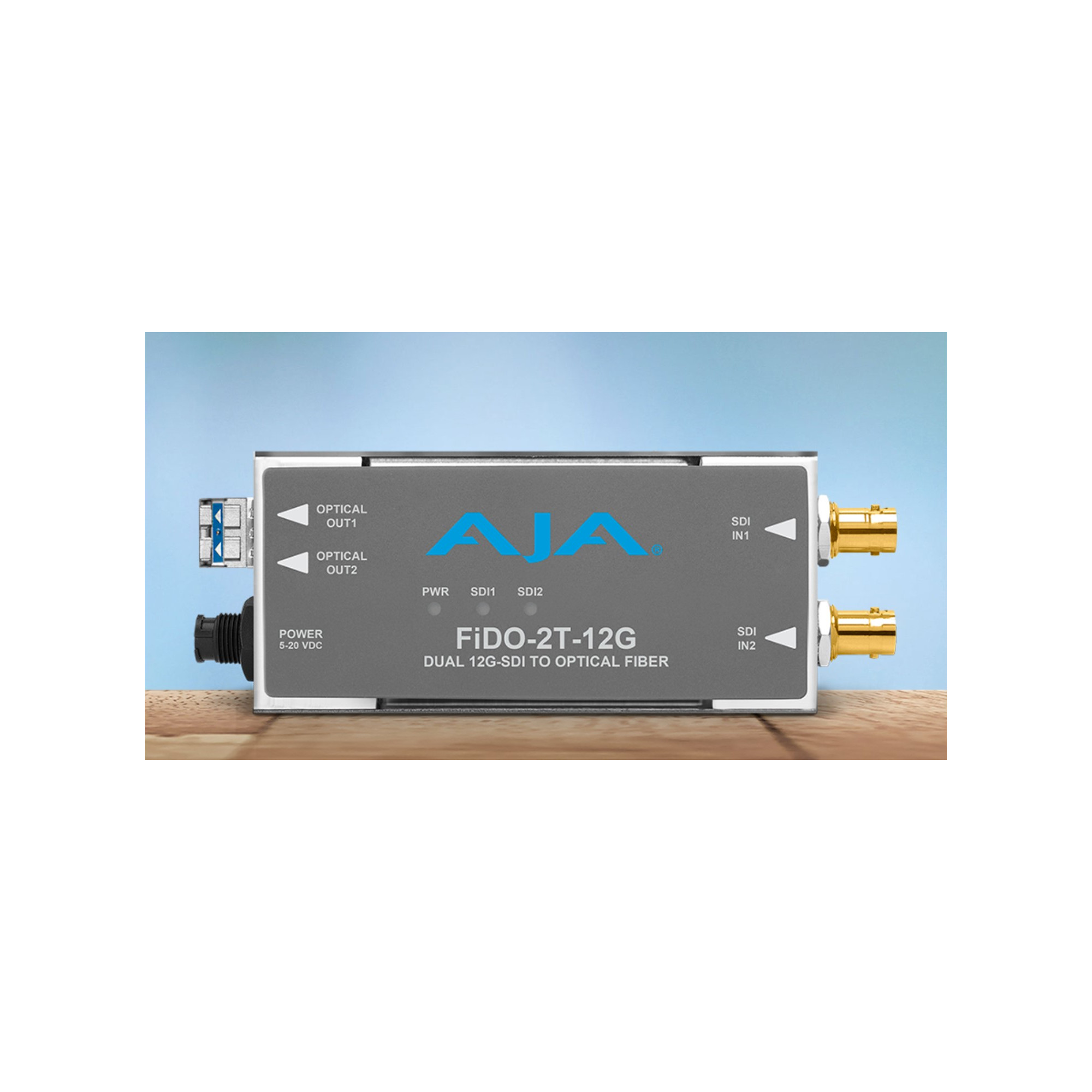

AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

FiDO-2T-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km over standard single-mode fiber optic cable.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

2 simplex or 1 duplex connection (LC connector)
2 independent channels of 12G-SDI inputs, which also support 6G/3G/HD/SD-SDI
Both SDI-to-Fiber paths are completely independent

Universal power supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig.

Download

Manuale

Download (1.91MB)

Device Type: Video extender
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: 12G-SDI
Data Transfer Rate: 11.88 Gbps
Optical Wave Length: 1260 / 1310 / 1360 nm
Max Transfer Distance: 6.2 miles
Interfaces
1 x network - LC single-mode female x 2
2 x 12G-SDI (input) - BNC female
Power Device: External power adapter
Voltage Required: DC 5 - 20 V
Power Consumption Operational: 3.5 Watt
Width: 4.6 in/ 12 cm
Depth: 1.7 in/ 4,32 cm
Height: 0.9 in/ 2,30 cm
Weight: 7.05 oz/ 200 g
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
