BarnMini - 22

Name: BarnMini - 22
Brand: Africa Broadcast Store Ltd
SKU: BarnMini - 22
Price: 1074012 NGN
Availability: OutOfStock

2 SFP+ ports for transceiver (TX/RX), Ethernet port for monitoring and control

go to the technical sheet

₦ 1,074,012.00

₦ 999,080.57 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

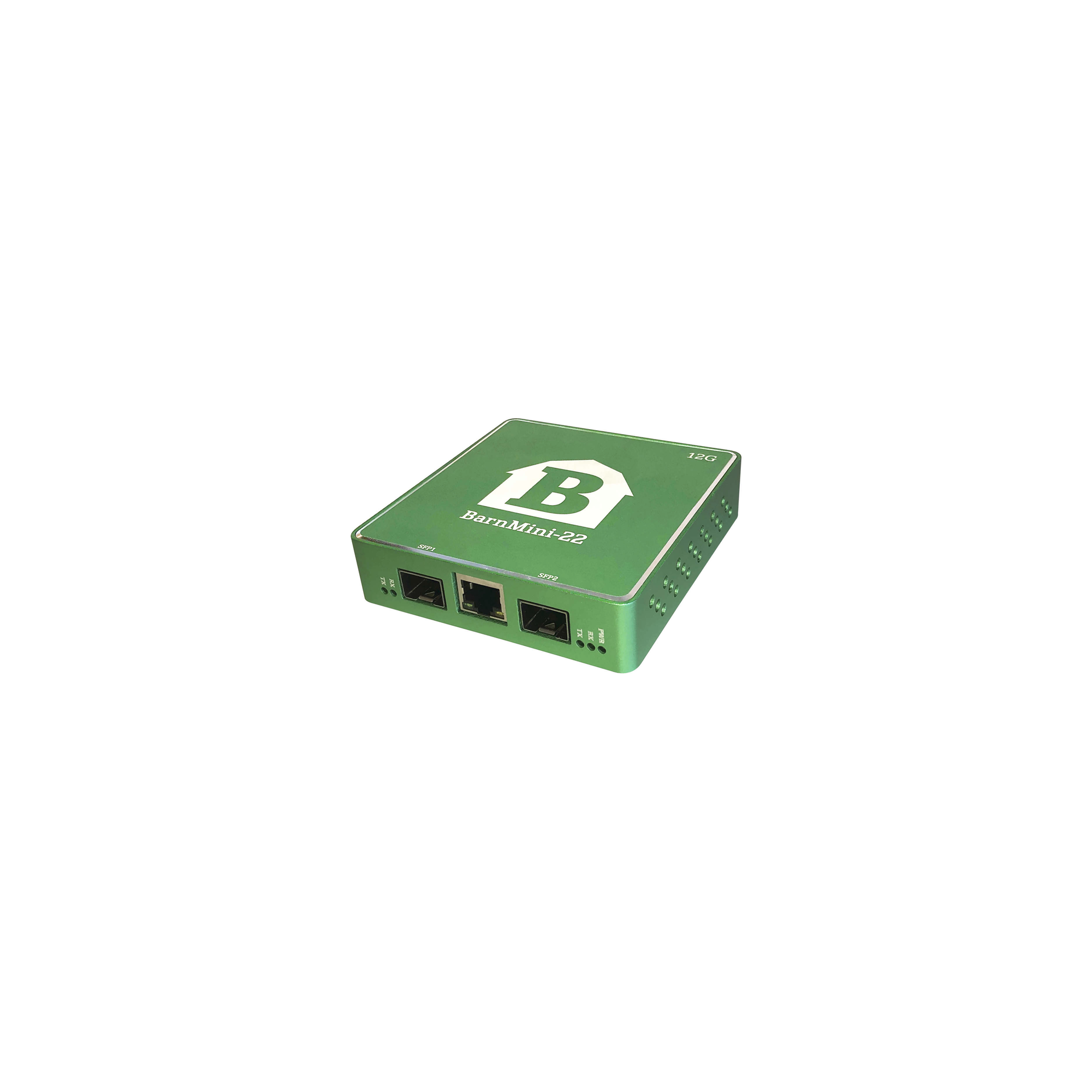

Barnfind 2 x SFP+ port for transceiver (TX/RX), Ethernet port for monitoring and control. up to 12G SDI and 10G Ethernet incl. PSU

The BarnMini series are made of robust materials in an elegant design. BarnMini-22 is the heir of BarnMini-02, increasing the maximum bandwidth up to 12G and adding remote monitoring via TCP/IP.
BarnMini-22 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections.

Electrical ports:
- 2x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant and non-MSA compliant, up to 12Gbps
- SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae
- Multirate reclocking of outputs 100Mbps - 12Gbps
- SFP modules are hot pluggable/swappable
- Single-mode, multi-mode or media-converter SFP modules
Control port:
- 1x RJ45 connector
- 10/100 Mbps Ethernet
Power supply:
- 12-24V DC, power supply included
- Redundant power supply available with BTF-Mini-16
Physical size:
- 92mm x 98mm x 22mm
- 200g

1x BarnMini - 22
