Pro Convert 12G-SDI 4K Plus

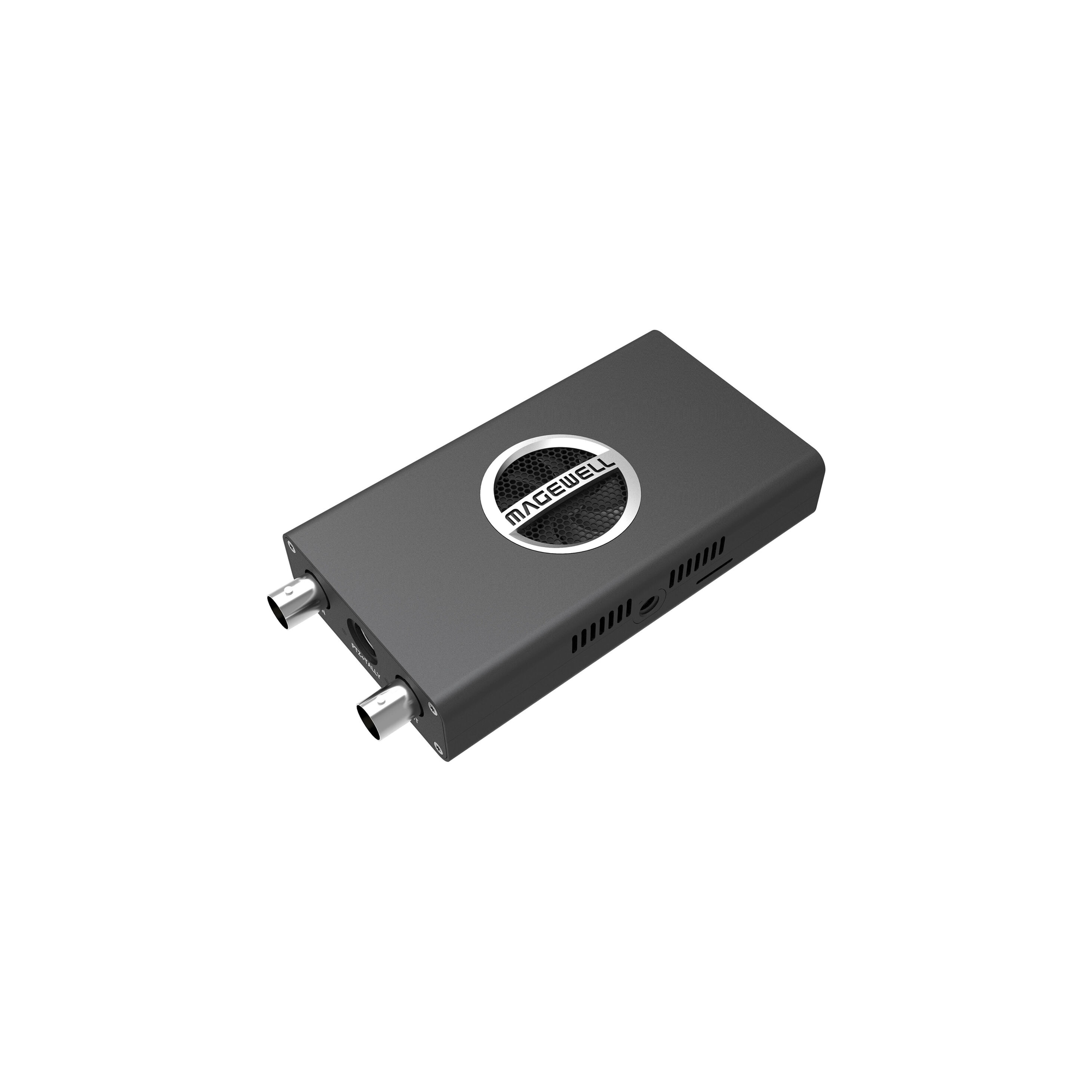

Magewell Pro Convert 12G-SDI 4K Plus

Convert 4K 12G-SDI video to an NDI stream with the Pro Convert 12G-SDI 4K Plus video signal converter from Magewell.
The Pro Convert 12G-SDI 4K Plus is a plug-and-play video converter that features one SDI input and one SDI loop-through output with eight channels of embedded audio, and it supports SDI input up to DCI 4K 4096 x 2160 video at 60 fps.
The RJ45 Gigabit Ethernet port supports encoded NDI output up to DCI 4K 4096 x 2160 8-bit 4:2:2 video at 60 fps.

The 12G-SDI loop-through output allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet.
The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs.
The LEDs also indicate power, output, and input signal status.

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port.
The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand.
Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

Convert 12G-SDI Video to NDI Stream
1 x 12G-SDI Input, 1 x 12G-SDI Loop-Out
1 x Gigabit RJ45 + PoE NDI Output
12G/6G/3G/HD/SD-SDI Supported
Input up to DCI 4K60 10-Bit 4:2:2 Video
NDI Encode up to DCI 4K60 8-Bit 4:2:2
1 x Mini DIN-8 for PTZ/Tally
