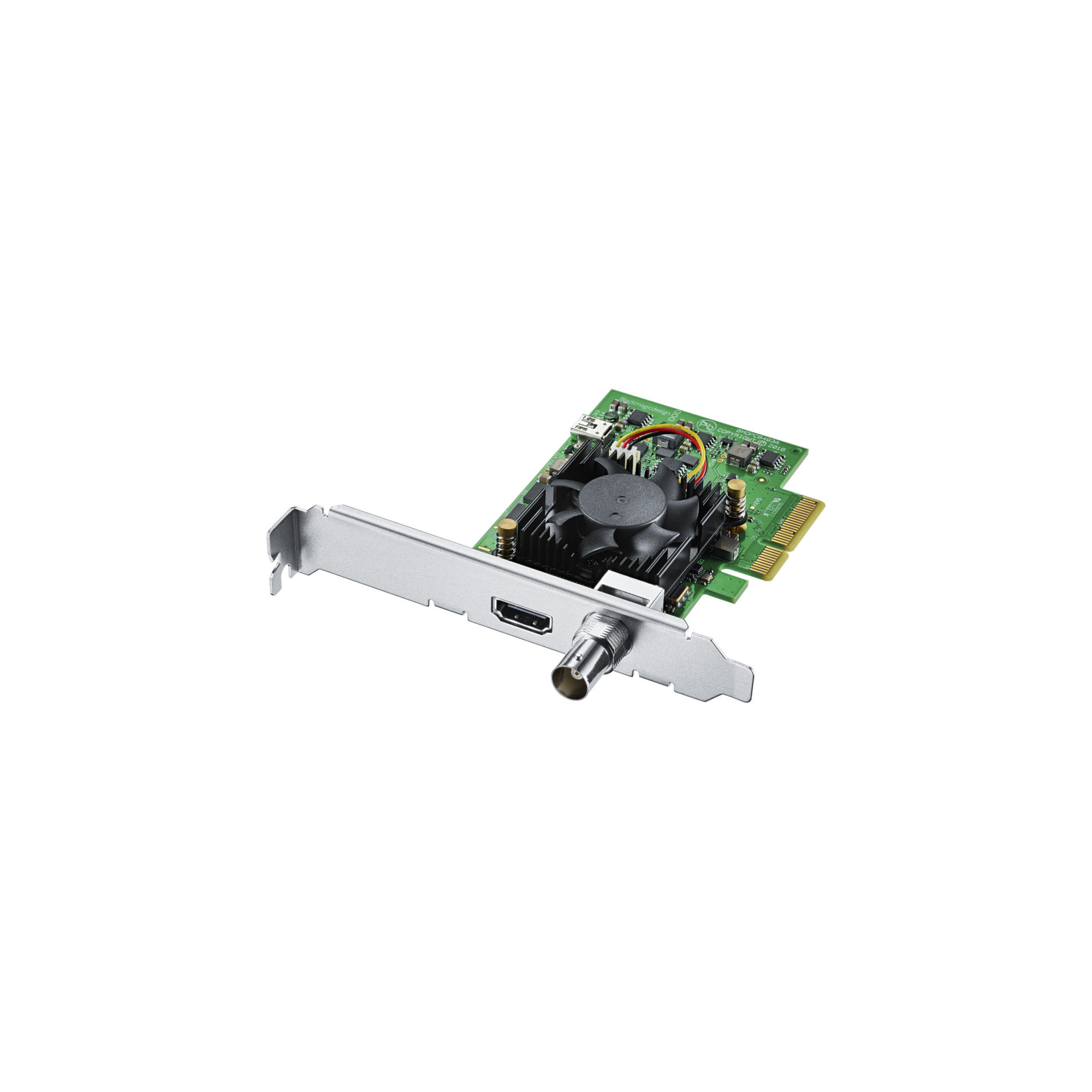

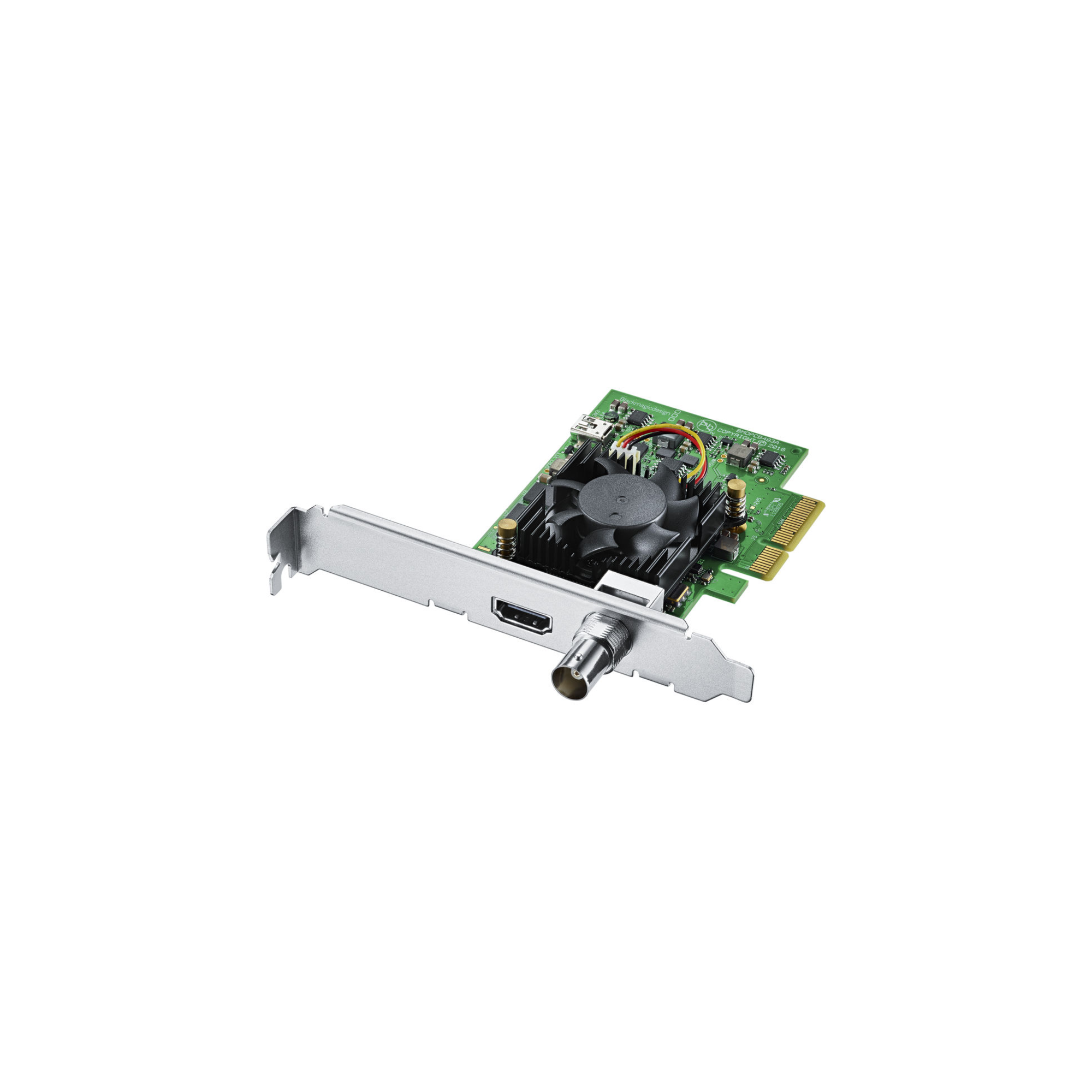

DeckLink Mini Recorder 4k

Connections
SDI Video Input : 1 x 10-bit SD/HD/Ultra HD switchable
SDI Audio Input : 16 channels embedded in SD, HD, Ultra HD.
HDMI Video Input : 1 x HDMI 2.0a connector.
HDMI Audio Input : 8 Channels embedded in SD, HD, Ultra HD.

Computer Interface
Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software
Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.

Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications
DaVinci Resolve
Fusion
Premiere Pro
Avid Media Composer
After Effects
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Photoshop
Media Express

Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.


Video Standards

SD Format Support
525i59.94 NTSC, 625i50 PAL

HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance
SMPTE 259M and 292M.

SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture using up to 3 lines of video in file. HD RP188 and closed captioning.

Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.

Video Sampling
4:2:2 Color Precision 10-bit

Color Space
REC 601, REC 709, REC 2020

HDMI Resolution
Pixel for pixel HD resolution input to connected device.
HDMI Color Precision 10-bit

Multiple Rate support
SDI and HDMI are switchable between standard definitlon and high definition.

Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux

EMC Certifications
FCC, CE and C-Tick

Physical Specifications
Environmental Specifications
Operating Temperature : 5° to 40° C (32° to 104° F)
Storage Temperature : -20° to 45° C (-4° to 113° F)
Relative Humidity : 0% to 90% non-condensing

What''s Included
DeckLink Mini Recorder 4K
Low profile slot bracket
SD card with software and manual

1x DeckLink Mini Recorder 4K
1x Low profile slot bracket
1x SD card with software and manual
