KONA-LHE+-R0

Name: KONA-LHE+-R0
Brand: AJA
SKU: KONA-LHE+-R0
Price: 2660239 NGN
Availability: OutOfStock

AJA

EAN: 892448000311

Single Channel SDI I/O Card, HD-SDI and SD-SDI up to 1080 30p / 720 60p

go to the technical sheet

₦ 2,660,239.00

₦ 2,474,640.58 VAT excl.

Available in 19 days

: Download

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

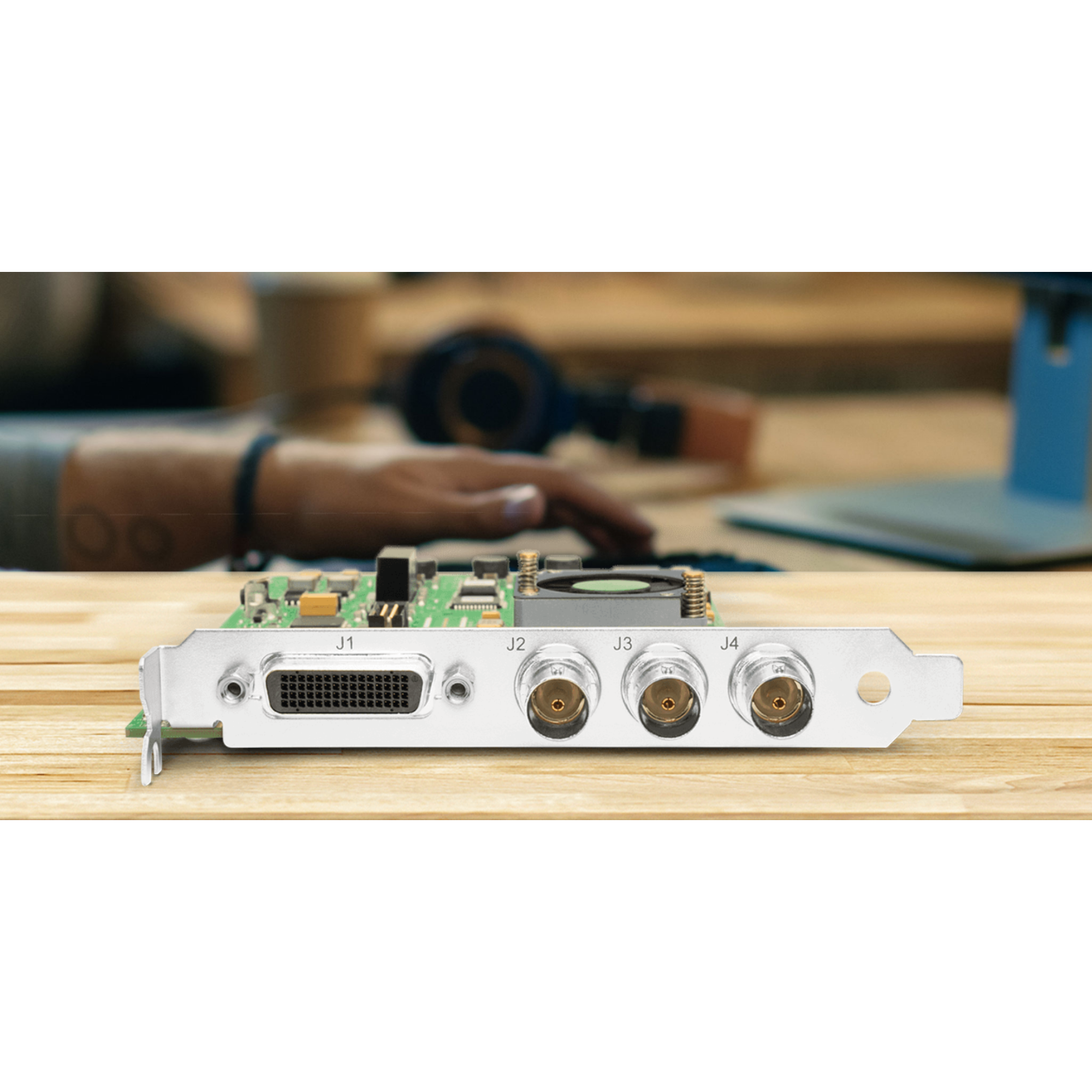

AJA Single Channel SDI I/O Card, HD-SDI and SD-SDI up to 1080 30p / 720 60p, 3 x 1.5G-SDI Connections (1x In, 2x Out) with 8 Channel Embedded Audio

Designed for broadcast, post and ProAV, as well as OEM developers, KONA Lhe Plus is a robust, cost efficient single-channel SDI I/O card with serial control, reference/LTC and analog video and audio.
KONA Lhe Plus features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support.
KONA Lhe Plus also enables simultaneous monitoring during capture (pass-through).

- HD-SDI and SD-SDI up to 1080 30p / 720 60p
- 3x 1.5G-SDI connections (1x In, 2x Out) with 8-channel embedded audio
- YCbCr 4:2:2 10-bit workflows supported
- 10-bit LUT support (.cube)
- Real time HD to SD down-conversion with pristine 10-bit quality
- Compatible with leading creative apps
- Includes support for Apple silicon
- Supports AES and Analog Audio I/O for Telecast Wirestream
- Included breakout cable for Ref (Analog Color Black or Composite Sync), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component, 2-ch analog audio I/O
- Extend external connectivity with KL-BOX-LH breakout box

Affordable Power
KONA Lhe Plus offers video professionals at all levels an affordable desktop I/O solution that doesn't compromise on quality or essential functionality.
KONA Lhe Plus supports both HD/SD analog and digital I/O for video and audio, providing maximum capability, simplifying integrating analog and digital signals into a single workflow and multiple output options to ensure you can deliver whatever formats are required.

Apple silicon Support
AJA Desktop Software is optimized for the latest Apple silicon with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, and AJA System Test.

Versatile I/O
With support for 10-bit or 8-bit uncompressed video, KONA LHE Plus features one input and two outputs which can be configured independently for HD or SD.
KONA Lhe Plus also includes 2-channel AES digital audio, 8-channel SDI embedded digital audio, analog composite/S-video/SD/HD component video I/O, 2-channel balanced analog audio I/O, Genlock input, and three BNCs which may be configured for analog video input and output (HD or SD).

Unique analog workflows
Because KONA Lhe Plus supports 12-bit analog compontent HD input and output, devices with analog HD output, such as analog VTRs and game consoles, can be connected for a variety of workflows.

RS-422
A 9-pin RS-422 connection available on either the included breakout cable or the optional KL-Box-LH breakout box, allows KONA Lhe Plus to take control of external devices for frame accurate ingest and layoffs.

AJA Hardware Conversion
KONA Lhe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output.
The down-converter allows KONA Lhe Plus to connect to analog SD devices for output.
This can be used to check framing and color for SD versions while still working in full resolution HD within your application, ensuring proper quality for multi-format deliveries.
Since conversion is hardware-based, it's available all the time - during ingest or playback.

Download

Download (0)

Video Formats
_______________________
- (HD) 1080i 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94

Video Input Digital
_______________________
1.5G-SDI, SMPTE 292M
Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
YCbCr 4:2:2 10-bit, 8-bit

Video Output Digital
_______________________
1.5G-SDI, SMPTE 292M
Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
YCbCr 4:2:2 10-bit, 8-bit

Video Input Analog
_______________________
Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit A/D, 8x oversampling
+/- .2 dB to 5.0 MHz Y Frequency Response
+/- .2 dB to 1 MHz C Frequency Response
.5% 2T pulse response
<1% Diff Phase
<1% Diff Gain
<1 ns Y/C delay inequity

Video Output Analog
_______________________
Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
+/- .2 dB to 5.0 MHz Y Frequency Response
+/- .2 dB to 1 MHz C Frequency Response
.5% 2T pulse response
<1% Diff Phase
<1% Diff Gain
<1 ns Y/C delay inequity

Audio Input Digital
_______________________
- 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Audio Input Analog
_______________________
2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
+24 dBu full scale digital
+/- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital
_______________________
- 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Audio Output Analog
_______________________
2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 Hz to 20 kHz frequency response
2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)

Down-Conversion
_______________________
- Hardware 10-bit
- Anamorphic: fullscreen
- Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
- Crop: image is cropped to fit new screen size

Reference Input
_______________________
- Analog Color Black (1V) or Composite Sync (2 or 4V)
- Looping
- 75 ohms on optional KL-Box, terminated on supplied breakout cable

Electrical Interface
_______________________
4-lane PCIe 1.0

Environment
_______________________
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)

General
_______________________
Power: 13W typical, 15W maximum
Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
Weight: 0.7 lb (0.4 kg)
