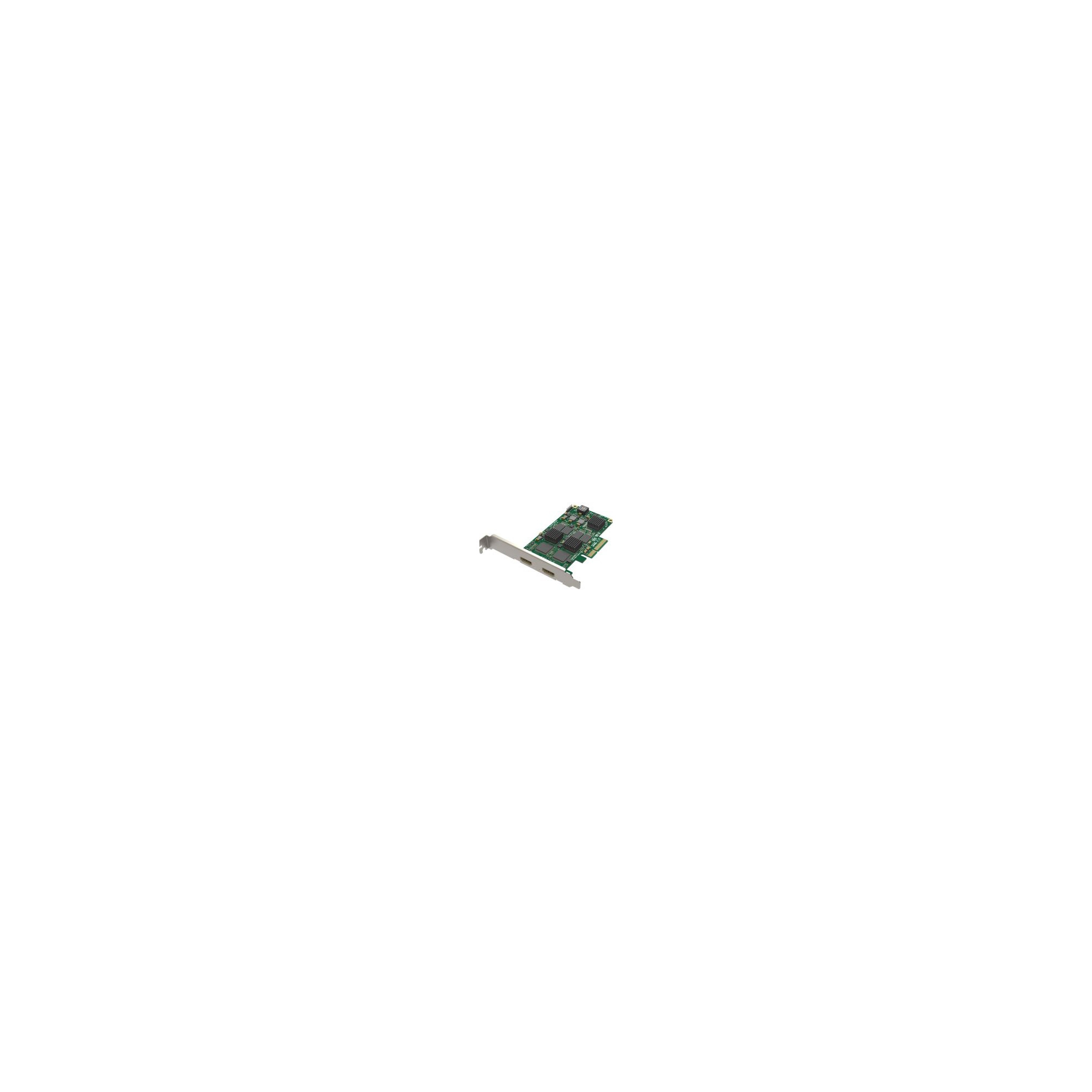

Pro Capture Dual HDMI

INPUT INTERFACES
- 2x HDMI type A
* DVI 1.0
* HDMI 1.4a

HOST INTERFACE
- PCIe Gen2 x4

INPUT FEATURES
- Support for input video resolutions up to 2048×2160 pixels

HDMI SPECIFIC FEATURES
- 225MHz HDMI receiver
- Adaptive HDMI equalizer support for cables lengths up to 30M
- Support for customized EDID
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 8/10/12-bit color depths
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for up to 8-channel IEC60958/IEC61937 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for extraction of Sony/Canon DSLR time code
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

VIDEO CAPTURE FORMATS
- Support for capture image resolutions up to 2048x2160 pixels
- Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280×1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = 80fps. )
- Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
- Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- Support for 4:4:4 10-bit capture formats: V410, Y410
- More capture formats are supported via Magewell Capture SDK for DirectKS

VIDEO PROCESSING FEATURES
- Two video processing pipelines with 180Mpixels/s processing bandwidth for each one
- Full 10-bit video processing
- Video cropping
- Video scaling
- Video de-interlacing
* Weave
* Blend top & bottom field
* Top field only
* Bottom field only
- Video aspect ratio conversion
* Auto or manual selection of input aspect ratio
* Auto or manual selection of capture aspect ratio
* Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
- Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of capture color format, quantization range & saturation range
* Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut'' saturation range
- Video frame rate conversion
- Video OSD composition
* Support for PNG OSD image (up to 2048×2160)
* Support for dynamic loading of RGBA OSD image via SDK

MULTIPLE CARDS PER SYSTEM
- Support for multiple cards plugged to one system
- On-board rotary switch to set card number, with 16 positions from 0 to F
- System hardware device tree will display "01: Pro Capture Dual HDMI" when rotary switch is set to 1, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)

MULTIPLE CAPTURE STREAMS
- Unlimited capture streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

ULTRA LOW LATENCY SUPPORT
- Latency of 64 video lines
- Partial notification mode in SDK

FORM FACTOR
- Low profile PCIe x4 Add-on Card
- 115.99×68.88 mm (without PCI bracket)

ACCESSORIES
- Low Profile Bracket

POWER CONSUMPTION
- High Performance Firmware
* Max current at 12V: 0.69 A
* Max current at 3.3V: 0.27 A
* Max power consumption: 9.09 W
- Low Power Consumption Firmware
* Max current at 12V: 0.61A
* Max current at 3.3V: 0.27 A
* Max power consumption: 8.13 W
