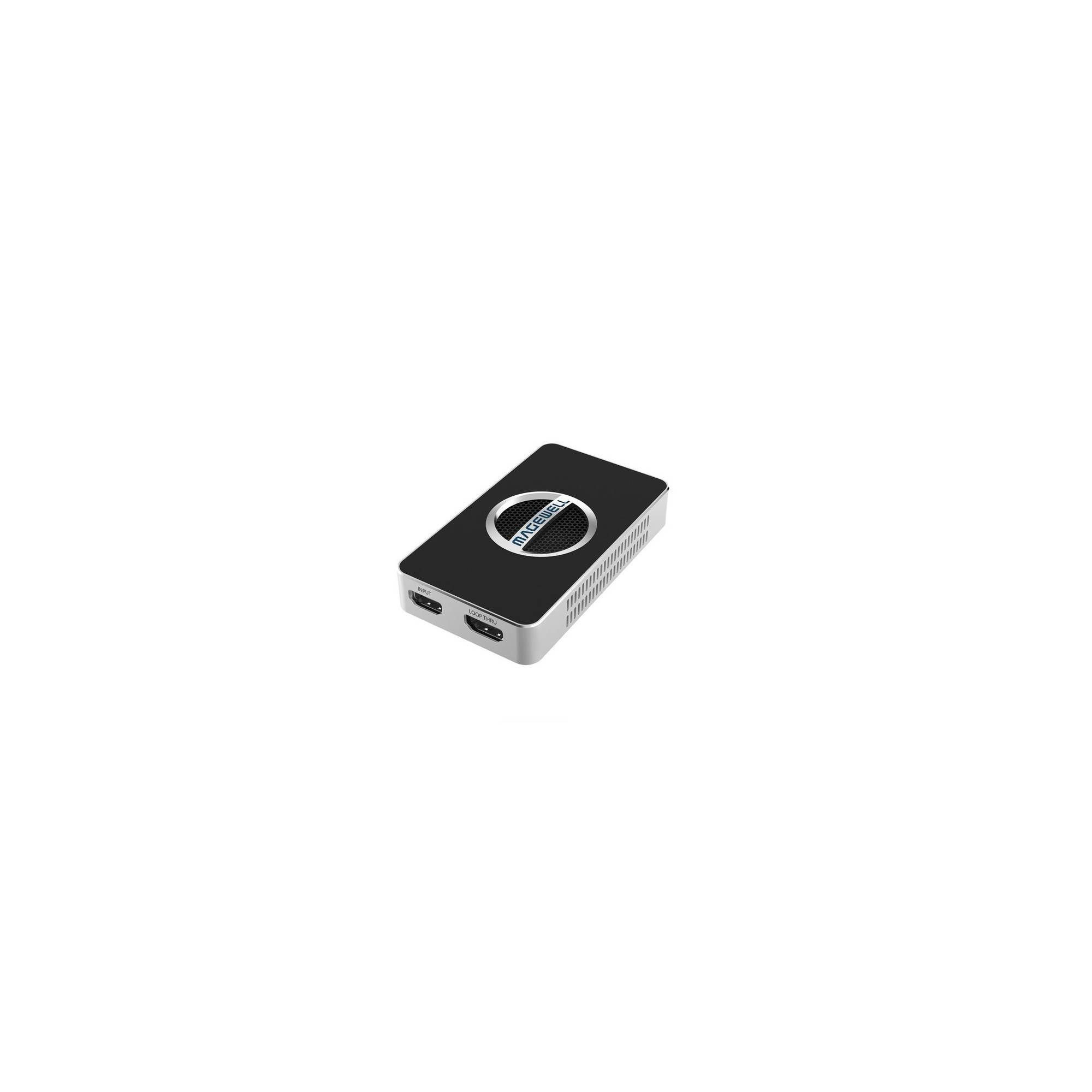

USB Capture HDMI 4K Plus

Supported Operating Systems
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64)
OS X 10.9 - 10.11
macOS 10.12
Linux x (Ubuntu 12.04 - 16.10, CentOS 7)
Chrome OS

Input Resolution
Up to 4096 x 2160, 4:4:4, 60 fps input signals
Supported Sampling Rate RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Input
1 x HDMI 2.0
1 x 3.5 mm audio jack
Output
1 x HDMI loop-output
1 x 3.5 mm audio jack
Host Interface 1 x USB 3.0 (compatible with USB 3.1 Gen 1, USB 2.0)

Video Capture Formats : Up to 4096 x 2160
Frame rates: up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency
Typical capture frame rates on the Intel USB 3.0 controller are:
1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)
NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
Default capture formats are: YUY2 and NV12

Supported APIs Windows:
DirectShow
Wave API/DirectSound/WASAPI

Linux:
V4L2
ALSA

OS X/macOS
QuickTime
AV Foundation
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

Power
Power supply: 5V
Power Consumption Max Current: 1.4 A
Max Power Consumption: 7 W

Enviroment
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Relative Humidity 5 to 90% non-condensing

Fisical
Dimensions : 9.8 x 5.7 x 1.7 cm (3.9 x 2.2 x 0.7")

Packaging Info
Package Weight: 238 g (0.525 lb)
Box Dimensions (LxWxH): 137 x 134 x 25,4 mm ( 5.4 x 5.25 x 1")

1x USB Capture HDMI 4K Plus
1x USB 3.0 Cable
