Sony

4548736141759

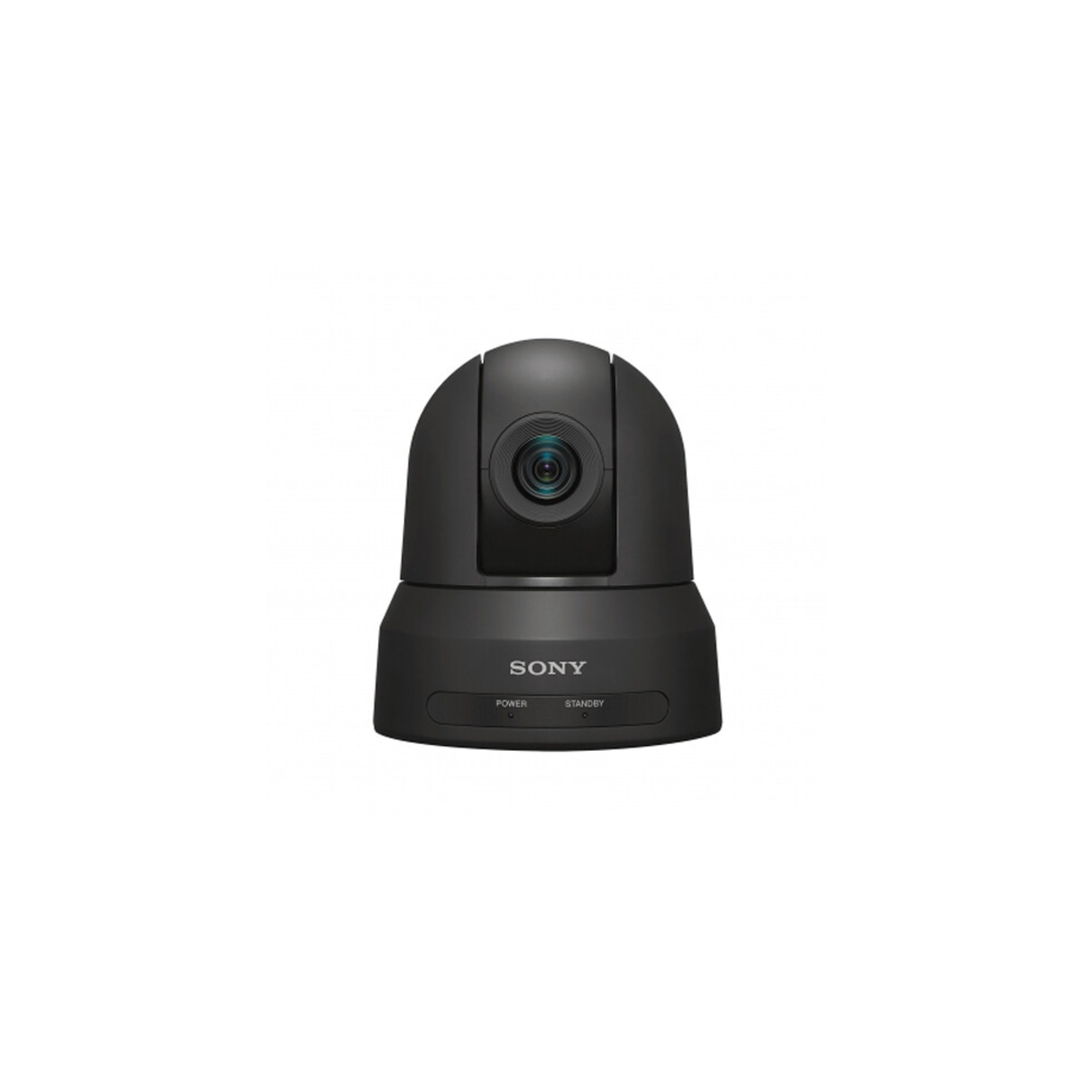

Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (Black)
go to the technical sheet
€ 2.540,86

€ 2.363,59 VAT excl.

Available in 14 days
Manuale: Download
Not sure if this is the right product for you? Talk to a consultant
Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (Black)

Capture all the details of your meetings and lectures with the black SRG-X40UH 4K PTZ Camera from Sony.
This camera captures video at resolutions up to UHD 4K30 via HDMI and up to 1080p60 via USB.
The SRG-X40UH camera is equipped with an 8.5MP CMOS sensor and a 4.4-88mm lens with a wide 70° field of view.
Clear Image Zoom Technology can extend the 20x optical zoom up to 40x, enabling frame-filling close-ups in 1080p.

The integrated pan/tilt system offers 340° panning and 110° tilting at up to 300° and 126° per second respectively.
Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI and USB-C interfaces.
PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection and a single cable.
An IR remote commander, mounting hardware, and an HDMI clamp are included with the camera.

4K30 Imaging
° Output clear, detailed video at resolutions up to UHD 4K30 via HDMI and up to 1080p60 via the USB-C port

Optimal Imaging
° The 1/2.5" Exmor R sensor captures optimal, low-noise images even in dimly lit environments down to 1.6 lux

Wide Viewing Angle
° The horizontal angle of view of 70° captures your whole meeting or lecture

Versatile Zoom
° A 20x optical zoom with up to 40x Clear Image Zoom in HD and up to 30x CIZ in UHD 4K enables you to get detailed, sharp close-ups of any your participant

Day/Night Function
° The Day/Night functions automatically switches between full-color Day mode and black and white Night mode and offers boosted sensitivity for seeing in almost complete darkness

Hi-Speed Movement
° Pan moves at rates up to 300°/second, up to 126°/second tilt, and Picture Freeze Presets enable you to quickly and accurately capture your presenter's movements

Simple Setup
° Mounts easily on a desktop or from the ceiling
° Simple UVC or HDMI video connection
° Uses PoE+ support and VISCA/VISCA over IP to enable a single-cable LAN setup

ATEM Mini PRO
Blackmagic

ATEM Mini PRO

€ 370,60 VAT included
Available 2 unit in 4 Days
SC302
Sachtler

SC302

€ 472,81 VAT included
Available in 64 days

Download

Manuale

Download (5.45MB)

Imaging
Image Sensor: 1/2.5"-Type CMOS
Horizontal Resolution (TV Lines): 1700 TV Lines
Sensor Resolution
° Effective: 8.5 Megapixel
IR Cut Filter: Yes
Built-In ND Filter: None
Image Stabilization: Digital
Focus Control:
° Autofocus
° Manual Focus

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Speed: 1/10000 to 1 Second
Gain: 0 to 48 dB
Minimum Illumination: 1.6 Lux at 1/30 Shutter Speed
Flip / Mirror Support: Image Flip
White Balance:
° Presets: Auto, Indoors, Manual, One Push, Outdoors

Lens
Focal Length: 4.4 to 88mm
Optical Zoom Ratio: 20x
Max Digital Zoom: 30x ( in UHD 4K)
Field of View
° Horizontal: 70°
Maximum Aperture: f/2 to 3.8
Minimum Focus Distance
° Wide: 3.1" / 8.0 cm
° Telephoto: 31.5" / 80.0 cm

Video Capture
External Recording Modes:
° 4:4:4 8-Bit via HDMI
° UHD 4K (3840 x 2160) at 25/29.97 fps
° HD (1920 x 1080p) at 25/29.97/50/59.94 fps
° HD (1920 x 1080i) at 50/59.94 fps
° 1280 x 720 at 50/59.94 fps
° USB
° HD (1920 x 1080p) at 25/29.97/50/59.94 fps
° HD (1920 x 1080i) at 50/59.94 fps
° 1280 x 720 at 50/59.94 fps
Embedded Audio
° USB: 2-Channel
° HDMI: 2-Channel
Broadcast Output: NTSC/PAL

Control
Presets: 100 via VISCA
Move Speed
° Pan: 0.5 to 300°/sec
° Tilt: 0.5 to 126°/sec
Movement Range:
° Pan: 340° (-170 to 170°)
° Tilt: 110° (-20 to 90°)
Tally Light: No
Supported Control Protocols:
° RS-422
° VISCA

Interface
Video I/O:
° 1 x HDMI Output
° 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O:
° 2 x 1/8" / 3.5 mm TRS Stereo Mic/Line (Plug-in Power) Input
Other I/O:
° 1 x RJ45 (RS-422, VISCA) Input
° 1 x RJ45 (RS-422, VISCA) Output
° 1 x RJ45 (LAN, VISCA)

Power
PoE Support: PoE+ 802.3at
Power I/O: 1 x Barrel (10.8 to 13.2VDC) Input
Power Consumption:
° PoE: 25.5 W
° Power Supply: 23.8 W

Environmental
Operating Temperature: 32 to 72°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C

General
Mounting: 1 x 1/4"-20 Female for Tripod
OS Compatibility:
° Windows 10 to 11 (64-Bit Only)
macOS 10.15
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Sound Level: NC30
Dimensions: 7.9 x 7 x 6.2" / 200.2 x 177.5 x 158.4 mm
Weight: 4.0 lb / 1.8 kg

Packaging Info
Package Weight: 7.43 lb/3.37 kg
Box Dimensions: 13.2 x 13 x 12.1"/34 x 33 x 31 cm

Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (Black)
AC Power Adapter
IR Remote Commander
2 x Ceiling Brackets
Wire Rope
9 x M3x8 Mounting Screws
M2.6x6 Screw (Black)
HDMI Cable Clamp
