SD530H

Name: SD530H
Brand: Bolin
SKU: SD530H
Price: 11281800 NGN
Availability: OutOfStock

Bolin

EAN: 6973775122250

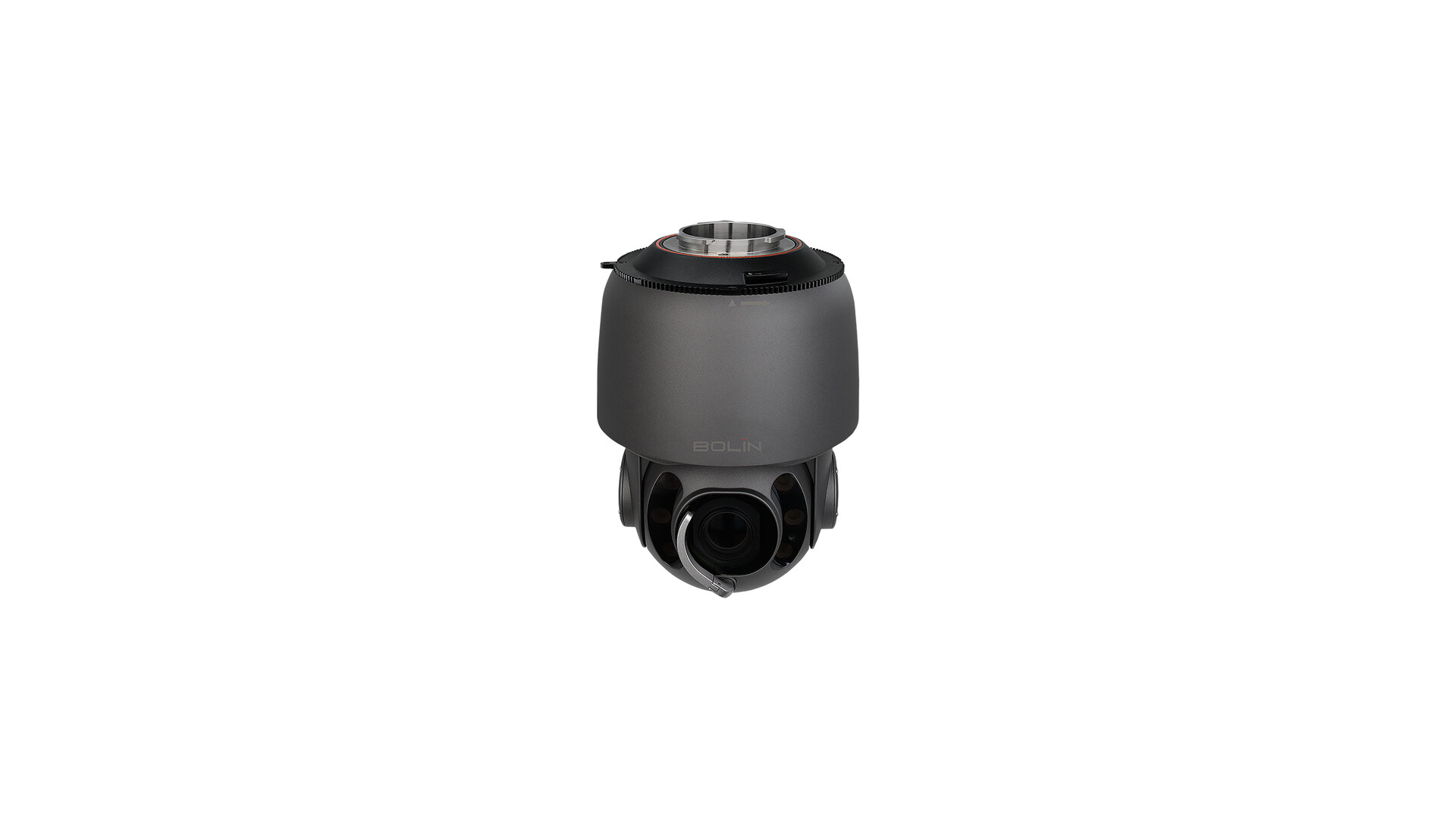

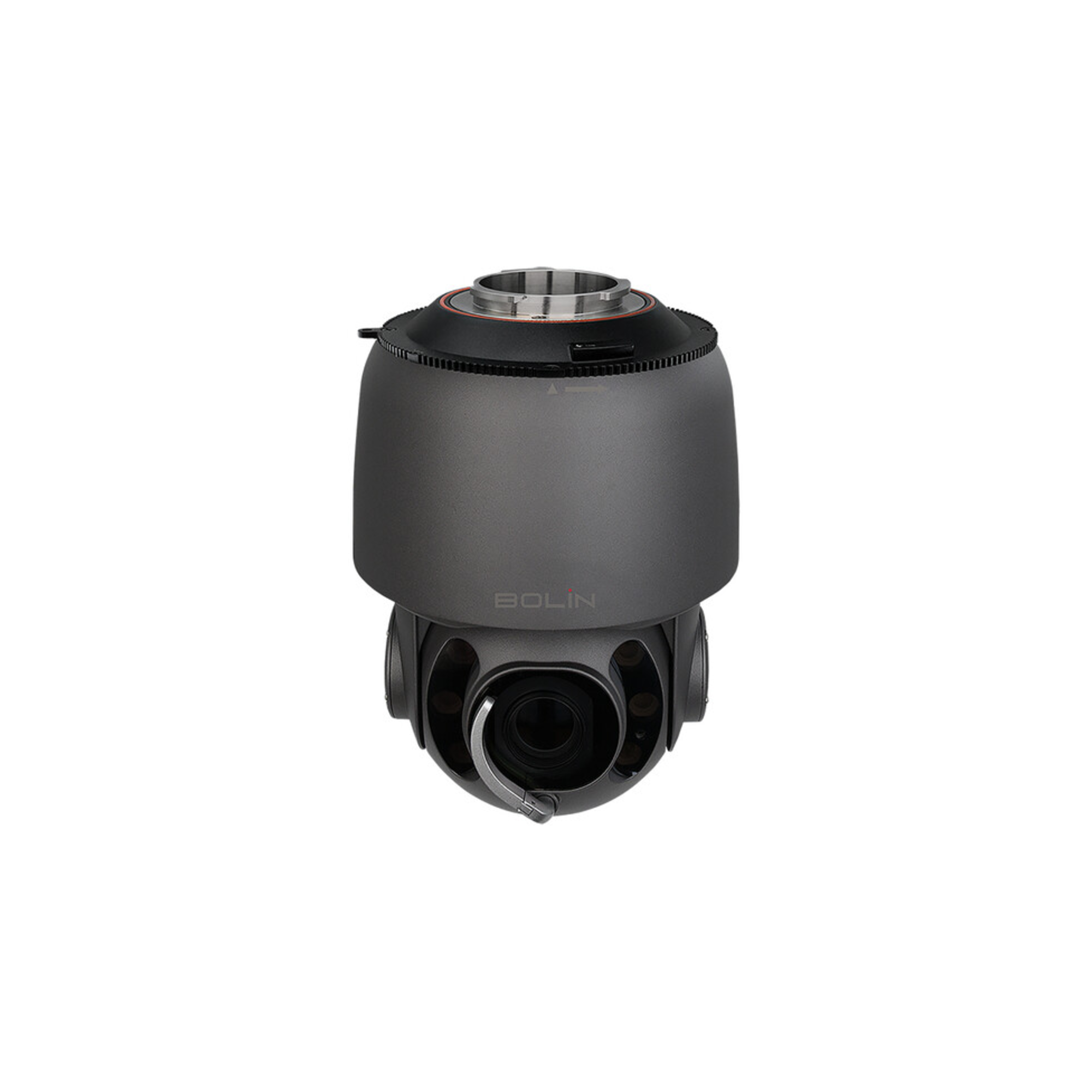

External 3G-SDI PTZ camera, 1/2.8" STARVIS CMOS sensor, 30x zoom

go to the technical sheet

₦ 11,281,800.00

₦ 10,494,697.40 VAT excl.

Available in 19 days

: Download

Not sure if this is the right product for you? Talk to a consultant

Bolin Technology SD530H Outdoor 3G-SDI PTZ Camera, 1/2.8" CMOS STARVIS Sensor, 30x Optical Zoom, 12x Digital Zoom, IP67 Rated / Wiper / Corrosion-Resistant

The SD530H Outdoor 3G-SDI PTZ Camera from Bolin Technology is optimized for outdoor surveillance or traffic monitoring applications while producing clear broadcast-quality, simultaneous dual-output 1080p60 3G-SDI and IP video in inclement weather conditions.
With 30x optical zoom and 12x digital zoom, along with numerous image parameters, the camera can be controlled through a local or IP environment using LAN, RS-422, or RS-485 connections.
Low-latency mode, advanced autofocus, a wide dynamic range, a built-in visibility enhancer, and a built-in stabilizer also ensure high-quality broadcast in H.264, H.265, or MJPEG formats. Outdoor enhancements include a reinforced rain wiper, corrosion-resistant coating, a secure pendant mount, and a locking safety chain.
Power to the device can be provided with either an AC or DC 24V power adapter or via a PoE++ connection.

- Updated Sony 1/2.8" CMOS STARVIS II sensor
- 30x optical zoom range, 12x digital zoom
- Up to 1080p60 resolution via IP and 3G-SDI output
- RTSP, RTMP, SRT Supported
- Visca-over-IP, ONVIF, FreeD, Serial control supported
- FreeD control protocol enabled
- High performance in extremely low light
- Image stabilizer
- Weatherproof IP67 rated
- Reinforced rain wiper, heater
- Advanced AF performance
- Wide dynamic range (Wide-D)
- Visibility Enhancer (VE)
- Optional breakout cable available separately

Download

Download (0)

Imaging
____________________
Image Sensor: 1/2.8"-Type CMOS
Sensor Resolution: Effective: 2.13 Megapixel (1920 x 1080)
Built-In ND Filter: No
Image Stabilization: Integrated Gimbal
Focus Control:
- Autofocus
- Manual Focus

Exposure Control
____________________
Shutter Speed: 1/10000 to 1/1 Second
Flip / Mirror Support: Image Flip, Mirror (Vertical)
White Balance: Presets: One Push, One Push Set, Outdoors, Manual, ATW, Auto

Lens
____________________
Focal Length: 4.3 to 129mm
Optical Zoom Ratio: 30x
Max Digital Zoom: 12x
Field of View: Horizontal: 64 to 2.4°
Maximum Aperture: f/1.6 to 4.7
Minimum Focus Distance:
- Wide: 0.4" / 1.0 cm
- Telephoto: 47.2" / 120.0 cm

Video Capture
____________________
External Recording Modes: SDI/BNC / RJ45: 1920 x 1080p
Embedded Audio: LAN (RJ45)/SDI
Broadcast Output: NTSC/PAL
IP Streaming: H.264, H.265: 1280 x 720 to 1920 x 1080
IP Multi-Stream Support: Simultaneous: H.264, H.265: 480p, 360p at 25p, 30p, 50p, 60p

Control
____________________
Presets: 255
Move Speed: 150°/sec
Movement Range:
- Pan: 360°
- Tilt: 120° (-90 to 30°)
Supported Control Protocols: IP | ONVIF Profile S | Pelco-D | Pelco-P | VISCA

Interface
____________________
Video I/O:
- 1x BNC (3G-SDI) Output
- 1x RJ45 LAN Input/Output
Other I/O:
- 1x RJ45 (RS-422) Control Input/Output
- 1x Block 3-Pin Input/Output
Built-In Speaker: No

Power
____________________
PoE Support: PoE++ 802.3bt
Power I/O: 1x Proprietary (24VDC) Input
Power Consumption:
- Device: 55 W with Heater
- Device: 30 W

General
____________________
Mounting: 1x Proprietary for Ceiling
Certifications: CE, FCC, IC, UL, CCC, RoHS, WEEE
Dimensions (W x H x D): 8.3 x 11.7" / 212 x 297 mm
Weight: 11.5 lb / 5.2 kg (Gimbal)
