Seetec

6971863817385
21.5" portable monitor for transport, high brightness 1000nit Full HD 1920x1080
go to the technical sheet
€ 748,66

€ 696,43 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

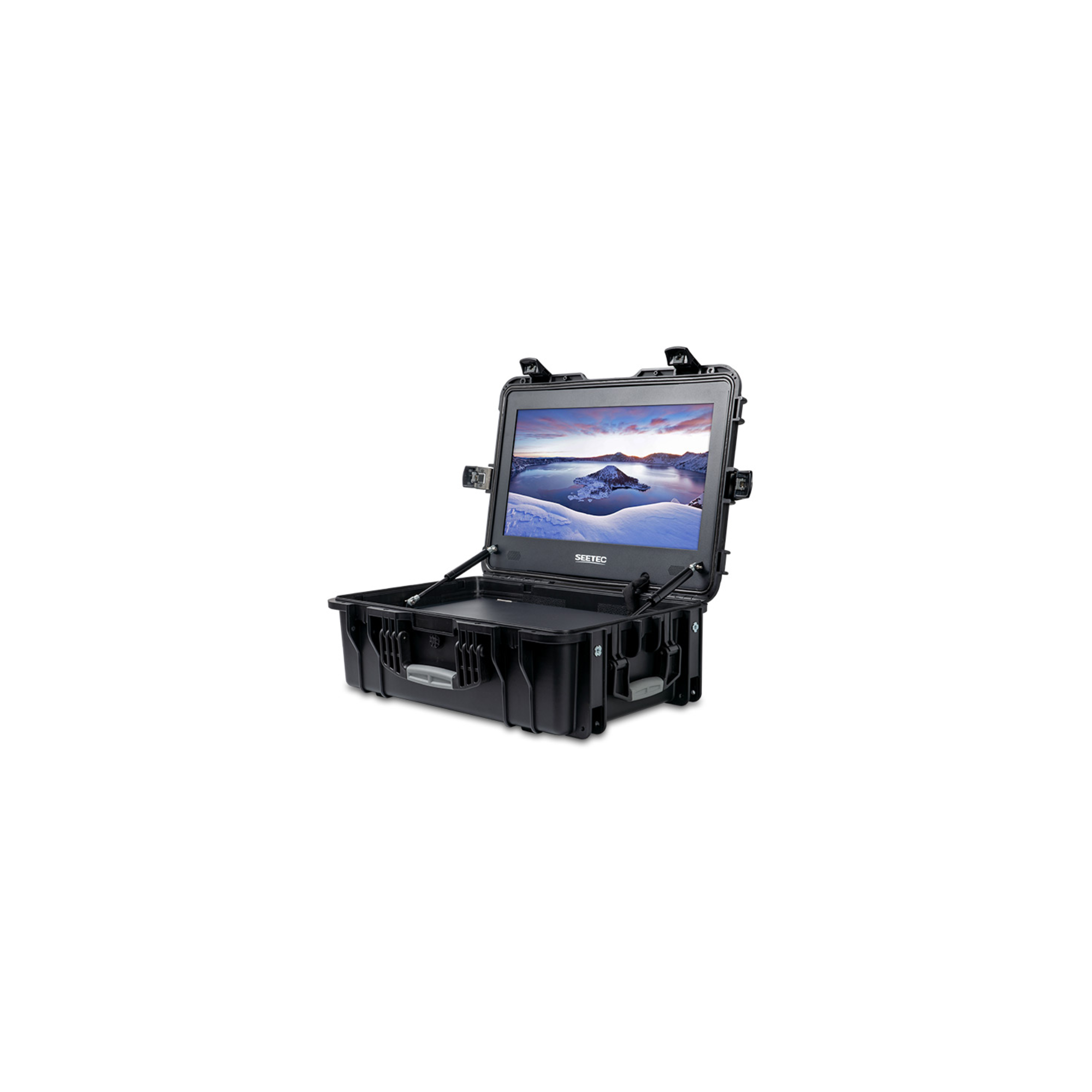

Seetec 21.5" 1000nit High Bright Portable Carry-on Director Monitor Full HD 1920x1080

° 21.5-inch High Bright Portable Director Monitor
Monitor is an indispensable equipment for locating filming. The environment is harsh of outdoor, and the equipment moves frequently.
If there is a monitor with portable, waterproof, dust-proof and high temperature resistance, it will be perfect.
SEETEC WPC215 can be done! The important is that the panel integrated with the PP alloy protective case. For various harsh filming environments, WPC215 can easily handle it.

° Full HD IPS Panel
With extremely high resolution IPS panel, provides excellent details;covers 72% NTSC color space, accurately reflect the original colors.

° 1000nits, Daylight Viewable
Backed by 1000nits of brightness, WPC215 isn't afraid to get a little sun.
Easily adjust the monitor brightness to fit your filming environment,especially suitable for outdoor filming in crew.

° Load Custom 3D LUTs,Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles.
Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32).

° Dual HDMI + SDI Input and Output, Meet More Selection
The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera.
And loop-out to other device via output port,realize multi person simultaneous monitoring.For audio, WPC215 provides two speakers and one 3.5mm earphone jack.

° Multiple Power Supply,Long-lasting Power Shooting
The monitor offers 12V DC power interface, XLR connector (can be use 4A power adapter) and 2 V-mount battery plates for options.
Provide strong power for outdoor filming.
*Note: the battery not including

- 21.5-inch 1920x1080 full HD large screen
- Portable waterproof case, easily cope with various harsh shooting environments
- 1000nits high brightness, ideal choice outdoor shooting
- Flexible and intuitive button operation, easy to use
- Custom 3D-LUT, preview film look
- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
- 3G-SDI,HDMI support up to 4K@30Hz
- With multiple 1/4 screw thread, can be mount wireless transmission and other device.
- The bottom of case built-in metal bracket, can mount the monitor on the tripod.
- Stereo Earphone output

° Display
Screen Size: 21.5" IPS
Color Depth: 16.7M
Resolution: 1920×1080 pixels
Pixel pitch: 0.24795(W) x 0.24795(H) mm
Aspect Ratio: 16:9
Brightness: 1000cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

° Input
1X SDI: 3G-SDI
2 X HDMI: HDMI-A (up to 4K@30)
1 X USB: USB (upgrade and LUT import)

° Output
1 X SDI: 3G-SDI
1 X HDMI: HDMI-A (up to 4K@30)

° Audio: Stereo Headphone, Speaker

° SDI Support Format
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

° HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)| 4096×2160p (24Hz)

° General
Input Voltage: DC 12V
Power Consumption: less than or equal 38W
Working Temperature: 0°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 596*440*240mm
Unit Weight: about14.8kg
Outer Carton Qty: 1
Outer Carton Size: 670*340*530(mm)
Gross Weight: about16.5kgs

1× Power Adapter
1× SDI Cable
1× Mini HDMI Cable
2× V-mount Battery Plate (default to mount on device)
1× User Manual Manual
