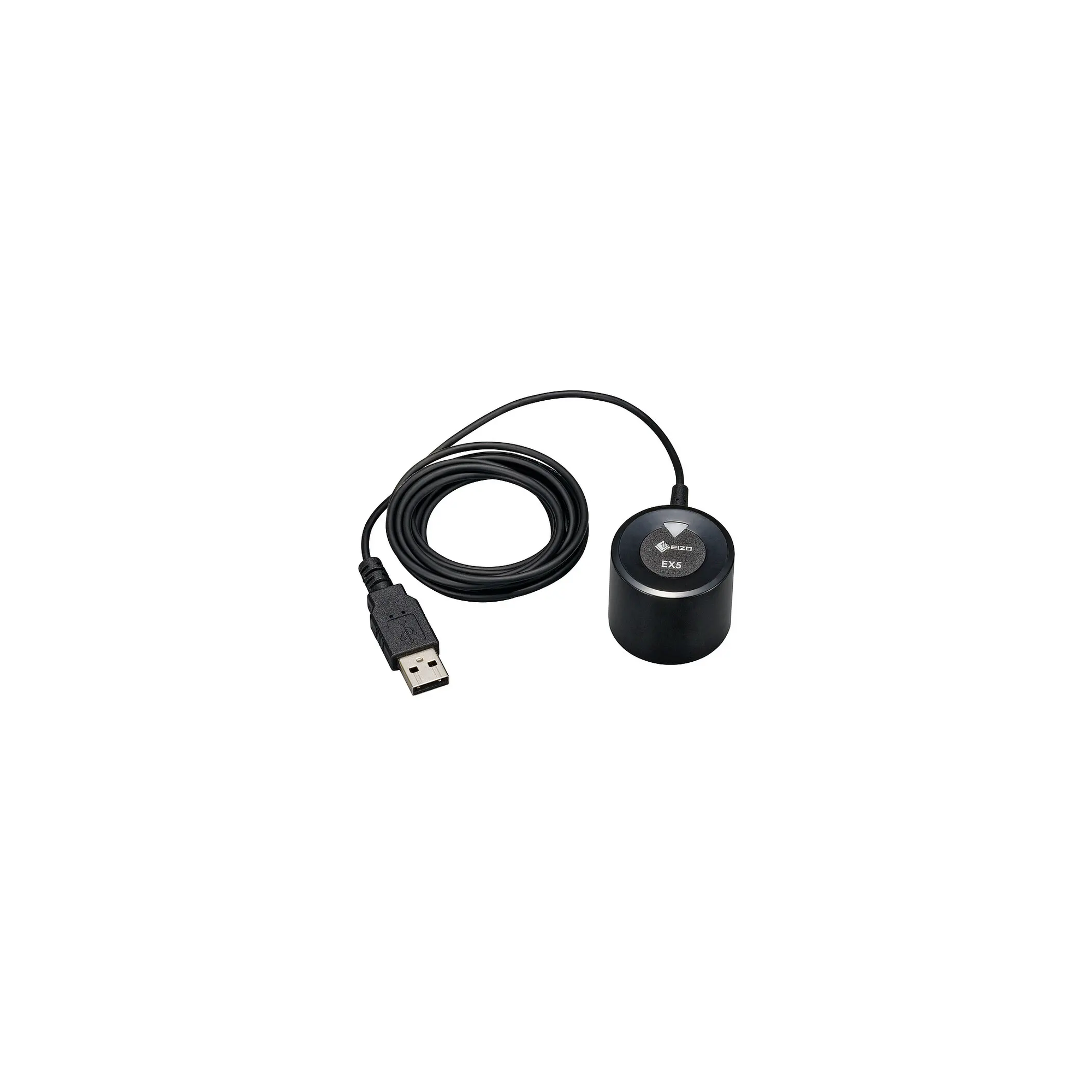

EX5

Eizo External calibration sensor for ColorEdge monitors in combination with the ColorNavigator 7 color management software

The EX5 is an external calibration sensor designed to accurately calibrate ColorEdge monitors with the support of ColorNavigator 7 and the Quick Color Match color management software.

Thanks to the perfect interaction between the EX5 and ColorNavigator 7 or Quick Color Match, color and brightness deviations are losslessly corrected during hardware calibration.
An ICC profile is then created that contains information about the monitor's current color settings for color management.

The EX5 colorimeter is connected to the computer via USB.
ColorNavigator 7 or Quick Color Match then projects a sequence of different color fields onto the monitor, which are measured by the EX5.
This checks whether the monitor's color display still corresponds to the set target values ??or whether it has changed due to factors such as aging.
If an adjustment of the monitor display is necessary, this is done losslessly in the Look-Up-Table (LUT) of the ColorEdge monitor as part of the calibration.
A new color profile is then created that transmits the current monitor settings to the operating system and therefore also to color-management programs.
This profile contains information about the properties and settings of the monitor.
This profile does not contain color corrections that reduce the display quality, as is the case with software calibrations.
