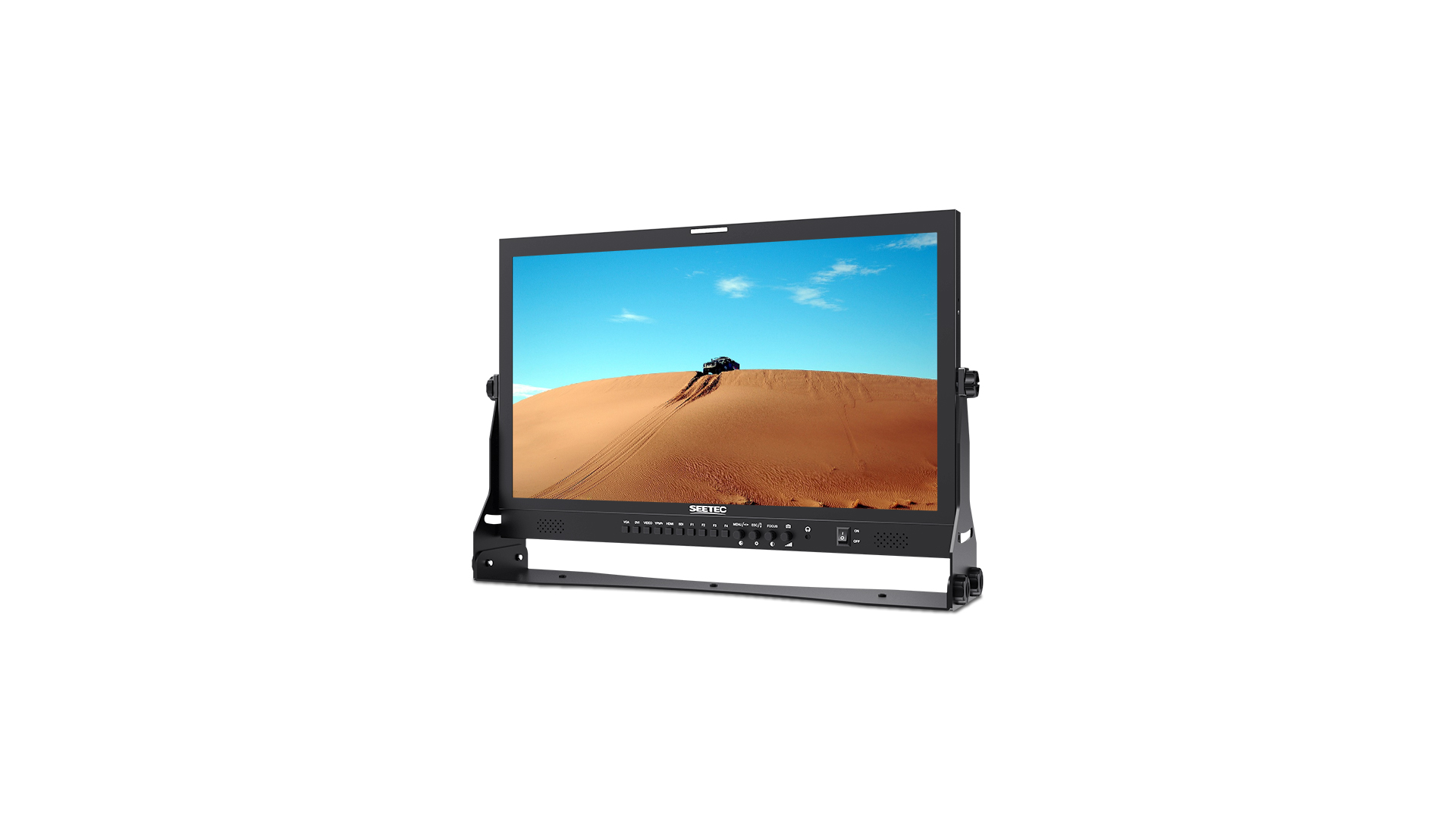

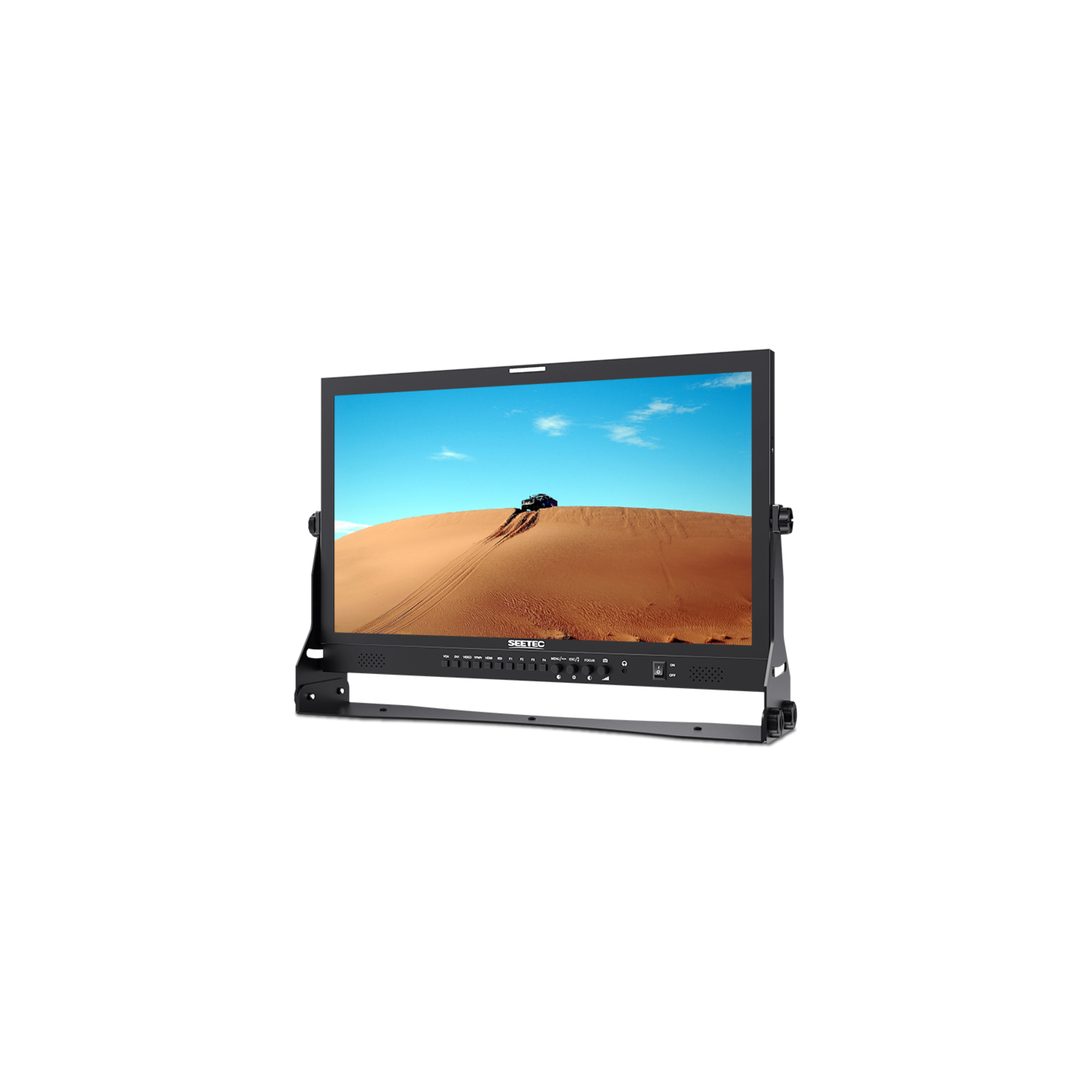

P238-9HSD

Seetec 23.8" 3G-SDI 4K HDMI Pro Broadcast LCD Monitor IPS Full HD 1920x1080 con luminosità 300 cd / m², 16M colors in standard color Rec.709, power supply 12V on XLR or V-Lock battery (not supplied).

° 23.8-inch 4K HDMI/SDI Broadcast Monitor
SEETEC P238-9HSD with 23.8-inch large screen can help you with each shot, and instilled confidence in knowing no details were missed.
Multiple signal interfaces and a series of auxiliary functions,made P238-9HSD is easy application for on-set monitoring, TV news production, broadcasting house, TV broadcasting truck.

° Full HD IPS Panel
With extremely high resolution IPS panel, provides excellent details; covers 72% NTSC color space, accurately reflect the original colors.

° 178° Wide Viewing Angle
With a wide viewing angle of 178 °, providing a wider field of view than a regular panel,allowing you to enjoy the ideal picture of bright colors, saturate and nature from any angle you view.

° Rec.709 Color Standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color,show the real image when you shooting video.

° Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment.P238-9HSD is equipped with multi operation buttons and knobs,can switch between one-button sources, and 4 shortcut buttons (F1~F4), you can custom shortcut function according to your needs, such as check field, safe frame and so on.
You can also quickly adjust brightness,contrast,volume,etc.to make shooting easier.

° Multiple Signal Interfaces, Satisfy Different Needs
The monitor is equipped with 3G-SDI, HDMI, YPbPr, Video, DVI, Audio L/R interfaces, meet all HD, SD, analogue video signal input and display demand.

° 3-color TALLY Light, Enhance Team Cooperation
P238-9HSD includes tally lights on the front and rear panel displayed in red, green or yellow tally signal.
This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output.
Tally is connected via an industry standard parallel pin connector on the rear panel.

Special Features:
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- Check Field (Red, Green, Blue, Mono)
- Camera Mode
- Pixel to Pixel
- Center Marker
- Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (Horizontal, Vertical, Hor&Ver)
- Image Freeze
- Zoom All
- U/D & L/R Zoom

Wide view angle, Full HD 1920x1080, bright, colorful display
HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
Built-in LED tally indicators (Red, Green, Yellow)
Power using included 12-volt supply or use standard 4-pin XLR
