₦ 2,968,641.78 VAT excl.
Display
Panel Type: TFT LCD
Display Size: 17.3" / 43.9 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle:
- Horizontal: 178° (89/89)
- Vertical: 178° (89/89)
Touchscreen: No
Maximum Brightness: 300 nits / cd/m2
Contrast Ratio: 700:1
HDR Support: No
Image Controls: Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O:
- 1x BNC (3G-SDI) Input
- 2x HDMI (Unspecified Signal) Input
- 1x BNC (3G-SDI) Loop Output
- 1x HDMI (Unspecified Signal) Loop Output
Embedded Audio: SDI | HDMI
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: Stereo
Power I/O: 1x Barrel (12 VDC) Input
Other I/O:
- 1x USB-A 2.0 Input
- 1x 1/8" / 3.5 mm (Tally) Input
Media/Memory Card Slot: No
Wireless
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: No
Format Support
Video Format:
- SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24
1080i: 60/59.94/50
720p: 60/59.94/50
576i
480i
- HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24
1080i: 60/59.94/50
720p: 60/59.94/50
576i
480i
Video Signal Conversion:
HDMI to SDI
1080p: 60
SDI to HDMI
1080p: 60
Power
Input Power: 10 to 18 VDC
Battery: No
Power Consumption: 32 W (Maximum)
Mounting
Rack Form Factor: 7 U
VESA Mounting-Hole Pattern: Yes (Unspecified VESA Pattern)
General
Environmental Resistance: No
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Dimensions: 15.9 x 12 x 1.6" / 40.3 x 30.5 x 4.1 cm
Weight: 9.9 lb / 4.5 kg

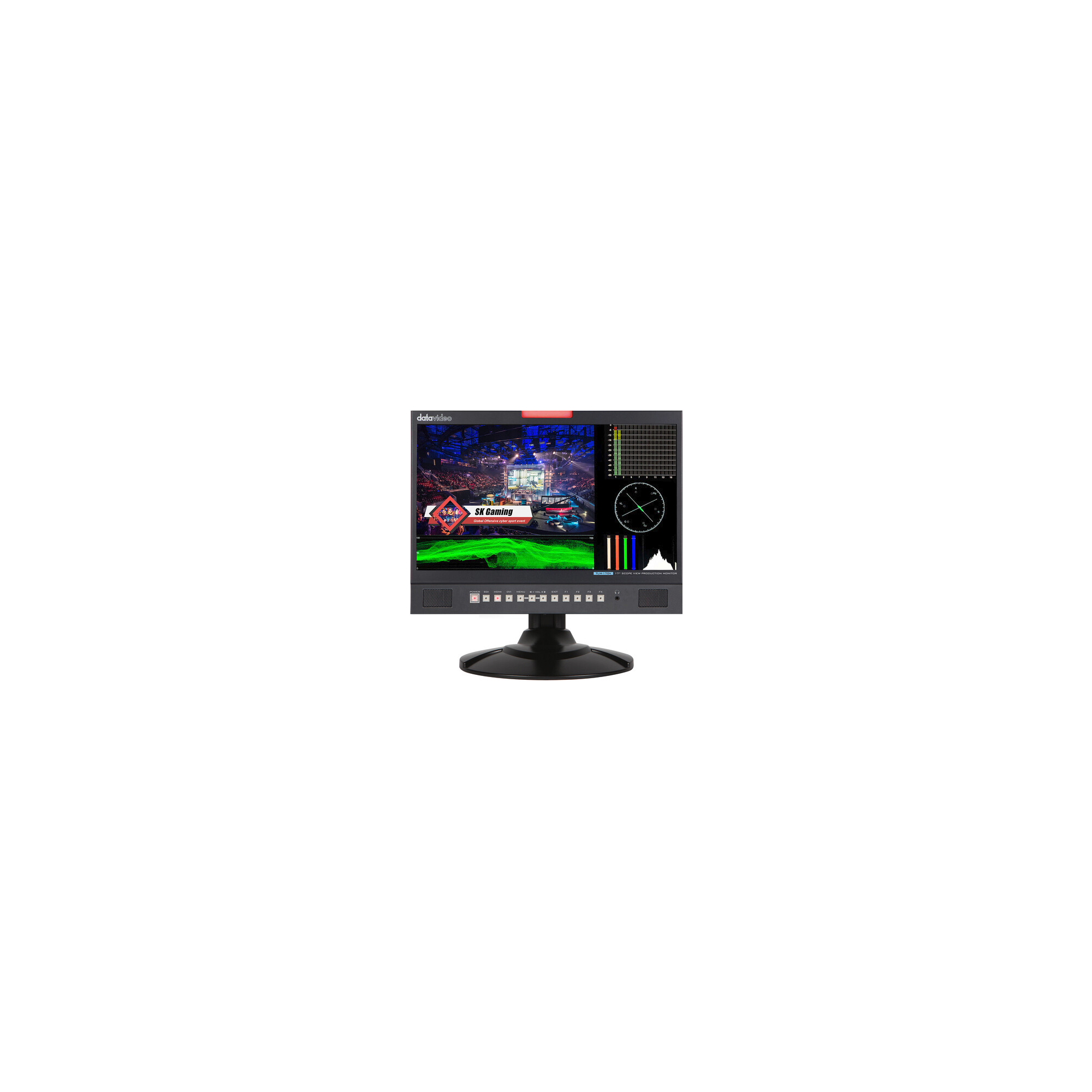

1x TLM-170V 17.3" ScopeView Production Monitor (Desktop, )
1x Desktop Stand
1x Power Adapter
