Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
go to the technical sheet
₦ 5,224,230.00
₦ 4,859,749.00 VAT excl.
SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7" display suitable for indoor or outdoor use.

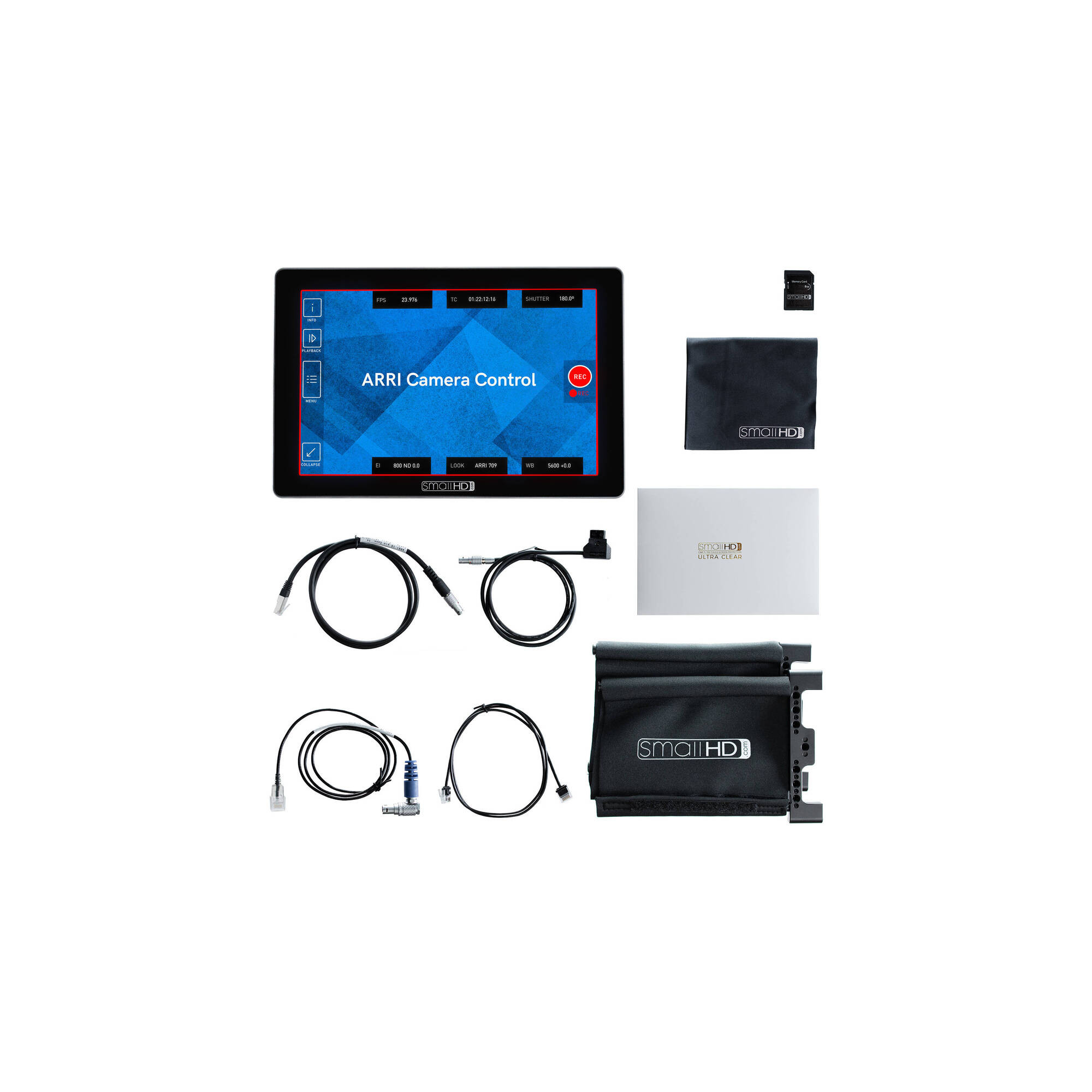

The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output.
The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen.
The included control cables allow the monitor to connect to the camera.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility.
Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap.
At the rear of the monitor, an L-series mount battery mount enables you to power the unit.
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7" display suitable for indoor or outdoor use.
The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output.
The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen.
The included control cables allow the monitor to connect to the camera.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility.
Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap.
At the rear of the monitor, an L-series mount battery mount enables you to power the unit.
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
9.VE5090
₦ 207,904.00
VAT included
Available in 19 days
9.VD5089S
₦ 168,451.00
VAT included
Available in 14 days
9.XA1008
₦ 40,849.00
VAT included
Available in 14 days
9.VG5096D
₦ 103,468.00
VAT included
Available in 14 days
9.XA10071
₦ 27,573.00
VAT included
Available in 19 days
9.VB5081A-H
₦ 120,506.00
VAT included
Available in 14 days
9.XA1015
₦ 30,099.00
VAT included
Available in 19 days
9.VP5081E
₦ 80,086.00
VAT included
Available in 19 days
9.XS1005
₦ 111,154.00
VAT included
Available in 14 days
SR 2059
₦ 31,013.00
VAT included
Available 3 unit in 4 Days
9.VE5091
₦ 260,203.00
VAT included
Available in 19 days
9.VD5089XS
₦ 159,529.00
VAT included
Available in 19 days
237HD
₦ 132,761.00
VAT included
Available in 14 days
9.VB5080
₦ 101,748.00
VAT included
Available in 14 days
026
₦ 101,855.00
VAT included
Available 60 unit in 4 Days
9.XA10075
₦ 15,318.00
VAT included
Available in 19 days
9.XL1012
₦ 35,420.00
VAT included
Available in 19 days
9.VB5105
₦ 150,553.00
VAT included
Available in 19 days
9.VE5085
₦ 168,451.00
VAT included
Available in 19 days
9.VP5081A
₦ 82,989.00
VAT included
Available in 14 days
9.VG5096A
₦ 114,916.00
VAT included
Available in 19 days
9.VP5081
₦ 65,520.00
VAT included
Available in 19 days
9.XG1029
₦ 59,984.00
VAT included
Available in 19 days
9.XA10072
₦ 22,198.00
VAT included
Available in 19 days
9.XS1006
₦ 70,250.00
VAT included
Available in 19 days
9.VP5081B
₦ 102,285.00
VAT included
Available in 19 days
9.VB5079
₦ 31,389.00
VAT included
Available in 19 days
9.VD5089M
₦ 193,176.00
VAT included
Available in 19 days
9.VD5095
₦ 321,693.00
VAT included
Available in 14 days
9.VP5081C
₦ 92,395.00
VAT included
Available in 14 days
9.XA1016
₦ 15,318.00
VAT included
Available in 19 days
9.VG5096
₦ 84,225.00
VAT included
Available in 19 days
9.VP5081D
₦ 102,285.00
VAT included
Available in 19 days
9.VB5083
₦ 50,685.00
VAT included
Available in 19 days
9.XS1004
₦ 66,326.00
VAT included
Available in 19 days
PWR-ADP-C7T-GM
₦ 330,185.00
VAT included
Available 1 unit in 4 Days
Director Monitor Cage v3
₦ 705,306.00
VAT included
Available in 14 days
PWR-ADP-C7T-SONY
₦ 330,185.00
VAT included
Available in 14 days
PWR-ADP-C7T-VM
₦ 314,436.00
VAT included
Available in 14 days
S-3602F
₦ 218,385.00
VAT included
Available 3 unit in 4 Days
LC-D421F KIT
₦ 310,244.00
VAT included
Available in 11 days
Display
______________________
Panel Type: IPS-Type LCD
Display Size: 7.0" / 17.8 cm
Screen Area: 5.95 x 3.72" / 15.11 x 9.45 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:10
Touchscreen: Yes
Maximum Brightness: 1800 nits / cd/m2
Contrast Ratio: 1000:1
Color Support: 1.07 Billion Colors (10-Bit)
HDR Support: Yes
Pixels Per Inch (ppi): 322 ppi
Color Gamut: 100% DCI-P3
Image Controls: Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Inputs / Outputs
______________________
Video I/O:
- 1x Micro-HDMI (Unspecified Signal) Input
- 1x Micro-HDMI (Unspecified Signal) Output
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Input/Output
Embedded Audio:
- HDMI: 8-Channel
- SDI: 8-Channel
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: No
Power I/O: 1x LEMO 2-Pin (34 VDC) Input
Other I/O: 1x Micro-USB 2.0
Media/Memory Card Slot: No
Wi-Fi: No
Bluetooth: Yes
Mobile App Compatible: No
Power
______________________
Input Power: 6 to 16 VDC at 2.5 A
Built-In Battery: Yes
Battery Type: 1x L-Series
Mounting
______________________
Mounting: 4x 1/4"-20 Female
General
______________________
Certifications: CE, IC, RoHS
Operating Conditions: 30 to 100°F / -1 to 37°C
Storage Conditions: 0 to 120°F / -17 to 48°C
Dimensions: 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm
Weight: 20.00 oz / 567.00 g
1x Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
1x Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
1x Sun Hood for 702 Touch and Cine 7 Monitors
1x UltraClear Screen Protector
1x 8GB SD Card
1x Microfiber Cleaning Cloth
