V-8HD Streaming Bundle - Roland

Name: V-8HD Streaming Bundle - Roland
Brand: Roland
SKU: V-8HD Streaming Bundle
Price: 1951.64 EUR
Availability: OutOfStock

Roland

Roland v-8hd,8 channel video switcher with UVC-01 capture card Bundle

go to the technical sheet

€ 1.951,64

€ 1.815,48 VAT excl.

Available in 15 days

Not sure if this is the right product for you? Talk to a consultant

Roland

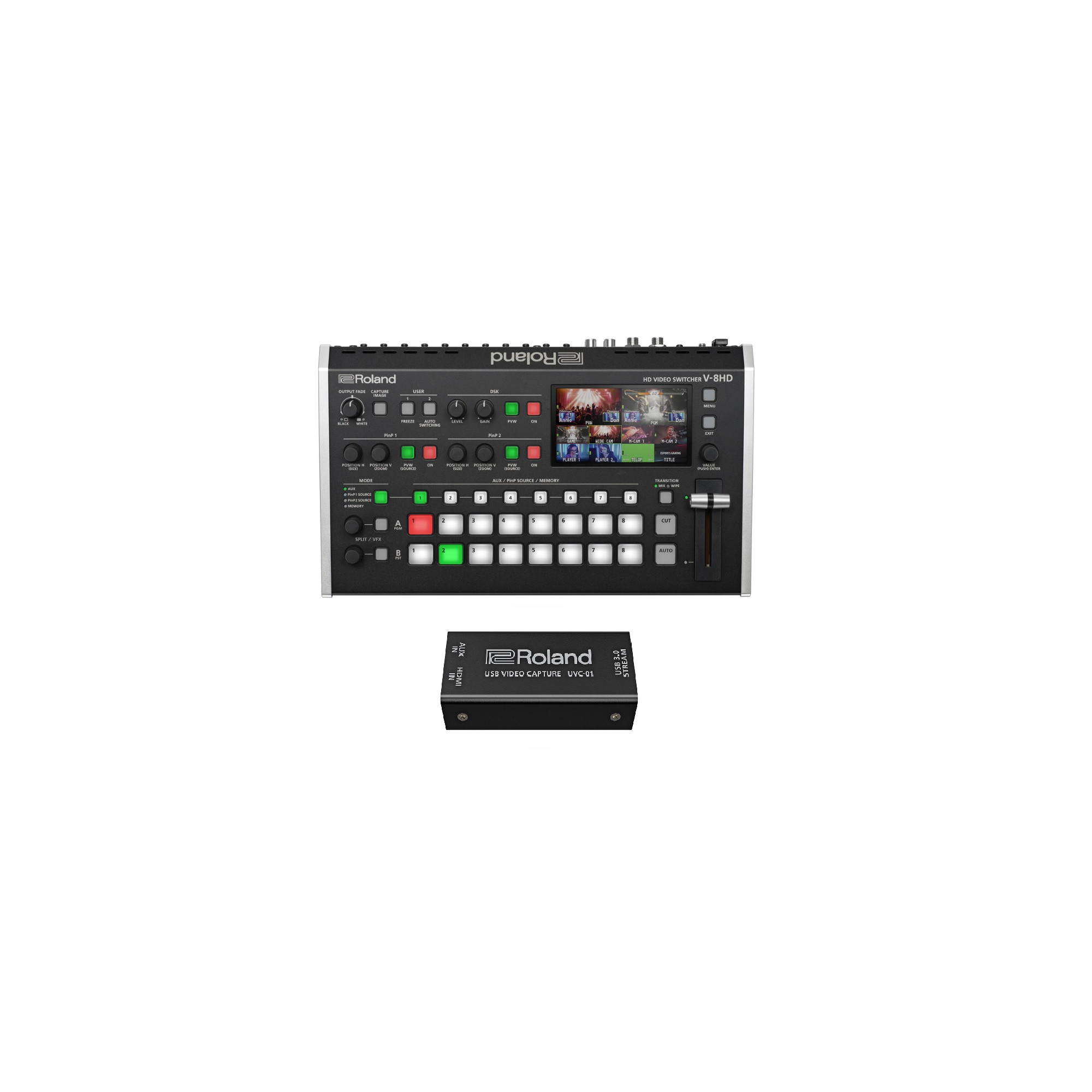

Bundle includes:
Roland V-8HD+ 9 channel video and audio switcher
Roland UVC-01 computer capture card
Roland RCC-3-HDMI Cable

Live switch from between eight HDMI inputs and output via HDMI, or convert one of the mixer's HDMI outputs to UVC for import into your computer, with the Roland V-8HD HDMI Video Switcher and UVC-01 USB Capture Device Kit from B&H. This kit has been assembled to provide you with a flexible 1080p live switching system that can simultaneously output live video for events and easily stream from your computer. The UVC-01 converts an HDMI input signal so your computer "sees" the signal as an HD webcam and doesn't need to convert the HDMI signal into something it can easily stream.
Roland V-8HD HDMI Video Switcher

Live events requiring video production require a flexible video switcher like the V-8HD Multi-Format HDMI Video Switcher from Roland. This multi-format video switcher can input up to eight HDMI video sources, switch them, add effects, and output them consistently to screens or projectors. Whether you're switching video for a live presentation or live streaming, the V-8HD has the features necessary for high-quality, live video switching.

The HDMI inputs can accept up to 1080p60 resolution feeds from numerous sources such as media players, computers, professional video cameras, and more. Two of the HDMI inputs utilize internal scaling hardware, which separately scale and/or convert videos of varied resolutions into the selected output resolution, ensuring output consistency between sources. The V-8HD supports numerous effects such as cut, mix, wipe, chroma and luma key, flip, fade, and more. You can also store up to eight .bmp and .png files in internal memory to add images to your effects.

The V-8HD features an 18-channel audio mixer, and up to 24-bit, 48 kHz PCM audio with an effects library that provides gain, de-esser, noise reduction, and more. It also features left-right analog RCA inputs and outputs, as well as a 1/4" TRS headphone output. It also features a 4.3" TFT color LCD which previews each input and program output all on a single screen. On the top of the unit, there are multiple rows of input and output buttons, position, source, and levels buttons, and a fade T-bar, giving you full control of your production within the small, portable frame. You can also remotely control and monitor Atomos recorders to start/stop using a trigger button, so you don't miss a vital record.

While the feature set of the V-8HD is expansive, it is also intuitive and simple to operate after the initial setup. Music venues, houses of worship, streaming media production companies, and convention centers that rely on volunteers or less-experienced technicians can take advantage of the rich feature set and ease of use, with minimal impact on existing infrastructure. You can even pair the switcher with a BOSS single or double footswitch and program over 100 commands, adding to the versatility of the V-8HD.

Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
INPUT 1--3: HDMI type A x 3
*HDCP Supported

INPUT 4: HDMI type A
* HDCP Supported
* Multi-format Supported
Output Connectors
OUTPUT 1--2: HDMI type A x 2
* HDCP Supported
Input Formats
INPUT 1--3
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz

INPUT 4
480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can store up to 4 files in the internal memory.
* PNG alpha channel not supported.
Output Formats
OUTPUT 1--2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio
Audio Processing
Sample rate: 24 bits/48 kHz
Audio formats
Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors
INPUT 1--4: HDMI Type A x 4
AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
LINE IN: RCA phono type
MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors
OUTPUT 1--3: HDMI Type A x 2
AUDIO OUT L, R: 1/4-inch TRS phone type
PHONES: Stereo miniature phone type
Nominal Input Level
AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN: -10 dBu (Maximum input level: +10 dBu)
MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
Input Impedance
AUDIO IN 1--2: 10 k ohms
LINE IN: 15 k ohms
MIC/AUX IN: 10 k ohms
Nominal Output Level
AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
PHONES: 72 mW + 72 mW (32 ohms load)
Output Impedance
AUDIO OUT L, R: 600 ohms
PHONES: 10 ohms
Audio Effects
Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output
Others
Other Connectors
USB MEMORY: USB A type (for USB flash drive)
REMOTE: USB B type (for remote control)
RS-232: DB-9 type (male, for remote control)
TALLY: DB-9 type (female, for TALLY output)
Other Functions
Preset memory (8 types)
Panel lock function
EDID emulator
Auto switching
Auto input detect
Power Supply
AC adaptor
Current Draw
2.1 A
Power Consumption
25.2 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
316 (W) x 121 (D) x 65 (H) mm
12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
Weight (excluding AC adaptor)
1.4 kg
3 lbs 2 oz
Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
