NC2 Studio IO

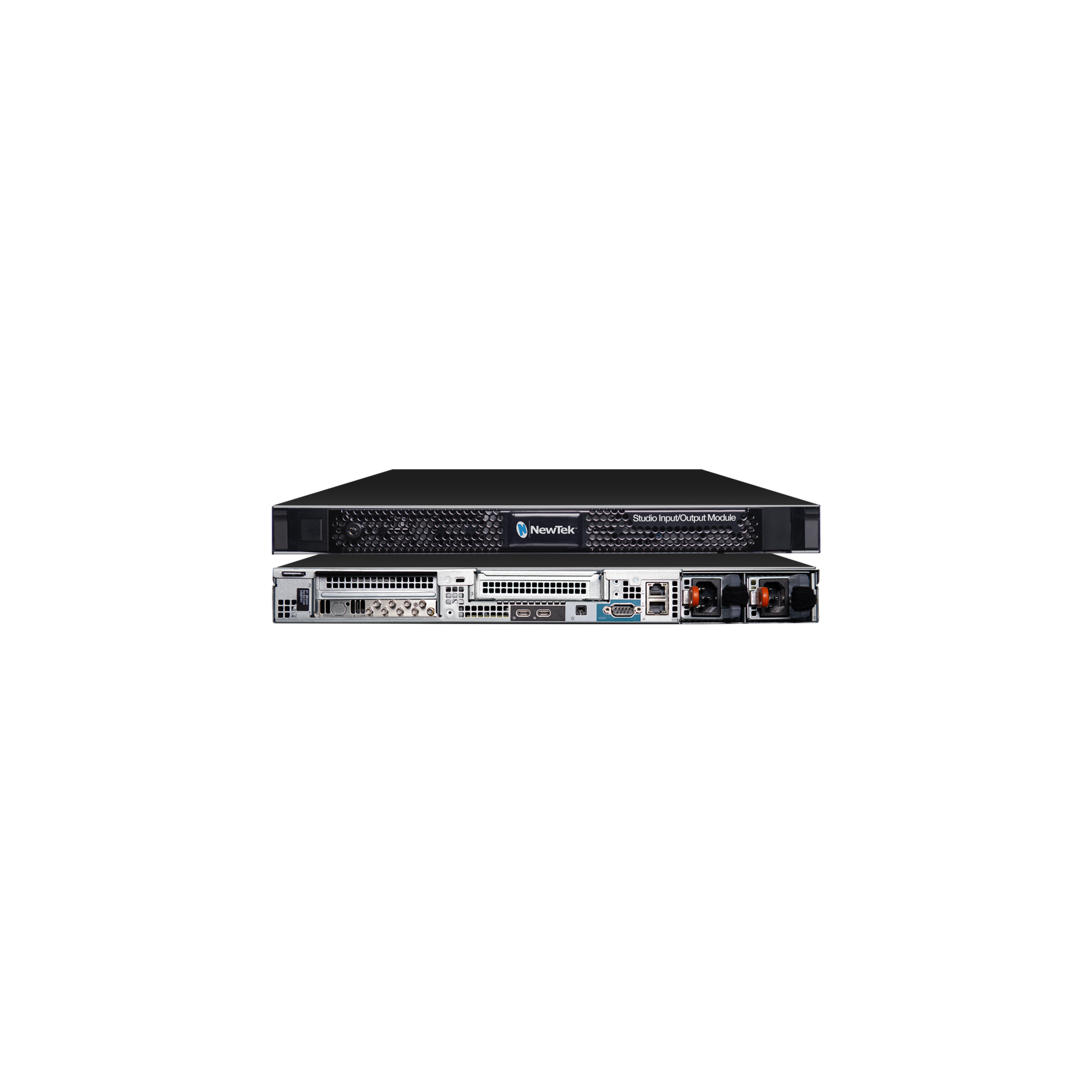

The NC2 Studio I/O is NewTek's most advanced studio module, perfect for production professionals and broadcasters, it offers support for 12G-SDI, 8 channel recording and 10 Gigabit Ethernet connectivity, the NC2 Studio I/O Module connects multiple video and audio formats including NDI®, SDI, and other IP formats. The NC2 Studio I/O Module is far more than conversion offering signal capture, media file playback, selectable multi-viewers, and professional video scopes.

Using versatile functionality ranging from NDI, SDI to IP video conversion by I/O channel expansion, to 4K UHD connectivity and IP interoperability, NewTek NC2 Studio I/O Modules offer the flexibility to outfit studios, facilities, or infrastructures not only for their current production needs but also those of the future.

Key Features
Broadcast Ready with dynamic I/O configuration
1 RU Rack-mountable, the NC2 Studio I/O supports12G-SDI, the dynamic I/O set-up can be configured as 8 x 3G-SDI , 2 x 12G-SDI with 4 x 3G-SDI, or a wide range between. Support SDI ranging from SD to UHD including quad-link grouping and 6G-SDI is offered.

Built for NDI
Supporting 10Gb Ethernet, the NC 2 Studio I/O is ideally placed for use in high-speed networking environments such as broadcast workflows and is perfect for NDI traffic. Built to work with NDI 5, NC 2 I/O supports all the latest and upcoming features

Adapts to any workflow
NC 2 I/O is a powerful, adaptable solution offering IP flexibility while making use of existing SDI equipment and infrastructure. Audio integration provides adaptable workflows through connection with USB and network-based audio drivers (DANTE™/AES67/ASIO/WDM).¹ Management and control of each channel can be harnessed locally, through integrated NDI KVM technology, or a web-based API.


Simultaneously record up to 8 SDI inputs and combine with NewTek's Network Remote Storage
10 Gigabit Ethernet connectivity for high-speed networking environments
Adaptable audio workflows through connection with USB and network-based audio drivers*
Greater I/O flexibility with support for 12G-SDI devices
Integrated NDI® KVM technology enabling remote module access and control
Supports all the very latest NDI 5 Features
