AV-UHS5M6G

Name: AV-UHS5M6G
Brand: Panasonic
SKU: AV-UHS5M6G
Price: 8050502.57 NGN
Availability: OutOfStock

Panasonic

EAN: 4010869311144

NDI Input/Output Expansion Board for AV-UHS500 Switcher

go to the technical sheet

₦ 8,050,502.57

₦ 7,488,839.60 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 805,050.26

Available in 34 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

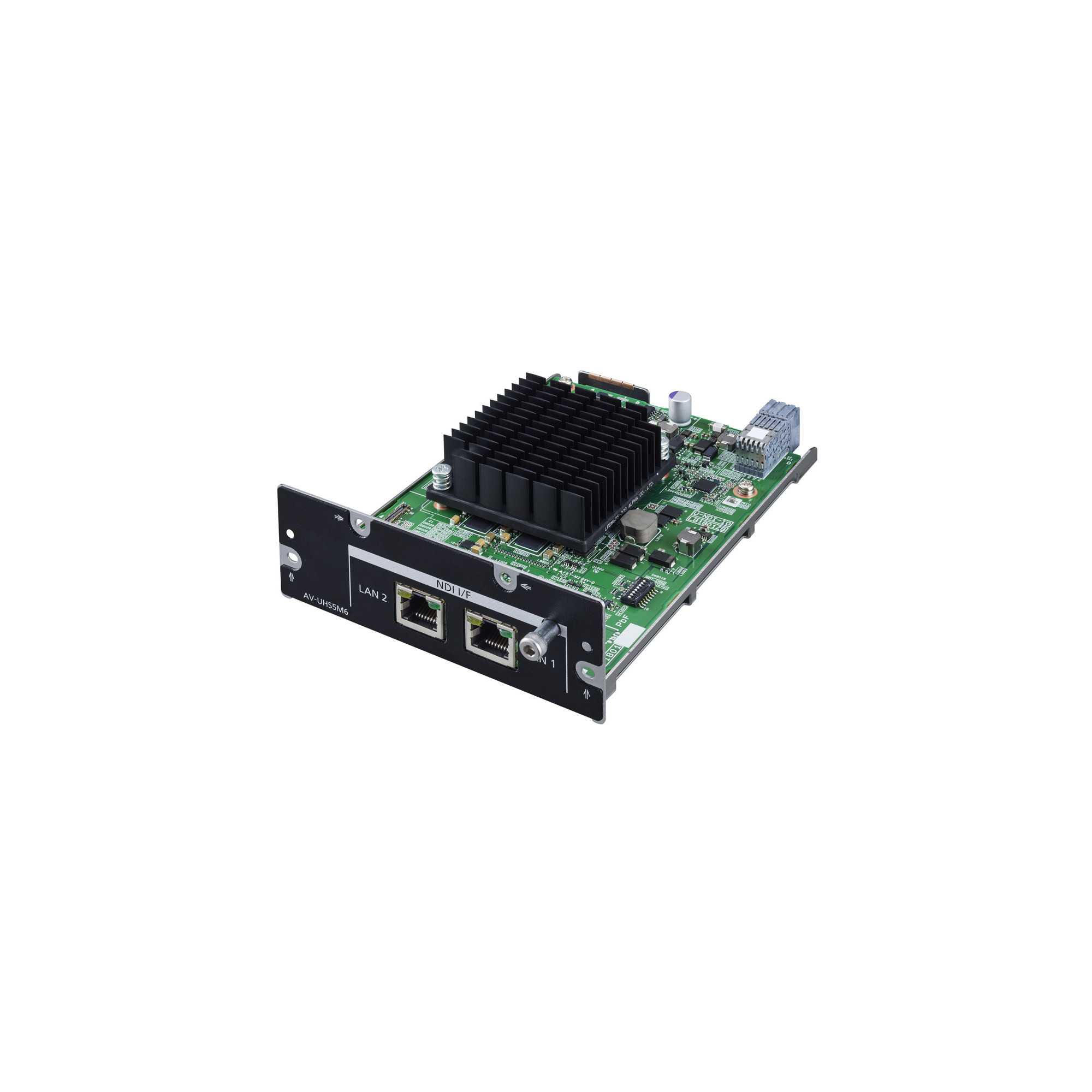

The AV-UHS5M6G NDI Input/Output Expansion Board from Panasonic enables you to input NDI and NDI|HX signals to an AV-UHS500 video switcher. Use this board to create an IP streaming system that covers video transmission, camera control, and more using a single LAN cable. Two LAN terminals (1 Gb each) secure a maximum bandwidth of 2 GB. The board is inserted into the back of the switcher, avoiding the complex configurations of external converters. Ideal for sports and other live events, the AV-UHS5M6G board features two RJ45 LAN ports that offer a total maximum bandwidth of 2GB. Features include an integrated frame synchronizer and a genlock function that supports black burst and tri-level syncing.

° NDI and NDI|HX Support
° Input NDI and NDI|HX signals directly from cameras to the AV-UHS500 switcher using a single LAN cable.
° The AV-UHS500 can also be used to connect to a streaming PC with a single LAN cable.
° NDI and NDI|HX Input/Output
° NDI in HD mode: Maximum of four inputs and two outputs
° NDI in 4K mode: Maximum of one input and one output
° NDI|HX and NDI|HX2: Maximum of two inputs, HD only
° Genlock function that supports black burst and tri-level syncing

2 x RJ45 LAN Inputs/Outputs
Supports NDI, NDI|HX, and NDI|HX2
2GB Maximum Bandwidth
Built-In Frame Synchronizer
Supports Black Burst and Tri-Level Sync
Mounts Easily on Back of Switcher
