V-02HD MK II

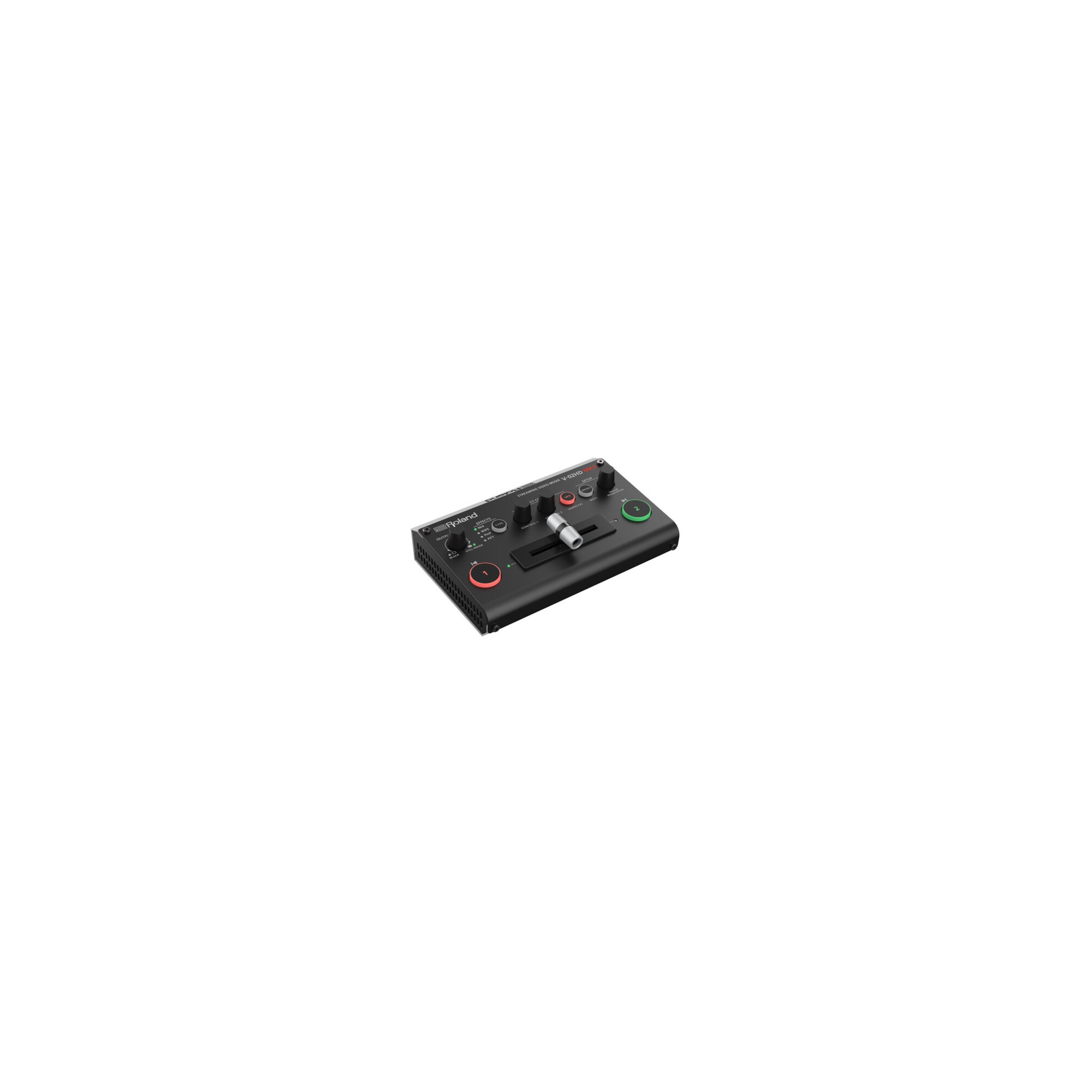

Simple and fast to set up and control, the Roland V-02HD MK II Multi-Format Video Mixer makes it easy to switch between two HDMI sources using push buttons, a T-bar, or an optional foot-pedal switch, and output via HDMI or USB Type-C for easy streaming from your Windows or Mac computer. This portable HD switcher is small enough to fit in your gear bag. It can be mounted onto a standard tripod, so it doesn't require a rack arrangement to use it on location. Its compact size and lightweight design make it well suited for use on mobile video productions.

Although small in size, the V-02HD MK II is loaded with features, including individual scalers on the input and both the program and preview output. The V-02HD MK II features a T-bar for smooth transitions, a graphics select knob, effects select, effects control, and a menu button. The switcher powers from an included AC power supply.
The V-02HD MK II is a single unit that incorporates a simple switcher, a high-quality scaler, an input expander, an audio solution, and an inline video effects/compositor
It takes the HDMI output from two cameras and has both a preview and program HDMI output
A preview output enables you to view the menu without the overlay appearing on the program output
It features a built-in encoder that outputs your program output via the USB Type-C port, allowing you to stream easily from a computer without needing an additional encoder
Audio from both cameras and external sources can be mixed within the V-02HD MK II and monitored through a dedicated headphone output
The switched output is embedded in real time and output over HDMI for reliable recording or monitoring
The switcher operates with 10-bit 4:4:4 processing
Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions
You can embed and de-embed audio, both analog and digital
The V-02HD MK II has built-in three-band EQ and dynamics
The USB output stream is recognized by your computer as a camera source, so it requires no additional encoding by your computer to stream to virtually any streaming platform, including Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, Streamlabs OBS, StreamYard, and Restream.
Using the optional V-02HD MK II RCS application for either macOS or Windows allows you to control nearly all the functions of the mixer simultaneously using the same USB connection the mixer uses to send the program out to your computer for streaming. The application can run on your computer while it streams your video, so you can switch and stream your show while using only your computer.
iPad Remote App
Turn your iPad into an efficient touch interface for the V-02HD MK II with the dedicated V-02HD MK II Remote app. The app allows you to run essential switching functions, mix audio with virtual faders, change settings and effects parameters quickly, and create up to eight custom scenes for seamless setup changes, all from your iPad.
With the V-02HD MK II, you get free access to Roland's AeroCaster Switcher for iPad, a powerful solution that enables you to wirelessly connect and switch up to five smartphone or tablet cameras, then output a combined program feed to the V-02HD MK II or another supported Roland switcher with an HDMI input.
