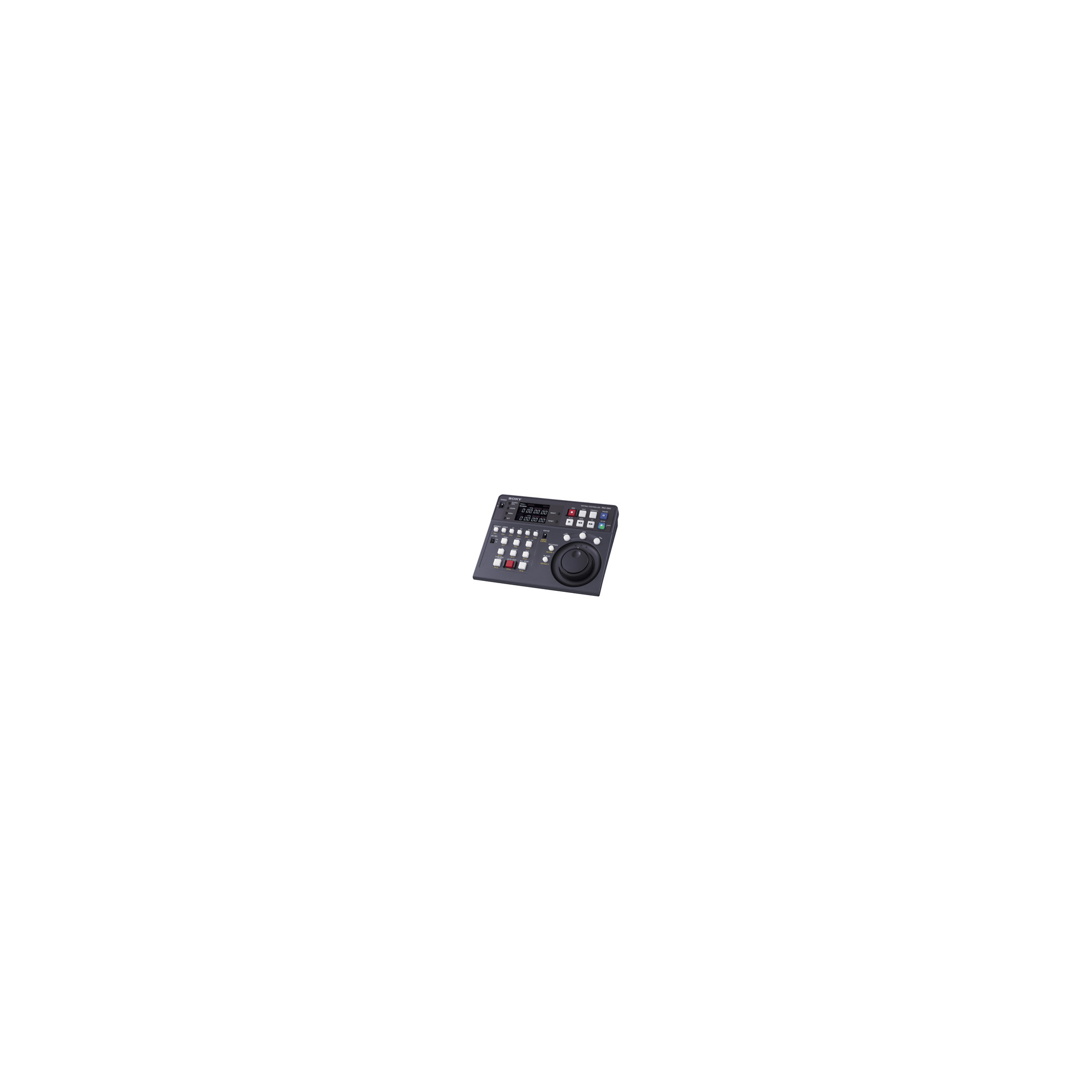

RM-280

The RM-280 is a compact editing controller intended for simple VTR remote control or basic two-machine editing. The RM-280''s light weight design allows for hand held operations using Sony''s 9 pin protocol. Capable of controlling up to two machines, the RM-280 can accomplish both assemble and insert editing in multiple frame rates. The control panel also provides a Jog/Shuttle dial for fast and accurate cueing. * Two-machine editing * Assemble and insert mode * Four-channel audio editing * A variety of edit buttons such as "IN- and OUT-POINT ENTRY", "+ and - TRIM", "AUTO EDIT", "PREVIEW/REVIEW", "GO TO", "ALL STOP" * TC/CTL/RTC (Relative Time Code) editing mode selectable * Pinch-on-delay time learning capability for accurate timing adjustments of recorder and player edit in-point * Edit delay time setting * Cue signal or tally output via a mini-pin port * Equipped with reference video input for synchronization with other equipment * VTR remote control function, PLAY, REWIND, FAST-FORWARD, REC, STOP, PAUSE, EDIT, PREROLL * Multiple system frequencies including 29.97, 25, 24, 23.98 Hz * Picture search using the jog/shuttle dial for jog, shuttle and variable-speed playback modes * Can be powered using the supplied AC adaptor or directly from a connected HDW-S280 HDCAM recorder from its DC output * Easy-to-use keyboard layout provides straightforward operations * Displays error messages on the VFD display, indicating the type of errors and device name on which the malfunction occurred for instant action to be taken Applicable models for editing controller are as shown below. - HDW-2000 series, HDW-S280, HDW-250 (as a player) - MSW-2000 series - DNW-A75, DNW-A28, DNW-A25WS - DSR-2000/2000A, DSR-1800/1800A, DSR-1600/1600A, DSR-1500/1500A, DSR-70/70A, DSR-45/45A - PDW-1500 (as a player) - DVW-2000 series, DVW-500 series. - UVW, PVW, BVW series.


Switchable between editor mode and remote control mode
Compatible with various system frequencies (29.97, 25, 23.98 and 24Hz)
Three types of time counter (TC, CTL and RTC)
Assemble and insert editing

Start delay time learning capability
Cue signal or tally output
DC12V powered
