Studio 2

Name: Studio 2
Brand: Africa Broadcast Store Ltd
SKU: Studio 2
Price: 1129.4 EUR
Availability: OutOfStock

12G-SDI/HDMI 4K60 Bidirectional NDI Encorder/Decoder, UpDowncross Conversion

go to the technical sheet

€ 1.129,40

€ 1.050,60 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

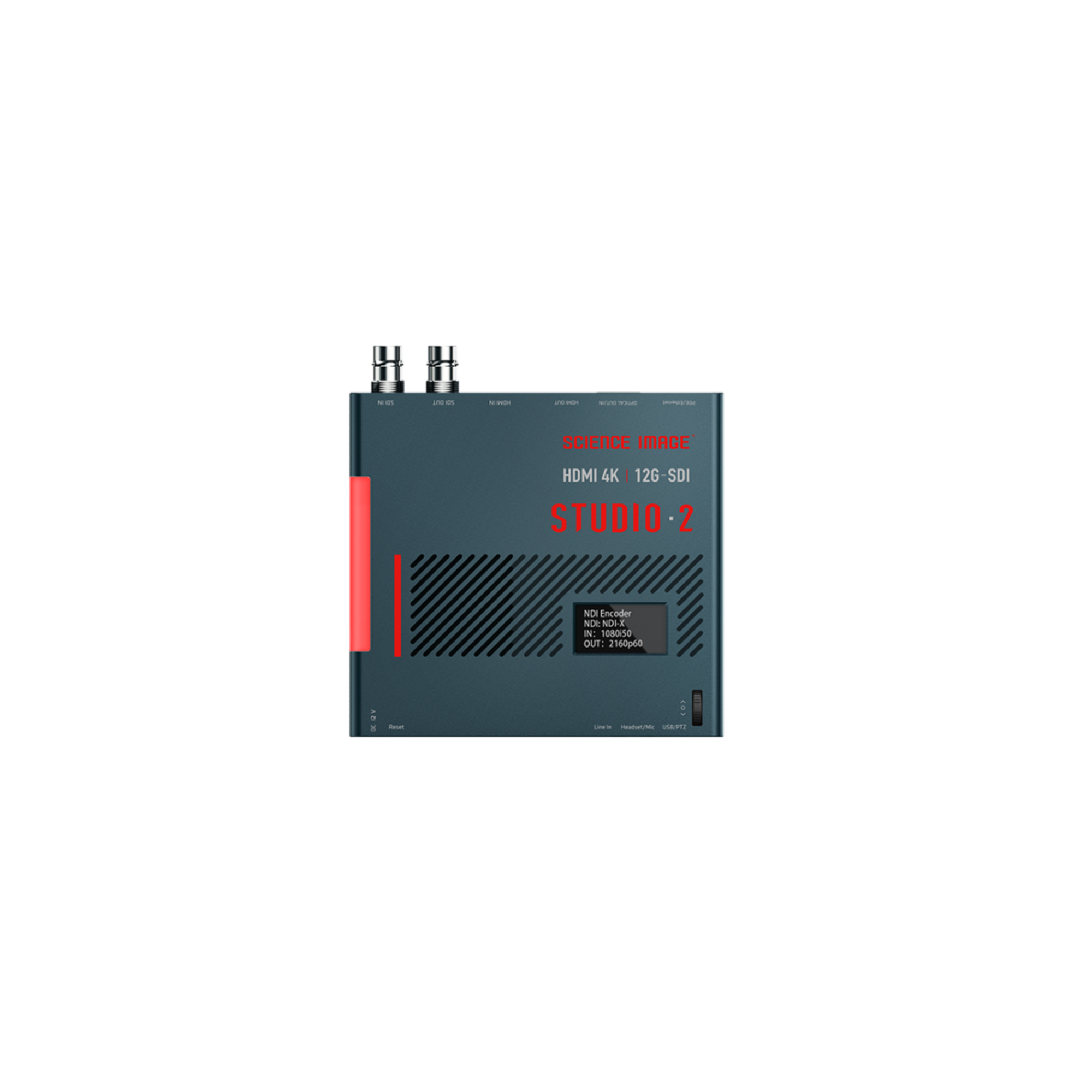

Science Image 12G-SDI/HDMI 4K60, Bi Directional Full NDI Encoder&Decoder, Optical Transceiver, UpDowncross Conversion

Studio 2 is a powerful product, it combines frequency conversion and optical transceiver in one tiny device.
It is the upgraded version of NDI Studio 4K SH with an intelligent scroll wheel.
Widely used in various business scenarios such as broadcast program, variety show recording, large events, and video conferences, providing users with excellent AV experiences.

° Support at least 27 types SMPTE formats multiple functions ,efficient inter-convert
Studio 2 provides up and down conversion in 27 formats (from HD to UHD), the maximum 3840x2160p60.
Supports up to 12G-SDI/HDMI 4K60 inter-conversion and output.
The user can choose the output format with just a click.

° Optical transceiver, Ultra long distance transmission
Provide a 12G SDI optical transceiver interface, simultaneously transmit and receive 3G/6G/12G-SDI and HDMI 4K videos, support maximum 20km transmission.
The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.

- Encoder/Decoder setting.
- SDI/HDMI input priority setting.
- Optical transceiver function transmitting and receiving settings.
- Free selection of output resolution format.

° Broadcast level, Reliable and stable
Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats (444,422,420), accurate and fast signal recognition.
Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably, not influenced by the external complex environment.

° Compatibility and stability
Support SMPTE video source, compatible with the video from most equipment.
Open to most software and browsers, truly plug and play.
Studio 2 meets industrial standard, which ensure it works durably and reliably.

SDI video format
1.5G/3G-SDI HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD /4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

HDMI video format
HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI video sampling: 4:2:2 and 4:4:4
SDI audio sampling rate: TV standard 48kHz
SDI color accuracy: 4:2:2 and 4:4:4
SDI color space: REC 709 BT2020
HDMI color space: REC 709 BT2020
HDMI color accuracy: YUV 4:2:2 and RGB 4:4:4

Interface
SDI video input: 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
SDI video output: 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
HDMI video input: 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
HDMI video output: 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible.
Optical fiber input and output: 1 x SMPTE optical fiber SFP socket, 12G-SDI optical Transceiver modules
RJ45 Gigabit Ethernet port: 1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals.
LINE IN audio input port: 1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC Intercom input and output port: 1 x Mic 3.5mm audio input and output port (De-Embeded), used for NDI Intercom (with DynaControl software required)
USB 2.0 Type A port: 1 x USB 2.0 Type A interface, used to control a third-party PTZ camera.

Display
1.3 inch OLED screen: 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate.
Large size TALLY light guide block: Large-size semi-transparent matt TALLY light guide block, which can display three TALLY states transmitted through NDI in real time: Green/Preview, Red/Program
Network and requirements: Gigabit Ethernet switch and Gigabit Ethernet card
Software, operating system, support platform:
- Built-in Linux, application control software ScienceImage DynaControl.
- Supports Windows 8.1, Windows 10 and Windows 11 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher.
- Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers.

Power supply
Power supply requirements: Two power supply modes: 9-18V DC and POE+
Power consumption: 25W

Environmental requirements
Operating temperature: 5°C to 40°C
Storage temperature: -20° to 60° C (-4° to 140° F)
Relative humidity: 0% to 90% non-condensing

Specifications
Material: all aviation aluminum milling
Size: 125mm x 115mm x 24mm
Weight: 370g
