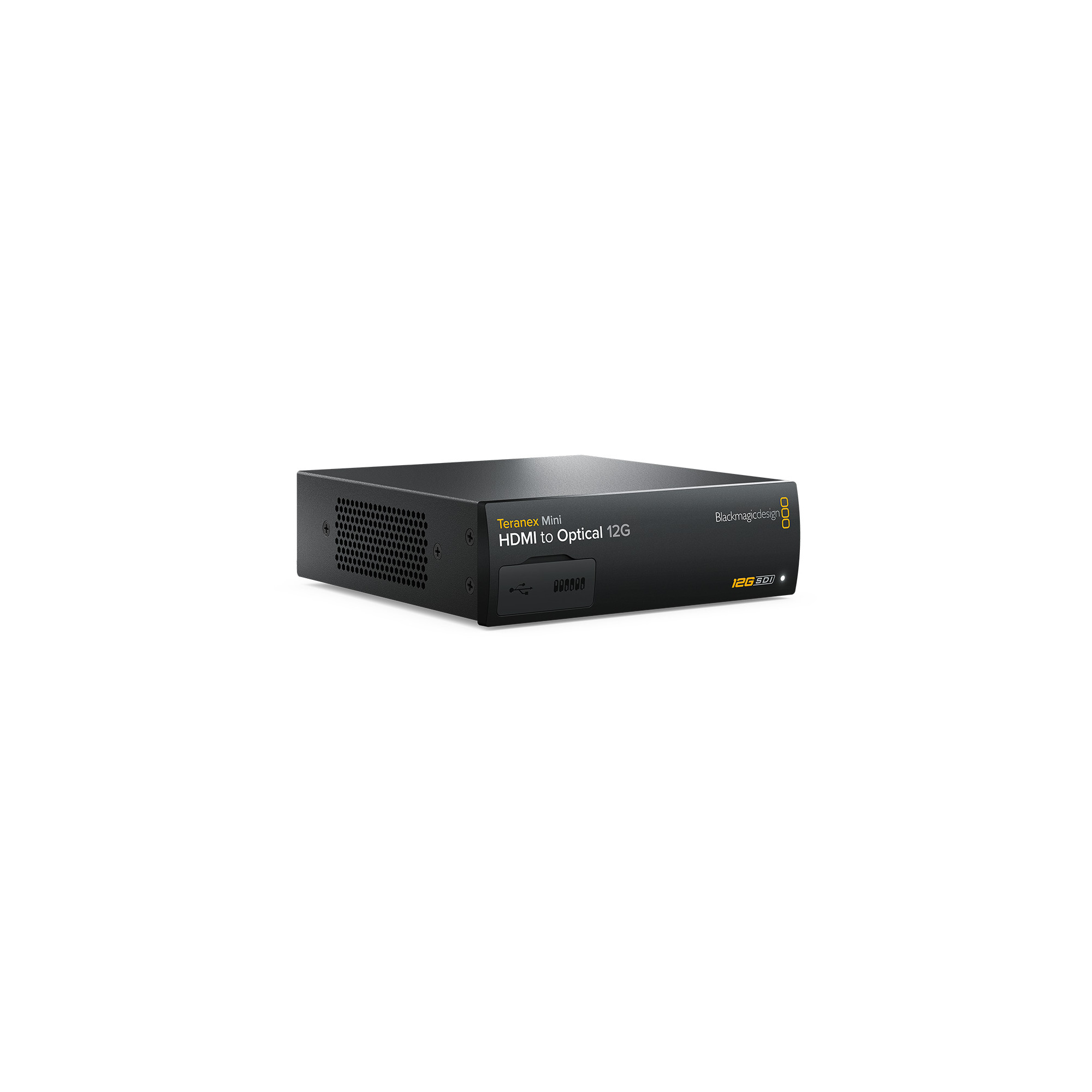

Teranex Mini - HDMI to Optical

Connections
HDMI : 1 x HDMI 2.0 type A connector with support for 2160p60.
Optical Fiber Connection : LC connector, 1310 nanometer wavelength, single mode.
Optical Fiber Video Output : Automatically matches the SD, HD and 12G-SDI HDMI video input.
SDI Video Output : Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog Audio Input : 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input : 4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

Multi Rate Support : Automatic switching between SD/HD/2K and 4K.
Updates and Configuration : USB and Ethernet.
Re-Clocking : Yes

Teranex Mini - SDI to HDMI 12G : Standards
SD Format Support : 525/29.97 NTSC, 625/25 PAL.
HD Format Support : 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support : 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
4K Format Support : 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.
SDI Compliance : SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI.
SDI Video Rates : SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling : 4:2:2 and 4:4:4.
SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space : REC 601, REC 709
HDMI Format Support : 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.
HDMI Color Space : REC 601, REC 709
HDMI Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Software Control
Mac OS X™ and Windows™ software upgrade via USB or Ethernet.
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control : Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements
Power Supply :
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
1 x Power Over Ethernet : Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption : 15 Watts
Operational Voltage Range : 90 - 240V AC

Physical Specifications
Teranex Mini - HDMI to Optical 12G
Environmental Specifications
Operating Temperature : 0°to 40°C (32° to 104°F)
Storage Temperature : -20° to 60°C (-4° to 140°F)
Relative Humidity : 0% to 90% non-condensing

What''s Included
Teranex Mini - HDMI to Optical 12G
Software SD Card

Teranex Mini - HDMI to Optical 12G
Software SD Card
