Datavideo

672255009093
Datavideo H.264 Dual Streaming Encoder/Recorder - Black
go to the technical sheet
€ 1.172,33

€ 1.090,54 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

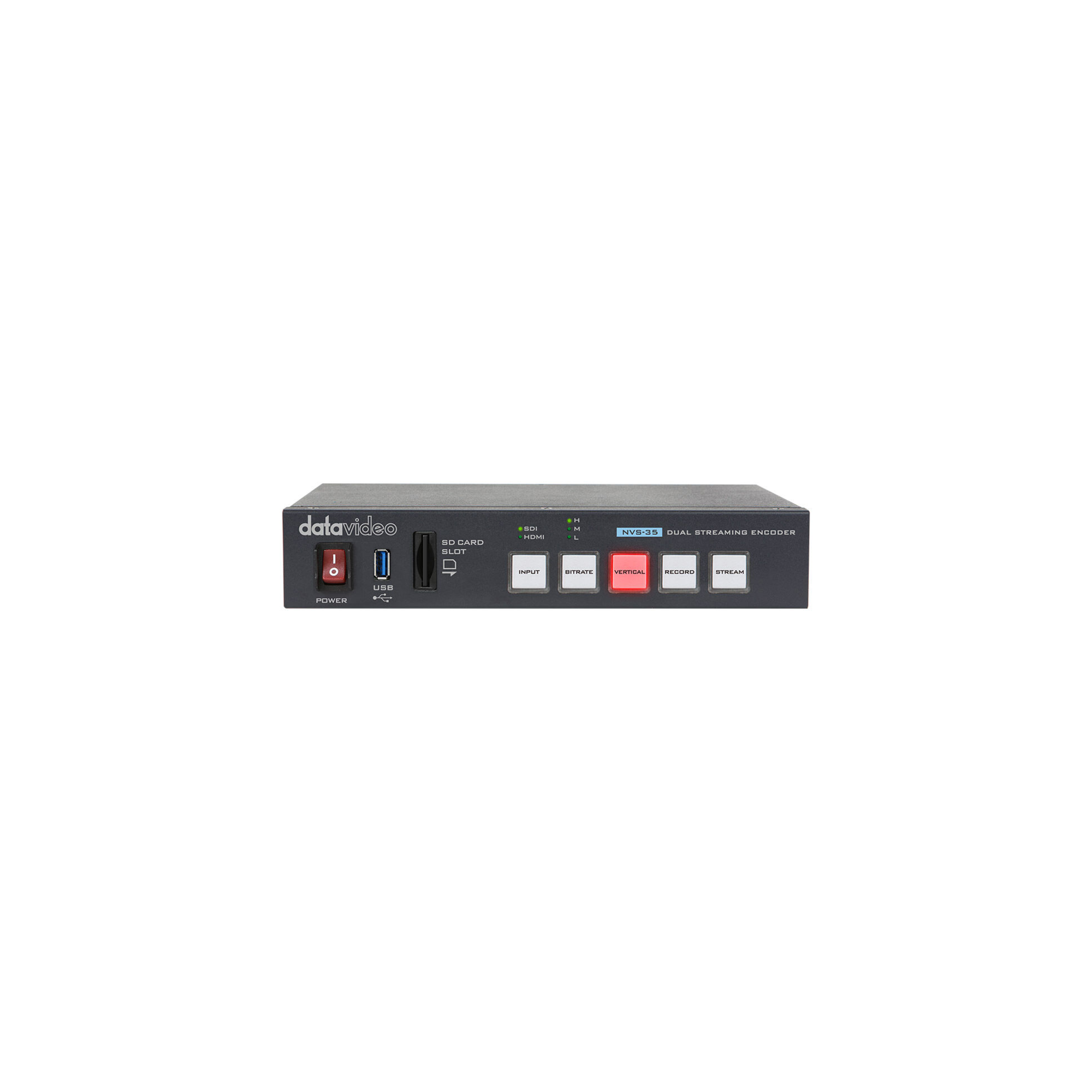

Datavideo H.264 Dual Streaming Encoder/Recorder - Black

Simultaneously stream up to 1080p60 H.264/AVC video to two web destinations such as Facebook, YouTube, Twitch, Amazon Web Services, and others with the H.264 Dual Streaming Encoder/Recorder from DataVideo.
The encoder has one HDMI input and one 3G-SDI input with a maximum resolution of 1080p60, and it can input analog audio for embedding via its RCA and 3-pin XLR inputs.
It is capable of two simultaneous streams via its Ethernet port using common protocols such as RTMP/RTSP and SRT in H.264/AVC encoding format.

You can simultaneously record your stream to an SD card via its built-in card slot for editing and archiving.
It is also compatible with dvCloud, an optional subscription service that allows you to manage your streams and record H.264 programs over the Internet.
It allows you to encode in a variety of resolutions from 128 x 128 to 1920 x 1080, and it also supports vertical streaming to accommodate smartphone streaming clients.

Stream up to 1080p60 H.264/AVC Video
Two Simultaneous RTMP Streams
3G-SDI and HDMI Input
Encode and Input up to 1080p60 Video
Record to Built-In SD Card Slot
XLR and RCA Analog Audio Input
Downscaling to 128 x 128
Compatible with dvCloud Service

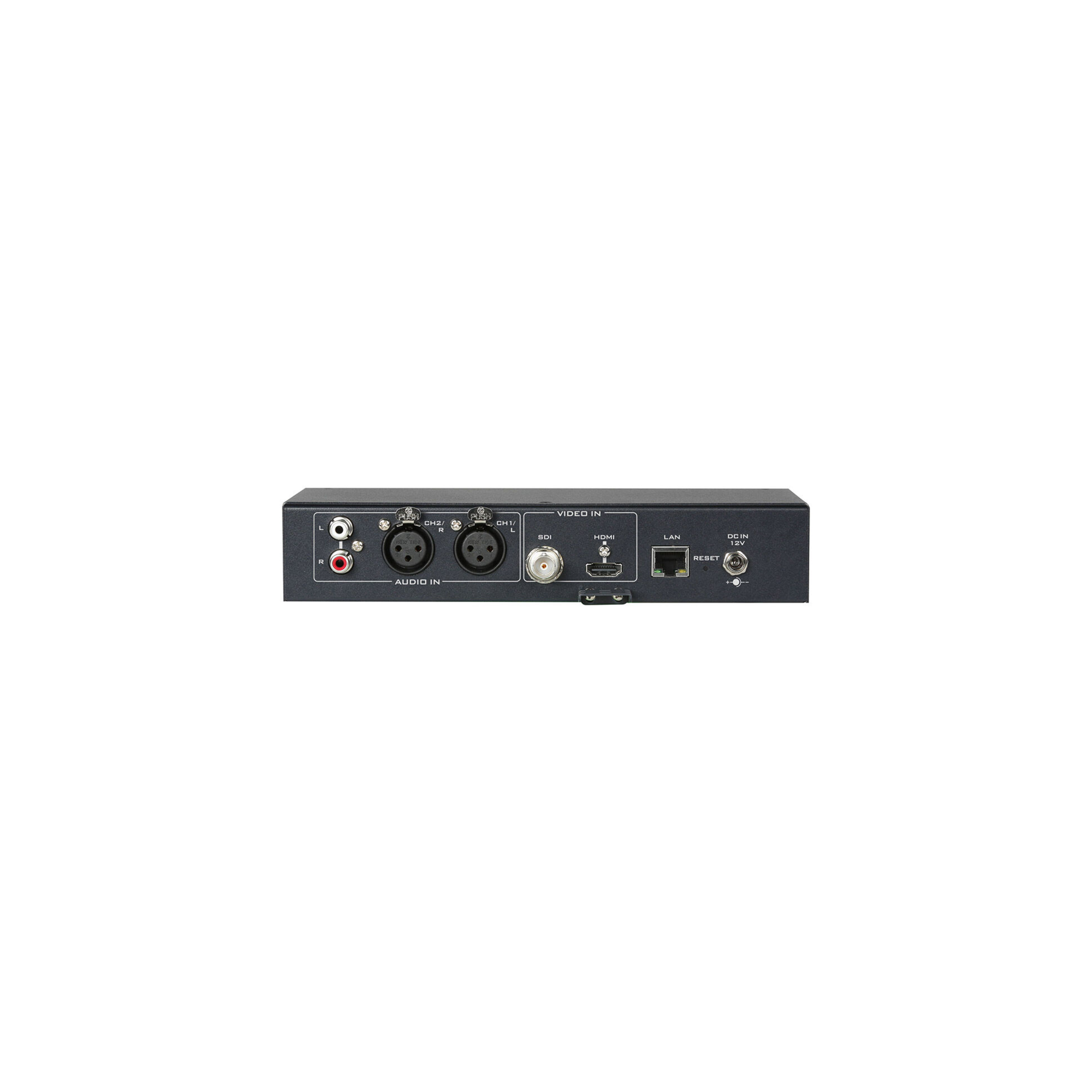

Video Inputs
1 x HDMI Female
1 x BNC (3G-SDI) Female
Audio Inputs
1 x 2RCA Stereo Analog Female
2 x XLR 3-Pin Analog Female
Video Outputs: 1 x RJ45 Female
Audio Outputs: None
Other I/O: 1 x USB-A Firmware Input
Expansion Slots: None
Latency
HDMI Input: 2 Frames
Input Video Format:
HDMI / SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Input Audio Format: Analog
Output Audio Format
Analog: 48 kHz / 16-Bit
Embedded Audio: LAN (RJ45)
HDR Compatibility: Not Specified by Manufacturer
Video IP Encoding:
H.264, RTMP, RTP, RTSP, SRT, TCP, UDP: 128 x 128 to 1920 x 1080 at 30p, 60p
Media Card Reader: 1 x SDXC (UHS-I [104 MB/s])
Wi-Fi: None
OS Compatibility Windows
*As of March, 2022: Check with manufacturer for the most up-to-date compatibility
Power I/O: 1 x Barrel (12 VDC) Input
Power Consumption
Device: 11 W
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions: 8.7 x 3.7 x 1.9" / 220 x 95 x 47 mm
Weight: 1.7 lb / 780 g

Datavideo H.264 Dual Streaming Encoder/Recorder
12 VDC Power Supply
