VM-8H

Name: VM-8H
Brand: Kramer
SKU: VM-8H
Price: 1574121 NGN
Availability: OutOfStock

Kramer

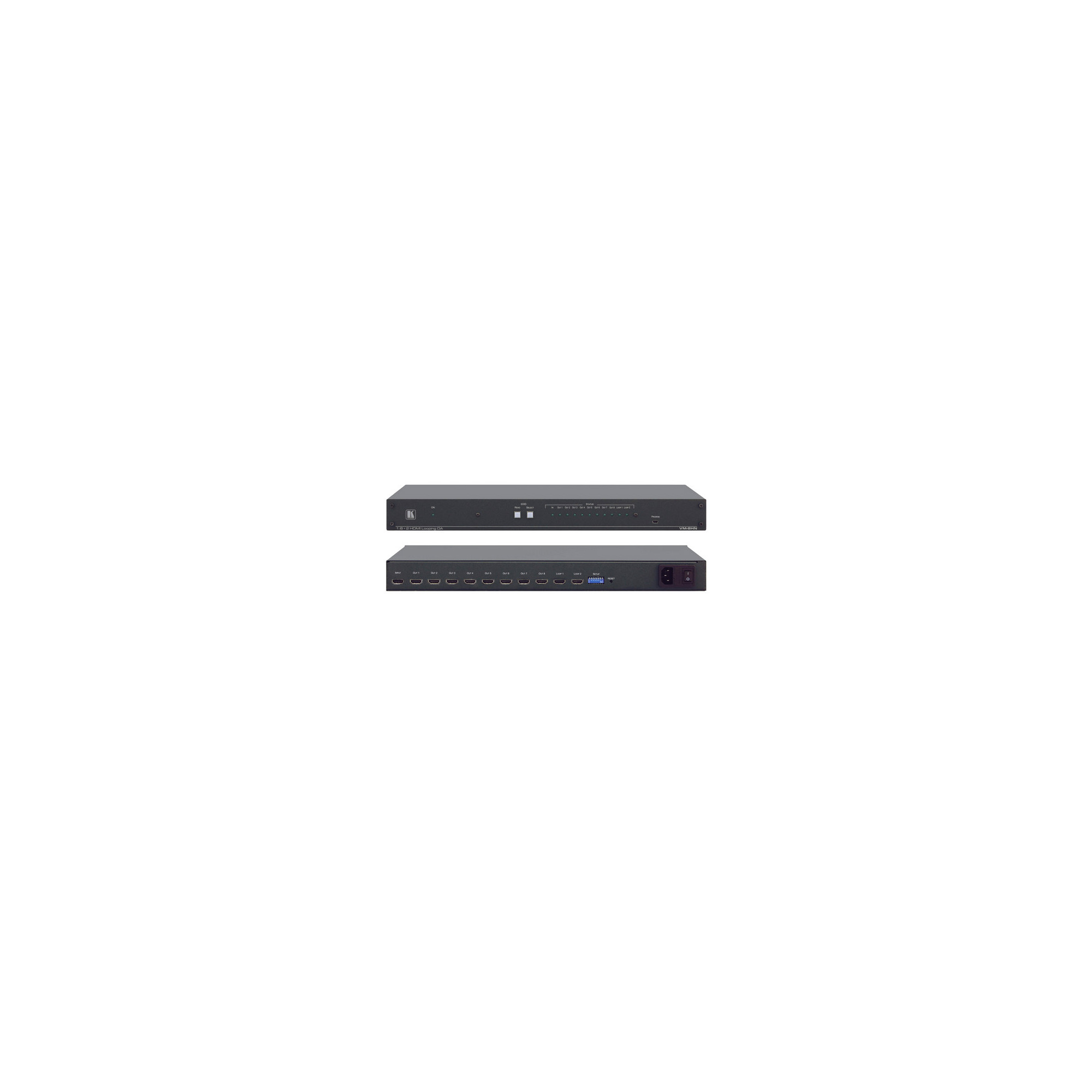

1:8 HDMI 4K Distribution Amplifier 1.3 HDCP

go to the technical sheet

₦ 1,574,121.00

₦ 1,464,299.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

The VM-8HN is a distribution amplifier for 4K UHD HDMI signals. It reclocks and equalizes the signal and distributes it to four identical outputs. It supports resolutions up to 4K@60Hz (4:2:0) UHD and 1080p @60Hz.

Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
Max. Resolution - Up to 4K @60Hz (4:2:0) UHD and WUXGA.
HDTV Compatible.
HDCP Compliant 1.3
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
EDID Capture - Copies and stores the EDID from a display device.
HDMI Support - Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 multi-channel audio.
Active Input & Output LED Indictors.
Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Applicazioni:
Home theater, presentation and multimedia applications.
Rental and staging.

SPECIFICATIONS
====================
INPUT: 1 HDMI on HDMI connector
OUTPUTS: 8 output HDMI and 2 loop output HDMI on HDMI connectors

VIDEO
Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Up to 4K @60Hz (4:2:0) 24bpp resolution
HDMI 2.0 and HDCP 1.3 signal compliance

CONTROLS: EDID SELECT and READ buttons, DIP switches

INDICATION LEDS: OUTPUTS 1 to 8, LOOP 1 and 2 and ACTIVE input LED

POWER SOURCE: 100-240V AC, 50/60Hz 28VA

POWER CONSUMPTION: 00-240V AC, 50/60Hz 26VA

ENCLOSURE: Full 19" Rack 1U size, Aluminium type

COOLING: Fan ventilation

OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F)

HUMIDITY: 10% to 90%, RHL non-condensing

INCLUDED ACCESSORIES: Power cord, rack ears

PRODUCT DIMENSION: 19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H

PRODUCT WEIGHT: 1.5kg (3.3lbs) approx

SHIPPING DIMENSION: 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT: 2.5kg (5.5lbs) approx
