DZOFilm

6970604941105
20-70mm T2.9 Linglung Cinema Lens - Micro Four Thirds Mount
go to the technical sheet
€ 1.833,65

€ 1.705,72 VAT excl.

Available in 13 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

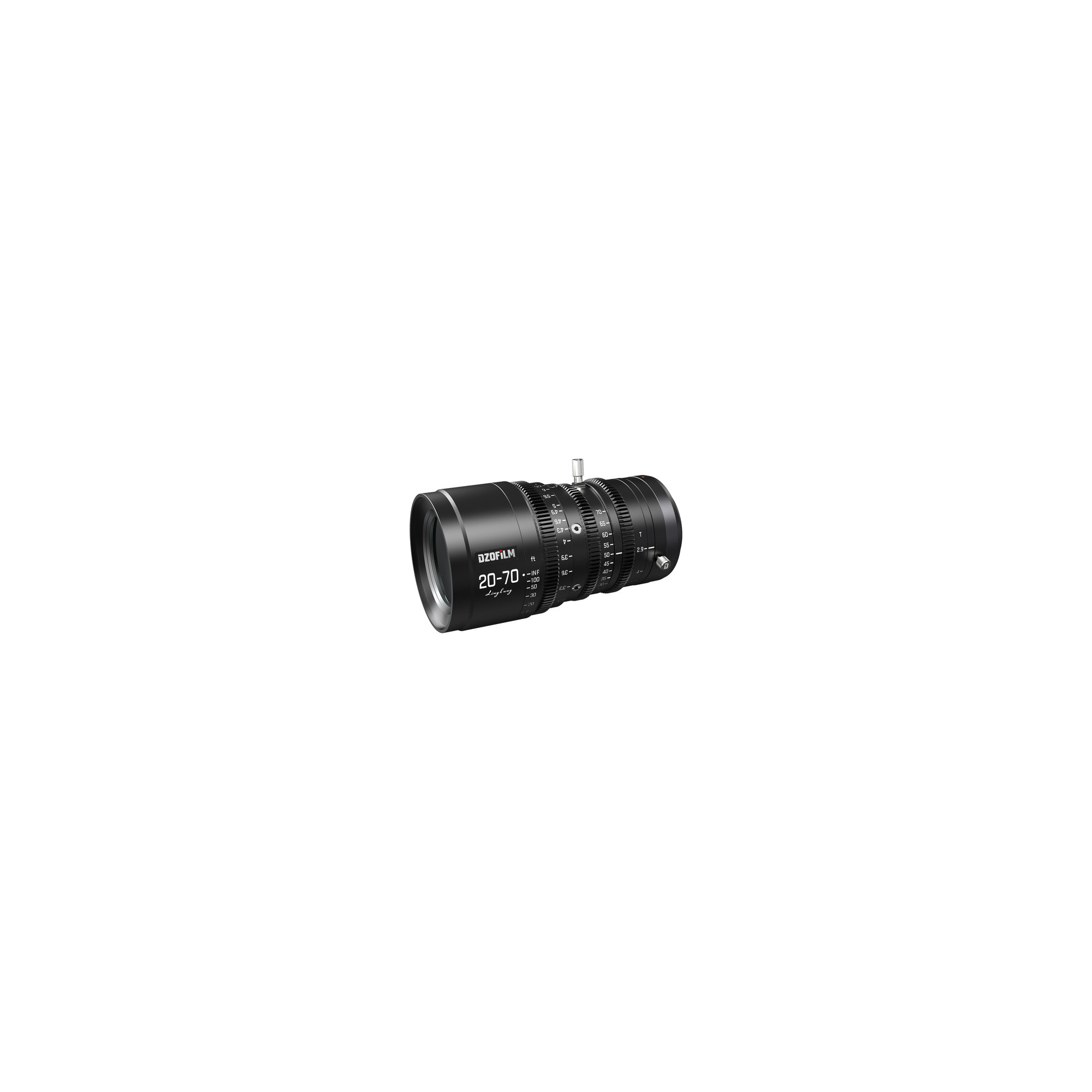

A parfocal cine lens, the DZO 20-70mm T2.9 MFT Lens from DZOFilm is designed to maintain focus as you zoom in or out. Although parfocal lenses can have some small focus changes, the amount is minimal and you can keep overall focus consistency throughout the zoom range.

In addition to this, the lens has near-zero breathing, ensuring consistency in framing, and it provides rounded highlights thanks to a 12-blade iris. True to its cine design, it has a focus rotation of 270° and offers 26 focus marks along the range. It also has an all-metal housing, so it's a durable lens. It has a two-sided focus scale, featuring both imperial and metric measurements. Back focus adjustment of 19.2mm in small increments allows you to efficiently switch this lens between different MFT-mount cameras.


Focal Length 20 to 70mm
Lens Mount Micro Four Thirds
Format MFT
Image Circle 21.6 mm
Maximum T-Stop T2.9
Minimum T-Stop T22
Diagonal Angle of View MFT: 57.6 to 17.9°
Horizontal Angle of View MFT: 47.5 to 14.3°
Minimum Focus Distance from Image Plane 31.10" / 79 cm
Iris Blades 12
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 270°
Iris Rotation 70°
Zoom Rotation 100°
Zoom Ratio 3.5x
Length 6.2" / 157.5 mm
Weight 2.43 lb / 1.1 kg
