DZO 10-24mm T2.9 MFT

DZOFilm

6970604941112
10-24mm T2.9 Linglung Cinema Lens - Micro Four Thirds Mount
go to the technical sheet
€ 1.833,65

€ 1.705,72 VAT excl.

Available in 13 days
Not sure if this is the right product for you? Talk to a consultant

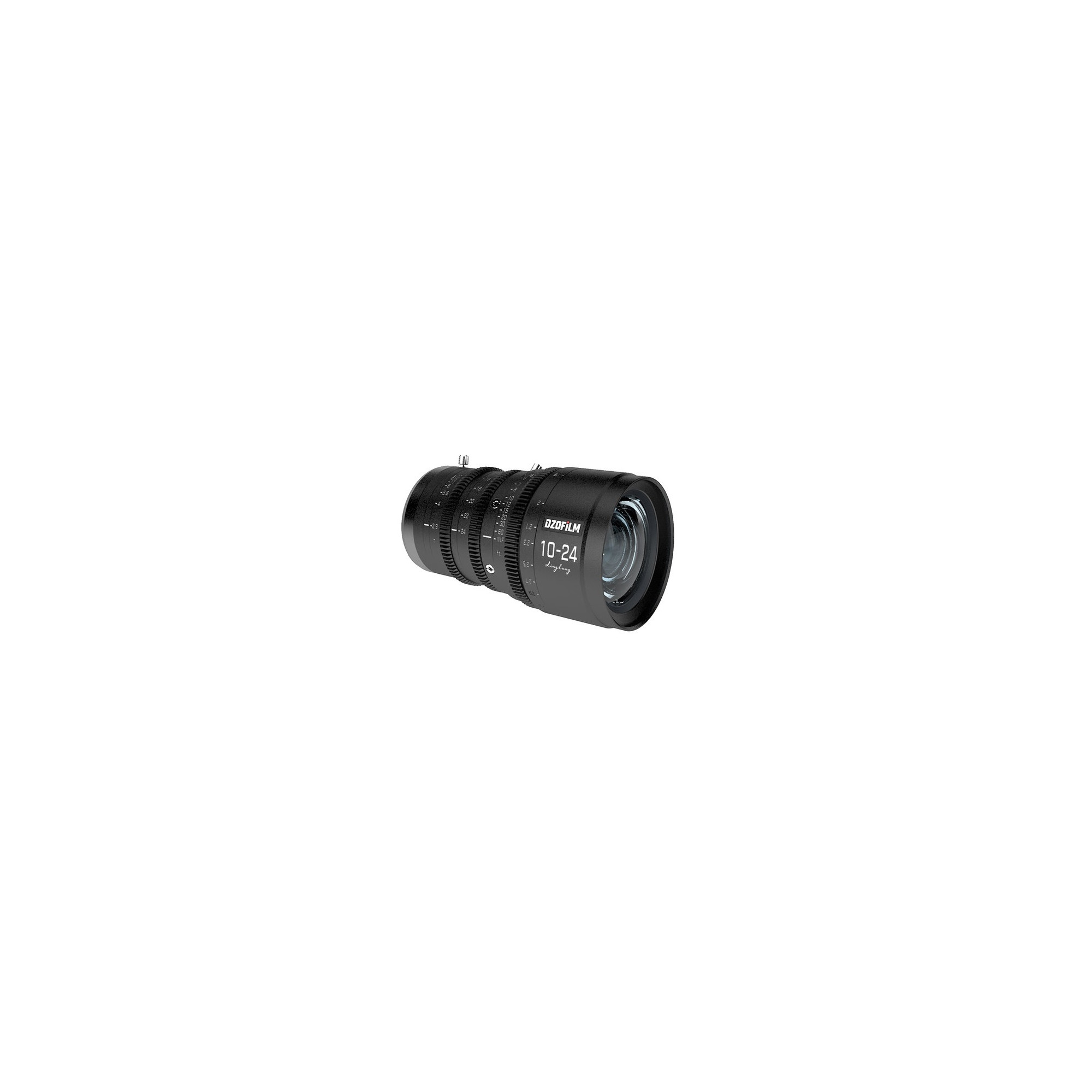

A parfocal cine lens, the DZO 10-24mm T2.9 MFT Lens from DZOFilm is designed to maintain focus as you zoom in or out. Although parfocal lenses can have some small focus changes, the amount is minimal and you can keep overall focus consistency throughout the zoom range.

In addition to this, the lens has near-zero breathing, ensuring consistency in framing, and it provides rounded highlights thanks to a 12-blade iris. True to its cine design, it has a focus rotation of 270° and offers 26 focus marks along the range. Also, back focus adjustment of 19.2mm in small increments allows you to efficiently switch this lens between different MFT-mount cameras. The lens has a durable all-metal housing.

Key Features:

Maintains focus throughout zoom range
Minimal breathing
12-blade iris; rounded highlights
T2.9-T22 aperture
270° focus rotation with 26 focus marks
19.7" minimum focus distance
All-metal housing
Imperial focus markings
Back focus adjustment for use with different cameras (19.2mm adjustable by +/-0.3mm) adjustment)
100° zoom rotation
70° iris rotation
80mm front diameter
0.8 MOD

In the Box:

DZOFilm DZO 10-24mm T2.9 MFT Parfocal Cine Lens
Front Lens Cap
Rear Lens Cap
Limited 1-Year Warranty

Focal Length 10 to 24mm
Lens Mount Micro Four Thirds
Format MFT
Image Circle 21.6 mm
Maximum T-Stop T2.9
Minimum T-Stop T22
Diagonal Angle of View MFT: 92.5 to 49.3°
Horizontal Angle of View MFT: 79.7 to 40.3°
Minimum Focus Distance from Image Plane 19.69" / 50 cm
Iris Blades 12
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 70°
Zoom Rotation 100°
Zoom Ratio 2.4x
Length 6.11" / 155.1 mm
Weight 2.43 lb / 1.1 kg
