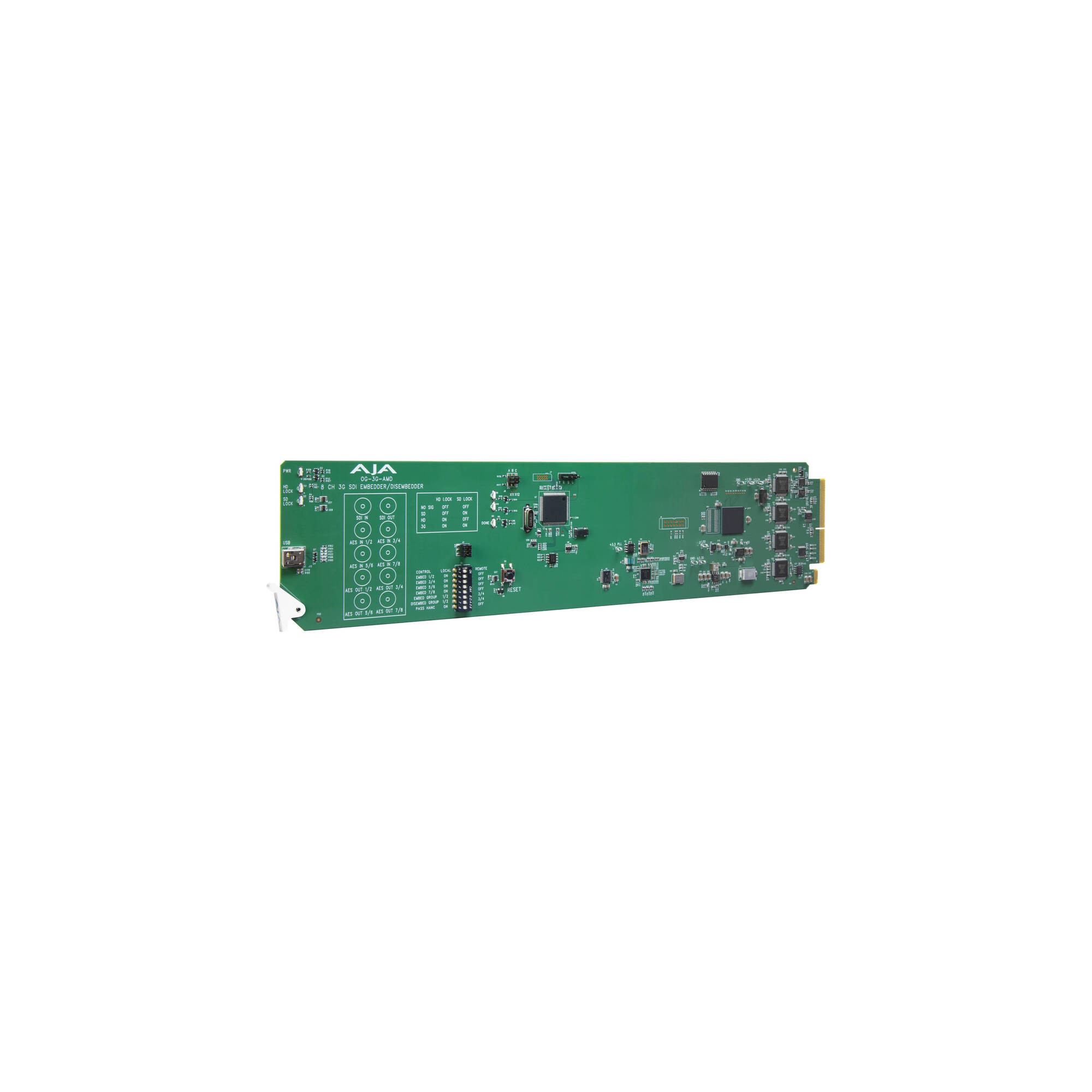

OG-3G-AMD

3G-SDI 8-Channel 24-bit AES Embedder/Disembedder, DashBoard Support

Automatic Video Detection/Configuration
Pass, Remove, or Override Embedded Audio
Inputs: 1 x 3G-SDI, 4 x AES
Outputs: 1 x 3G-SDI, 4 x AES
Supports Sample Rate Conversion
Configure via Software or DIP Switch
Hot Swappable

Embed, disembed, or pass audio through with your 3G-SDI supported video signal with the AJA openGear 3G-SDI 8-Channel 24-Bit AES Embedder/Disembedder Card. The card is compatible with the openGear standard, taking up two slots in your computer, and it features one 3G-SDI BNC input along with one 3G-SDI BNC for output. AES audio is input for embedding via four BNC connectors for eight channels of input, and four BNC connectors provide eight channels of AES disembedded audio.

Audio inputs are sample rate converted to 48 kHz, and the four audio outputs are always active and always provide disembedded audio. You can choose to embed audio into the video signal or pass the original embedded audio through. Audio embedding can be selected on a channel-pair base. Control of the board is via either DIP switch or downloadable Dashboard software available for macOS, Windows, or Linux.
