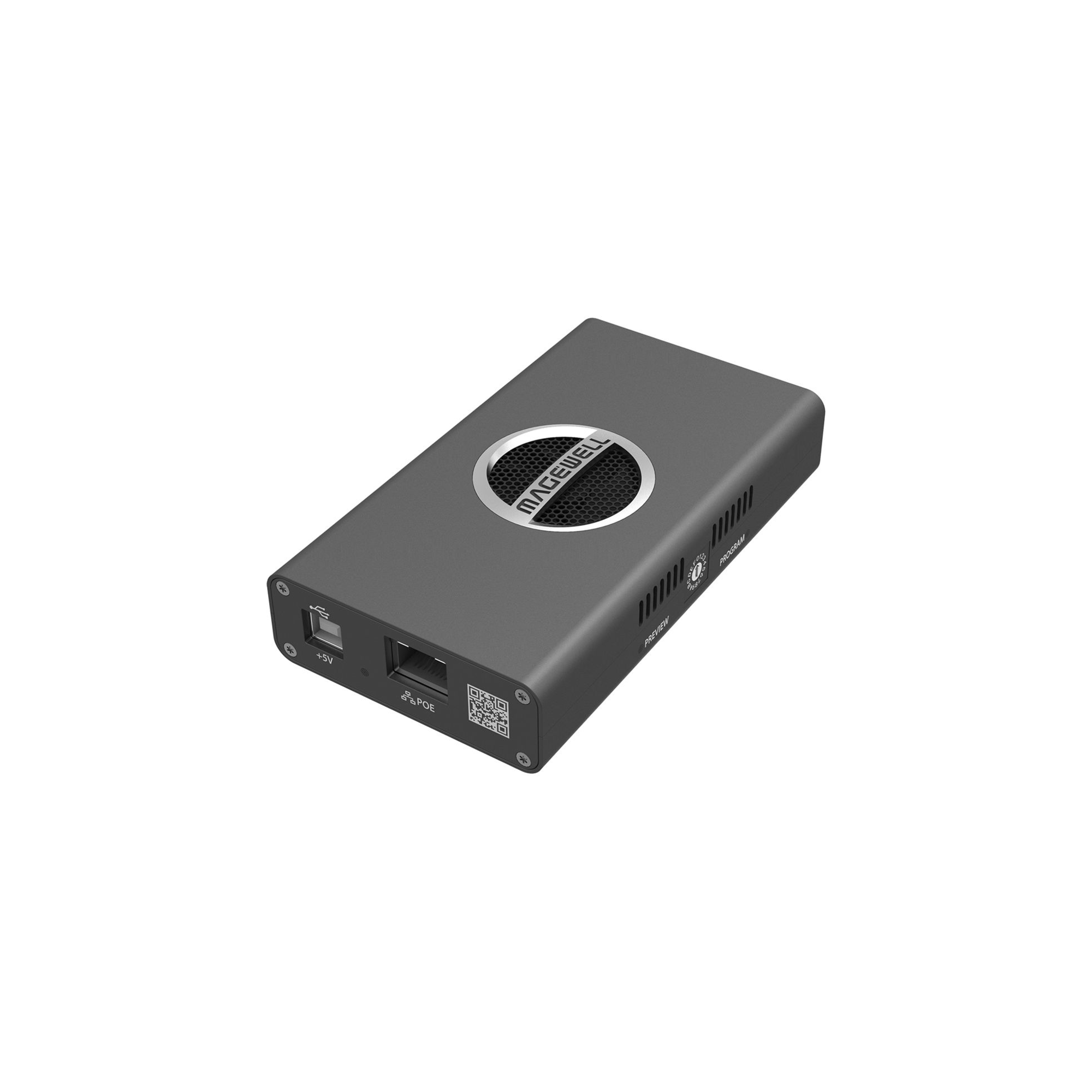

Pro Convert HDMI Plus

Magewell Pro Convert HDMI Plus - 64020

Convert HDMI video to an NDI stream with the Pro Convert HDMI Plus video signal converter from Magewell.
Pro Convert features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps.
The RJ45 Gigabit Ethernet port supports encoded NDI output up to 2048 x 2160 8-bit 4:2:2 at 120 fps.

The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet.
The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs.
The LEDs also indicate power, output, and input signal status.

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port.
The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port.
A 1/4"-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand.
Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.
