3G-AMA-R0
AJA
€ 1.157,33 VAT excl.
The 3G-AMA is a 4-Channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.
Video Input Digital: x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital: 1x 3G-SDI BNC, SMPTE-259/292/424
Audio Inputs and Outputs
AES PCM audio, 1x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs

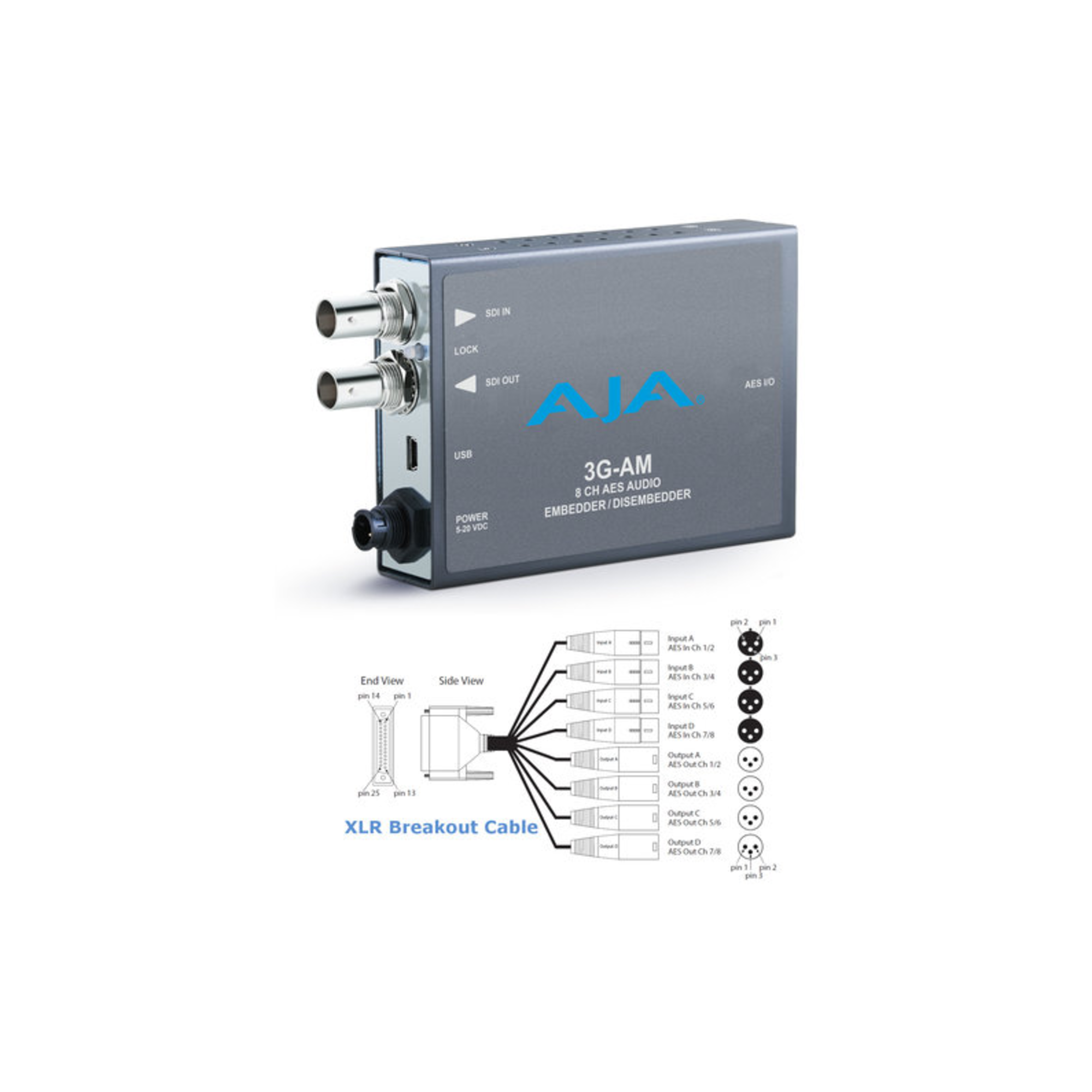

Breakout cable provided with 1x 25 pin D male connector:
4x XLR female input breakout connectors (AES3 110 ohm)
4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats: AES3-2003, SMPTE 337M
Digital Audio Converters: 24-bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48 KHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous
Incoming embedded audio can be passed, removed, or overridden
Up to 16-Channels supported
NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
Embed Path Audio Latency
(time measured between audio input and video output connector):
1500 usec (SRC ON)
400 usec (SRC OFF)
Disembed Path Audio Latency
(time measured between video input and audio output connector):
210 usec
Analog Audio Levels. Configured via Mini-Config software:
Pro 1: 0 dBfs = +24 dBu
Pro 2: 0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu
User Controls
External DIP switch
USB port used with Mini-Config software application to configure device via PC/Mac
Size (w x d x h): 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Power: 5-20V DC, 5 watts power supply required, included with purchase
