CRV88-9-T-R0

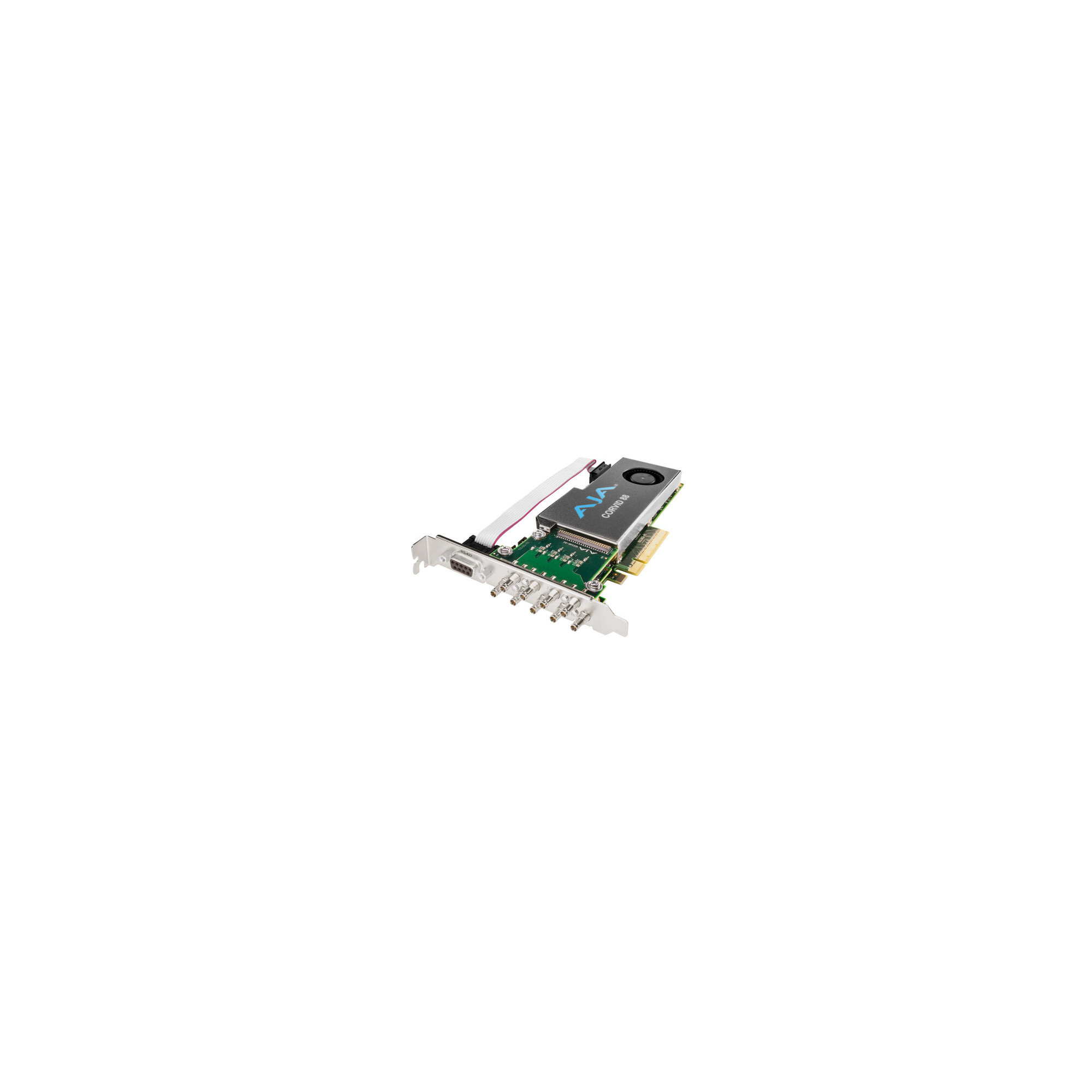

Corvid 88 - PCIe 2.0 8-Channel I/O, raster independent channels, 4K capable, tall (standard) PCIe bracket, includes 9x 101999-02 cables

The Corvid 88 8-Channel 3G-SDI I/O Card from AJA is an 8-lane PCIe 2.0 card that delivers multi-channel video and audio input/output. It accepts up to eight SD/HD/3G-SDI signals on DIN 1.0/2.3 connections which can be programmed as either input or output, with each able to support a different video format -- provided all formats use the same clock timing. Connections can also be linked together to support Dual Link HD-SDI for high frame-rate 1080p/2K and Quad Link 3G-SDI for Ultra HD (3840 x 2160) / DCI 4K (4096 x 2160) formats.

The Corvid 88 supports 24-bit embedded SDI audio using four independent 16-channel 48 kHz embedded audio engines. For control, an external RS-422 port is provided, which allows control of external devices for frame accurate ingest and layoffs. Other features include four independent Mixer/Keyer widgets and a switchable LTC/reference input for Analog Color Black or HD Tri-Level Sync. A second LTC input is available on an internal header for providing additional reference to the Corvid 88.

Part of AJA's Corvid line of products, the Corvid 88 is designed for integration into solutions offered by third-party developers including Colorfront, Codex, Quantel, Autodesk, and others. It allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it ideally suited for ingest and playout servers.

PCIe 2.0, 8-lane
Up to eight independent SD/HD/3G-SDI channels on DIN 1.0/2.3 connectors
Supports SD, HD, 2K, Ultra HD, and DCI 4K resolutions
Connections can be linked to support Dual Link
High frame up to 50p and 60p
8/10-bit YCbCr and RGB frame buffer formats
Frame Stores (In or Out)
Four independent Mixer/Keyer widgets
Four independent, 16-channel, 48 kHz, SDI-embedded audio I/O engines
Analog Color Black or HD Tri-Level Sync
Color Space converters
Eight 1D LUTs
External RS-422 port
