2110 IP UpDownCross 12G

Name: 2110 IP UpDownCross 12G
Brand: Blackmagic
SKU: 2110 IP UpDownCross 12G
Price: 1156230 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716010008

IP Converter,3 channels of 3G-SDI input and 3 channels of separate 3G-SDI output

go to the technical sheet

₦ 1,156,230.00

₦ 1,075,562.68 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

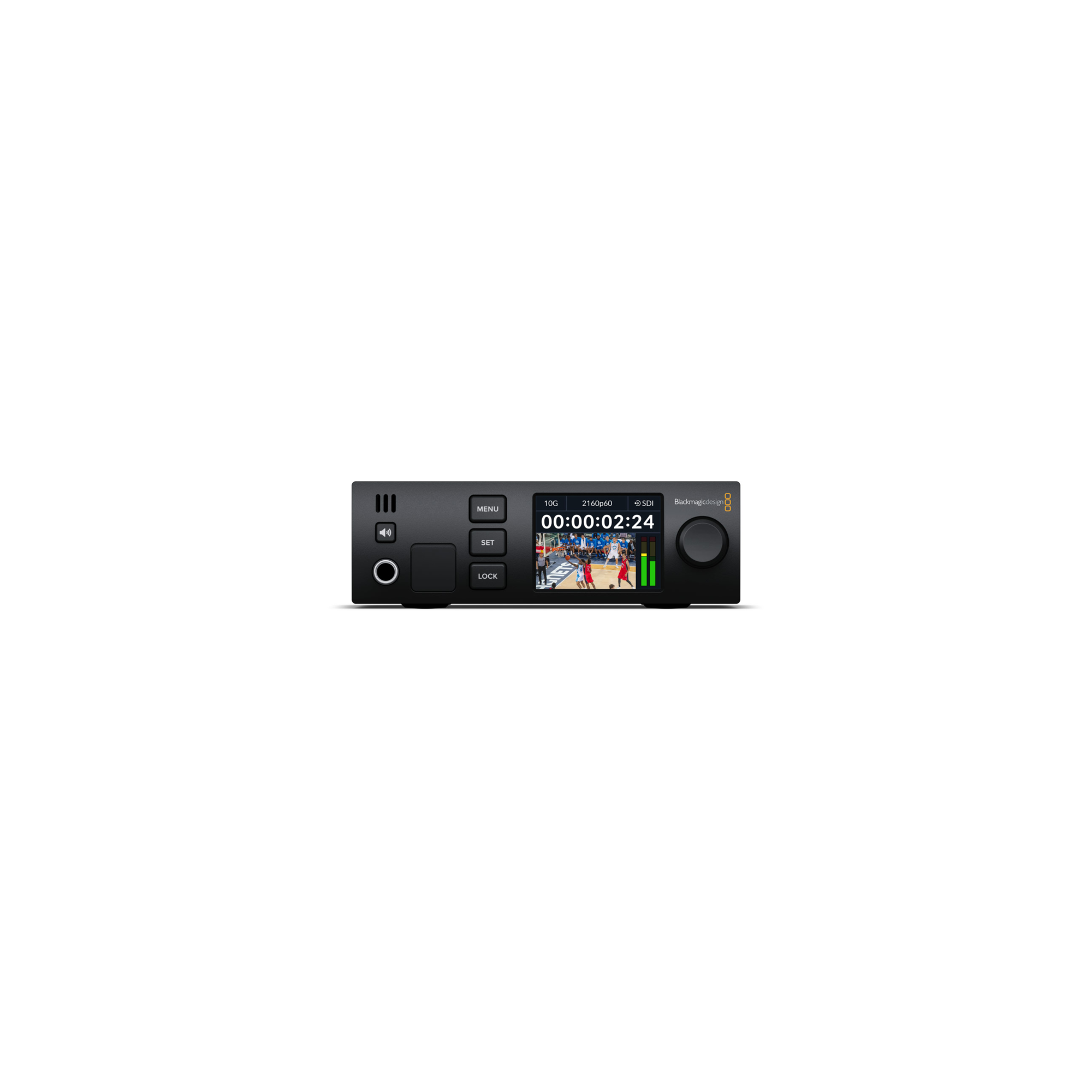

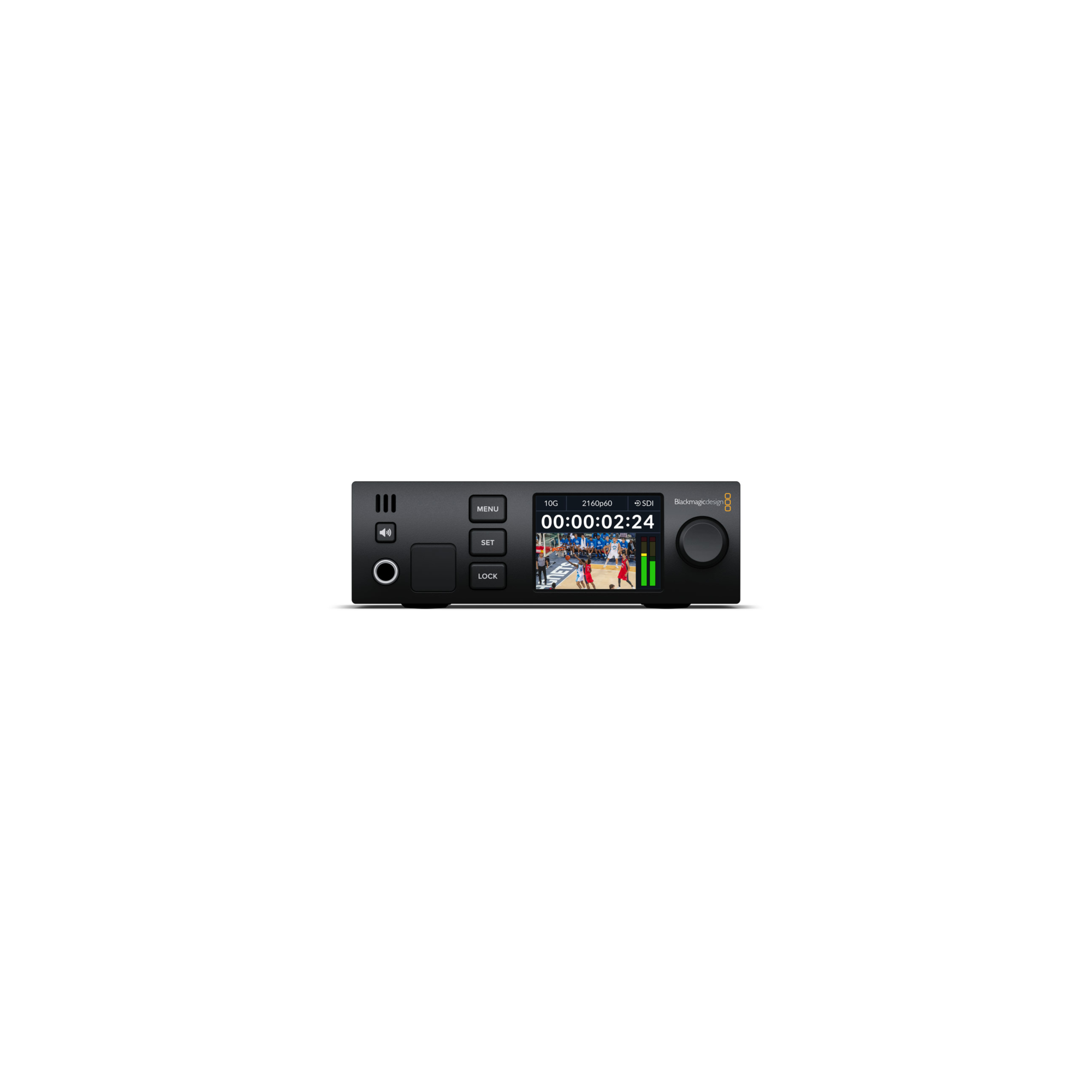

Blackmagic Professional Converter 2110 IP UpDownCross 12G, 3 Channels of 3G-SDI Input and 3 Channels of Separate 3G-SDI Output

The SMPTE-2110 3 channel HD converter is perfect for rack mounting. With 3 channels of 3G-SDI input and 3 channels of separate 3G-SDI output, you can connect up to 3 3G-SDI video devices to the SMPTE-2110 with a single converter. All 3 channels can be sent over a simple RJ-45 10G Ethernet connection, so you can use standard, low cost CAT-6 Ethernet cables. This model also includes a reference video output synchronized with PTP clock, and there is a front panel LCD for monitoring.

Professional SMPTE-2110 Broadcast Systems
Blackmagic 2110 IP Converters are designed for integrating SDI devices into 2110 IP broadcast systems.
For example, rack mount models can be installed in a rack next to the equipment they are converting.
With Blackmagic Studio cameras, Blackmagic Audio Monitor 12G G3 and SmartView 4K G3 you can build most of your SMPTE-2110 systems without the need for converters.
In addition, almost all Blackmagic SMPTE-2110 IP video devices can be powered remotely!
By adding converters you can easily upgrade all your video equipment to SMPTE-2110 at a low cost. Simply connect a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

Compliant with SMPTE-2110 IP Video
Blackmagic 2110 IP products are compliant with the SMPTE-2110 IP Video standard, which defines the transport, synchronization and description of 10-bit video, audio and ancillary data over IP networks for broadcast.
They can also re-synchronize SDI inputs to a common PTP clock or lock external devices to the reference output, which is also generated by the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 for uncompressed video, SMPTE-2110-21 for traffic mode and timing, SMPTE-2110-30 for audio and SMPTE-2110-40 for ancillary data.
They also support multicast, which is an efficient way to distribute video, audio and data from a single source to multiple destinations.

12G-SDI multi-rate for SD, HD and Ultra HD
Blackmagic 2110 IP products are designed for high end television production and feature the latest 12G-SDI video connections so you can connect to traditional broadcast equipment using SDI and the new 2110 IP broadcast systems with the same product.
12G-SDI is multi-rate so you can connect to any HD or Ultra HD equipment using a single BNC connector.
Supports 720p HD in 720p50 and 59.94p standards, and 1080i HD interlaced standards in 1080i50 and 1080i59.94.
1080p support includes 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p.
12G-SDI supports Ultra HD in all television standards, including 2160p at 23.98, 24, 25, 29.97, 50, 59.94 and 60p.

Connections
SDI Inputs: 1
Loop SDI Outputs: 1
SDI Outputs: 2
SDI Transmission: SD, 1.5G, 3G, 6G and 12G
HDMI 2.0 Video Outputs: 1
SMPTE 2110 Input / Output: 1 x 10G Ethernet
SMPTE ST 2110 IP Audio Inputs / Outputs: 16 channels of embedded audio input and output to ST-2110 IP video via 10G Ethernet.
SDI Audio Inputs: 16 channels of embedded audio.
SDI Audio Outputs: 16 channels of embedded audio.
HDMI Audio Inputs: 8 channels of embedded audio.
HDMI Audio Outputs: 8 channels of embedded audio.
Analog Audio Outputs: 1 x 6.35mm headphone jack.
Webcam Outputs: 1 x USB-C up to 1080p60
Reference In: 1
Reference Outputs: 1
Ethernet: Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration, and software updates.
Computer interface: USB-C for webcam output, updates and configuration

Standard Video
SD video standards: 525i59.94 NTSC, 625i50 PAL
2K video standards:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD video standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE Compliant:
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108-1
Compatible SDI Metadata: RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling: Television standard sampling rate of 48 kHz and 24 bits.
Color Precision: 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color space: Rec. 601, Rec. 709, Rec. 2020
HDMI HD Video Standard:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD HDMI video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62
4K HDMI video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Accuracy: 4:2:2
HDMI Color Space: YUV

IP Video Compliance
SMPTE 2110-20 (Uncompressed Video): IGMP v2
SMPTE 2110-21 (Traffic Management):
- Sender: Narrow
- Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM): Audio Compliance Level: Level C
SMPTE 2110-40 (Ancillary Data): Full access to the entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning, and HDR static metadata.
Codec: Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
PTP Protocol:
- IEEE 1588-2008 (PTP v2)
- ST 2059-1
- ST 2059-2
NMOS IS-04 for discovery and recording:
- v1.3.2
- Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 connection management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver Capability

Control
Integrated Control Panel: Integrated control panel with 3 buttons, rotary control and 2.2-inch color display.
External Control:
- RJ-45 10Gb/s Ethernet and USB-C.
- REST API via Ethernet for external control via HTTP when used with REST client applications

Display
Built-in 2.2-inch LCD display for monitoring video, audio, and status, as well as menu settings.

Power Requirements
Power: 1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs:
- 1 x IEC C14 socket for AC power.
- 1 x 12V DC Input
Power Consumption: TBC

Environmental Specifications
Operating Temperature: 0° C to 40° C (32° - 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
