OG-UDC

Name: OG-UDC
Brand: AJA
SKU: OG-UDC
Price: 1876793 NGN
Availability: OutOfStock

AJA

EAN: 0812321031065

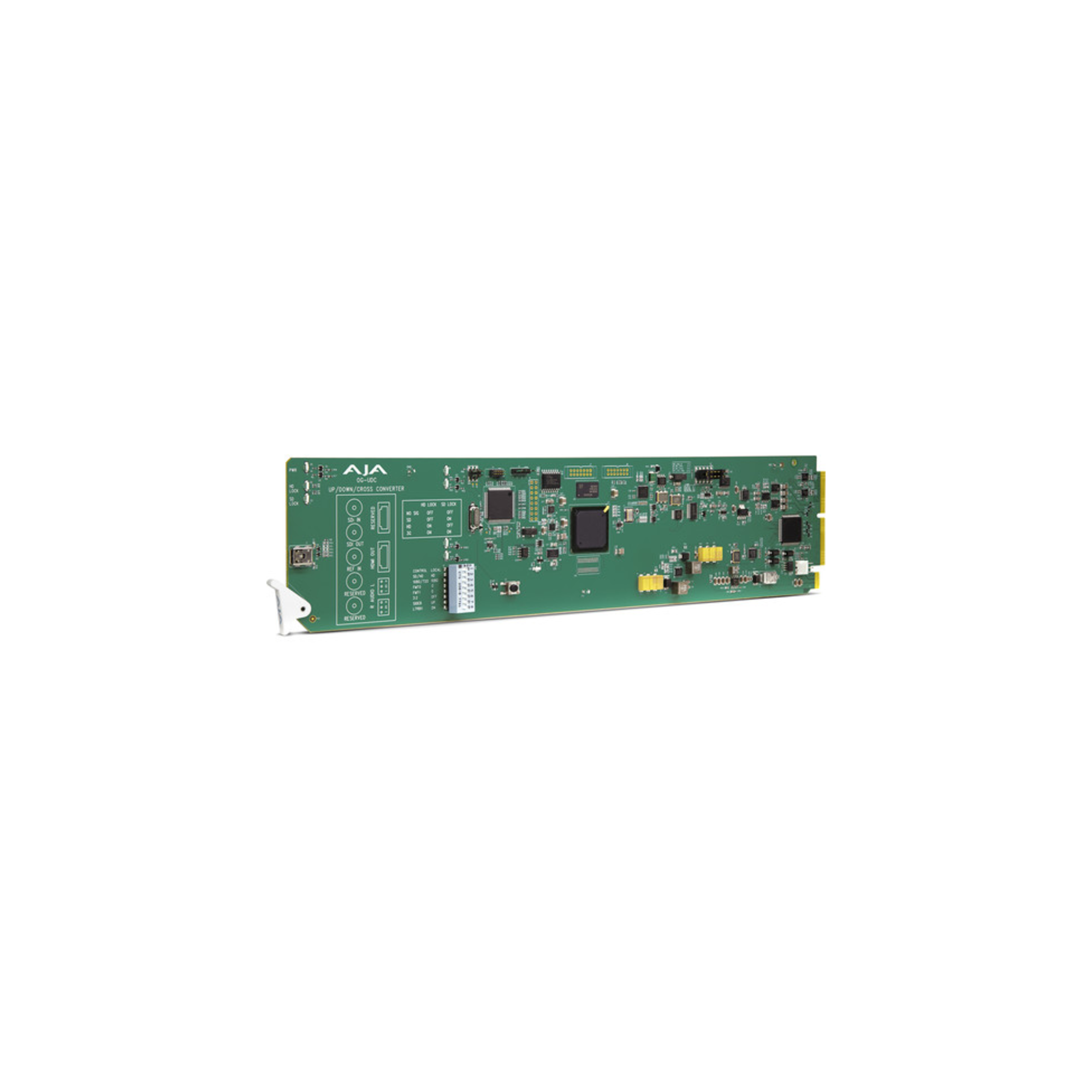

Up, Down, Cross-Converter Card with DashBoard Support

go to the technical sheet

₦ 1,876,793.00

₦ 1,745,854.28 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

AJA - Up, Down, Cross-Converter Card with DashBoard Support - OpenGear-Compatible Card able to Converts SD, HD, and 3G-SDI Formats up to 1080p50/60 with 16-Channel Embedded SDI Audio. DashBoard Network Control.

The OG-UDC 3G-SDI Up, Down, Cross-Converter Card with DashBoard Support from AJA is an openGear-compatible card that performs up, down, and cross-conversion on SD, HD, and 3G-SDI formats. Designed for use in 2 RU, high-density openGear frames, the OG-UDC is controlled by DashBoard network control software supported by Windows, macOS, and Linux operating systems.

The OG-UDC offers a 3G-SDI input and output, an HDMI output, and two 3-pin terminal block connectors for stereo analog audio output. Up to 16 channels of audio can be embedded on the 3G-SDI input and output, while the HDMI output can handle up to eight channels of embedded digital audio. AJA conversion technology ensures high image quality with resolutions up to 1080p50/60.

Key Features

° openGear compatibility
° Converts between SD, HD, and 3G HD formats
° Supports 1080p50/60
° Controlled by DashBoard network control software and external DIP switch
° 2 x 3-Pin terminal block connectors included
° 16-channel embedded SDI audio input and output
° 8-channel embedded audio on HDMI out
° Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

Note: OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported. OG-UDC passes through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

Specifications

System Connection : Proprietary
A/V Inputs
Video Inputs : 1x BNC (3G-SDI) Female
Audio Inputs : No

Video Outputs
1x BNC (3G-SDI) Female
1x HDMI (1.4) Female

Audio Outputs
2x Block 3-Pin Analog

Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 56/59.94/60 fps

Output Video Format
HDMI / SDI (10-Bit)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel

Standards
Video Standard Compliance
SMPTE: 259M/292M/372M/424M
HDR Support : No

OS Compatibility
Linux
macOS
Windows

Power
Voltage: 110-230Vac
Power Consumption : 7 W

Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Storage Temperature : -40 to 140°F / -40 to 60°C
Operating Humidity : 10 to 90% ()

General
Weight : 0.7 lb / 0.3 kg

Packaging Info
Package Weight : 1.1 lb
Box Dimensions (LxWxH) : 15.2 x 8.05 x 4"
