2110 IP SDI to HDMI 12G

Name: 2110 IP SDI to HDMI 12G
Brand: Blackmagic
SKU: 2110 IP SDI to HDMI 12G
Price: 1104364 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716010015

IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDM

go to the technical sheet

₦ 1,104,364.00

₦ 1,027,315.16 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

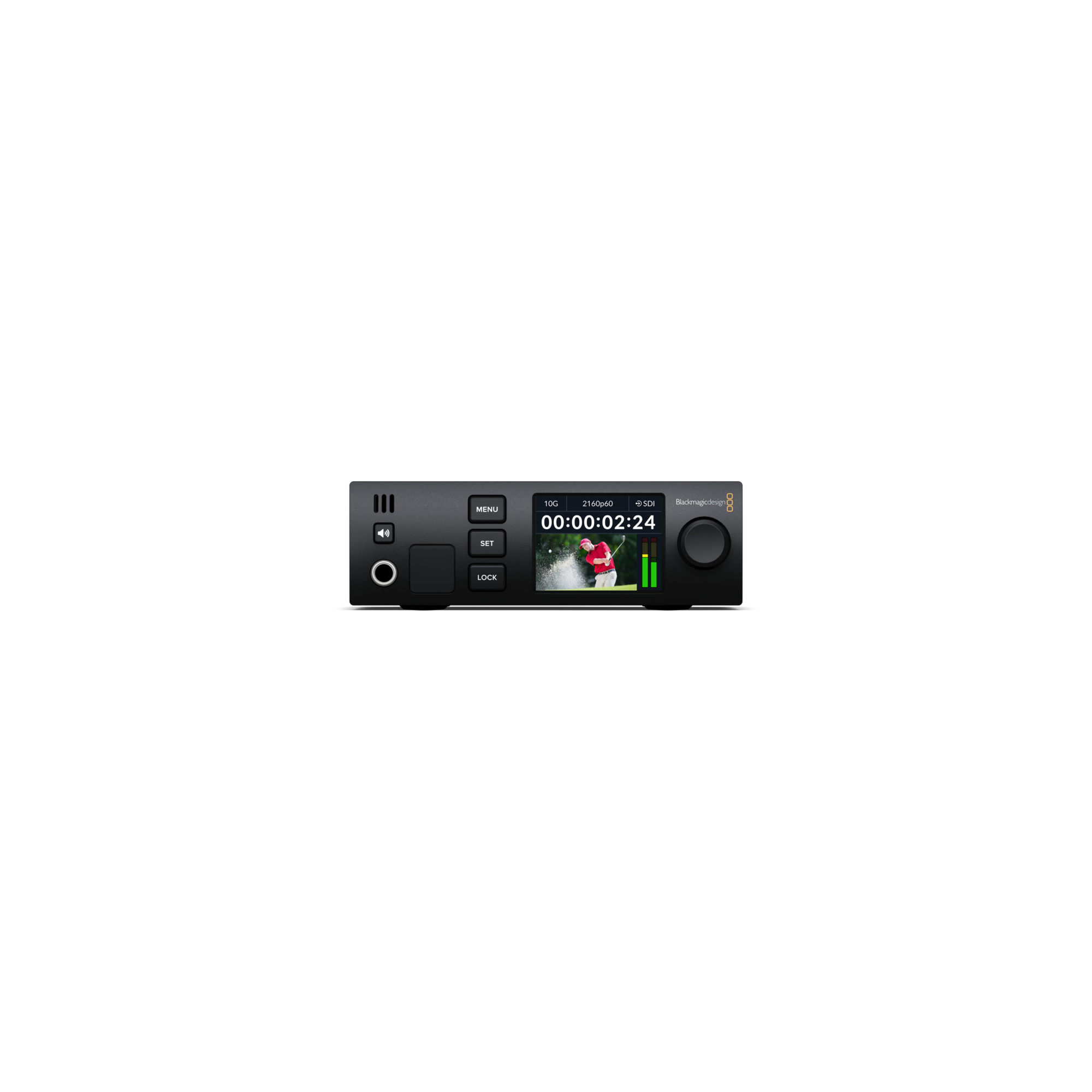

Blackmagic 2110 IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDM

This model is designed for stage lecterns, connecting switchers to computers, projectors, microphones and PA systems. It features HDMI and USB-C inputs for video, and the USB-C port can also power laptops. It also features an HDMI output for projectors and switches to video input or IP 2110 return signals. There are XLR mic inputs and XLR audio outputs for powered speakers. The RJ-45 10G Ethernet connection can power the converter and charge a computer via USB at the same time.

Professional SMPTE-2110 Broadcast Systems
Blackmagic 2110 IP Converters are designed for integrating SDI devices into 2110 IP broadcast systems.
For example, rack mount models can be installed in a rack next to the equipment they are converting.
With Blackmagic Studio cameras, Blackmagic Audio Monitor 12G G3 and SmartView 4K G3 you can build most of your SMPTE-2110 systems without the need for converters.
In addition, almost all Blackmagic SMPTE-2110 IP video devices can be powered remotely!
By adding converters you can easily upgrade all your video equipment to SMPTE-2110 at a low cost. Simply connect a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

Compliant with SMPTE-2110 IP Video
Blackmagic 2110 IP products are compliant with the SMPTE-2110 IP Video standard, which defines the transport, synchronization and description of 10-bit video, audio and ancillary data over IP networks for broadcast.
They can also re-synchronize SDI inputs to a common PTP clock or lock external devices to the reference output, which is also generated by the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 for uncompressed video, SMPTE-2110-21 for traffic mode and timing, SMPTE-2110-30 for audio and SMPTE-2110-40 for ancillary data.
They also support multicast, which is an efficient way to distribute video, audio and data from a single source to multiple destinations.

12G-SDI multi-rate for SD, HD and Ultra HD
Blackmagic 2110 IP products are designed for high end television production and feature the latest 12G-SDI video connections so you can connect to traditional broadcast equipment using SDI and the new 2110 IP broadcast systems with the same product.
12G-SDI is multi-rate so you can connect to any HD or Ultra HD equipment using a single BNC connector.
Supports 720p HD in 720p50 and 59.94p standards, and 1080i HD interlaced standards in 1080i50 and 1080i59.94.
1080p support includes 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p.
12G-SDI supports Ultra HD in all television standards, including 2160p at 23.98, 24, 25, 29.97, 50, 59.94 and 60p.

Connections
SDI Inputs: 1
Loop SDI Outputs: 1
SDI Transmission: SD, 1.5G, 3G, 6G and 12G
HDMI 2.0 Video Outputs: 1
SMPTE 2110 Input / Output: 1 x 10G Ethernet port
SMPTE ST 2110 IP Audio Inputs / Outputs: 16 channels of embedded audio input and output to ST-2110 IP video via 10G Ethernet
SDI Audio Inputs: 16 channels of embedded audio
SDI Audio Outputs: 16 channels of embedded audio
HDMI Audio Inputs: 8 channels of embedded audio
HDMI Audio Outputs: 8 channels of embedded audio
Analog Audio Outputs:
- 2 channels of professional balanced analog audio with 3-pin XLR connectors
- 1 x 6.35mm headphone jack
Webcam Outputs: 1 x USB-C at 1080p60 max
Ethernet: 10/100/1000/10G BASE-T for IP 2110 SMPTE video in and out, configuration and software updates
Computer Interface: USB-C for webcam out, updates and configuration

Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K video standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108-1
Compatible SDI Metadata: RP 188/SMPTE 12M-2 and Closed Captioning
Audio Sampling: 48kHz 24-bit sampling rate (television standard)
Color Accuracy: RGB 4:4:4 8-bit and 10-bit in all modes up to 1080p30, YUV 4:2:2 8-bit and 10-bit in all modes
Color space: Rec. 601, Rec. 709, Rec. 2020
HDMI HD Video Standard:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD HDMI video standard: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62
4K HDMI video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Precision: 4:2:2
HDMI Color Space: YUV

IP Video Compliance
SMPTE 2110-20 (Uncompressed Video): IGMP v2
SMPTE 2110-21 (Traffic Management):
- Transmitter: Narrow
- Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM): Audio Compliance: Level C
SMPTE 2110-40 (Ancillary Data): Full access to the entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M2, closed captioning and static HDR metadata
Codec: Uses the Blackmagic IP10 codec for conversions from 2160p59.94 and 2160p60 to 10G IP 2110 video
PTP protocol:
- IEEE 1588-2008 (PTP v2)
- ST 2059-1
- ST 2059-2
NMOS IS-04 discovery and recording:
- v1.3.2
- Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 connection management: v1.1.2
NMOS BCP-002-01: Asset Grouping
NMOS BCP-004-01: Receive capabilities

Control
Integrated control panel: Integrated control panel with 4 buttons, dial and 2.2 inch color display
External control:
- 10Gb/s RJ-45 Ethernet and USB-C
- REST API via ethernet for external control with HTTP when used with REST client applications

Power requirements
Power: 1 x internal 100-240V AC 50/60Hz
Power supply:
- 1 x IEC C14 AC socket
- 1 x DC +12V 5.5mm barrel with locking mechanism for external sources and batteries
Power consumption: TBC

Environmental specifications
Operating temperature: 0° to 40° C
Storage temperature: -20° to 45° C
Relative humidity: 0% to 90% non-condensing
