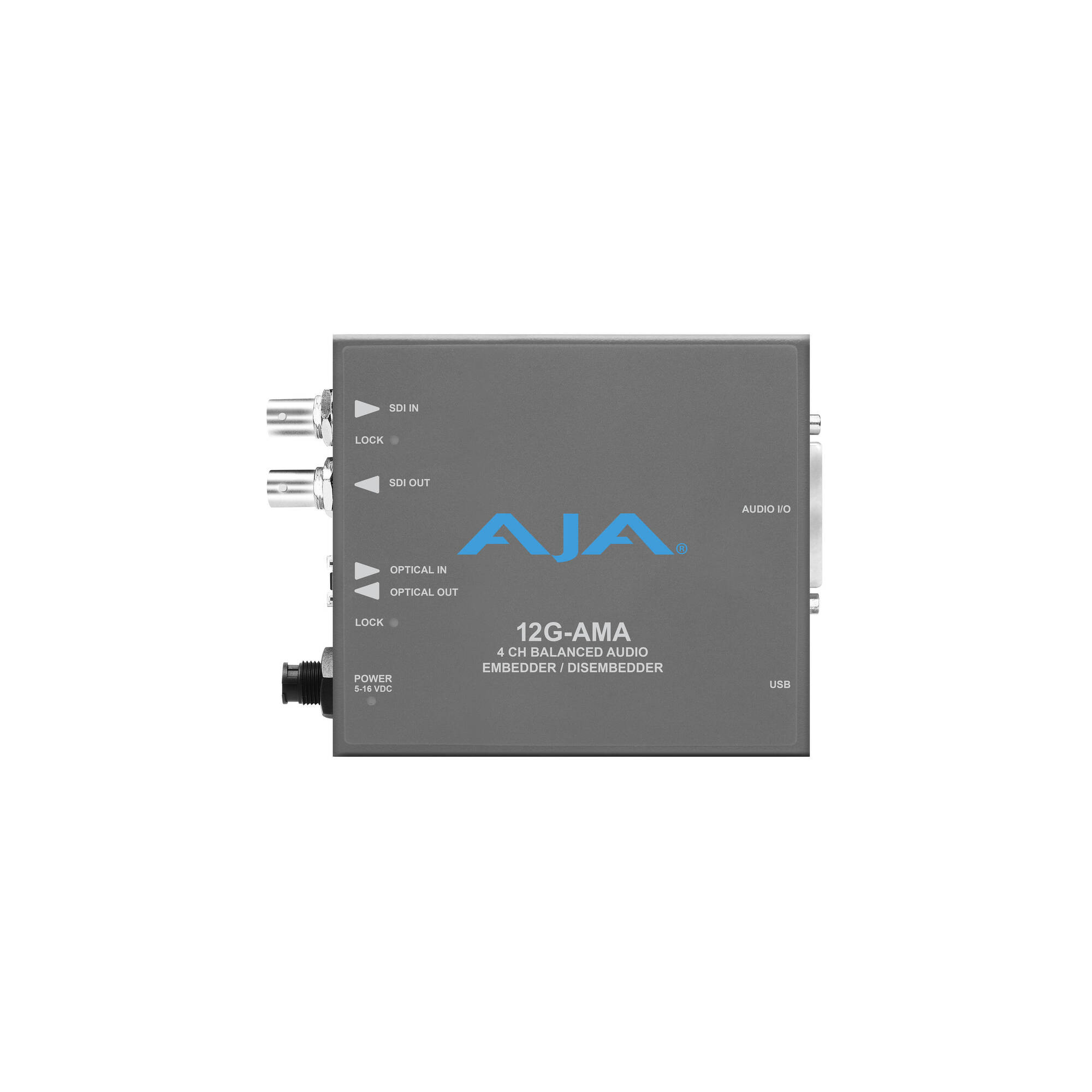

12G-AMA

4-Channel 12G-SDI balanced analog audio Embedder/Disembedder with Fiber Options, 8 XLR connectors

The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.



12G-SDI Input and Output up to 4K/UltraHD
4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
Audio Disembedding is always functional with four Analog outputs
Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
Selectable Analog audio levels
Automatically detects and configures the input video standard
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
USB connectivity via AJA Mini-Config software
Dipswitch configuration
+5-16 VDC Power
