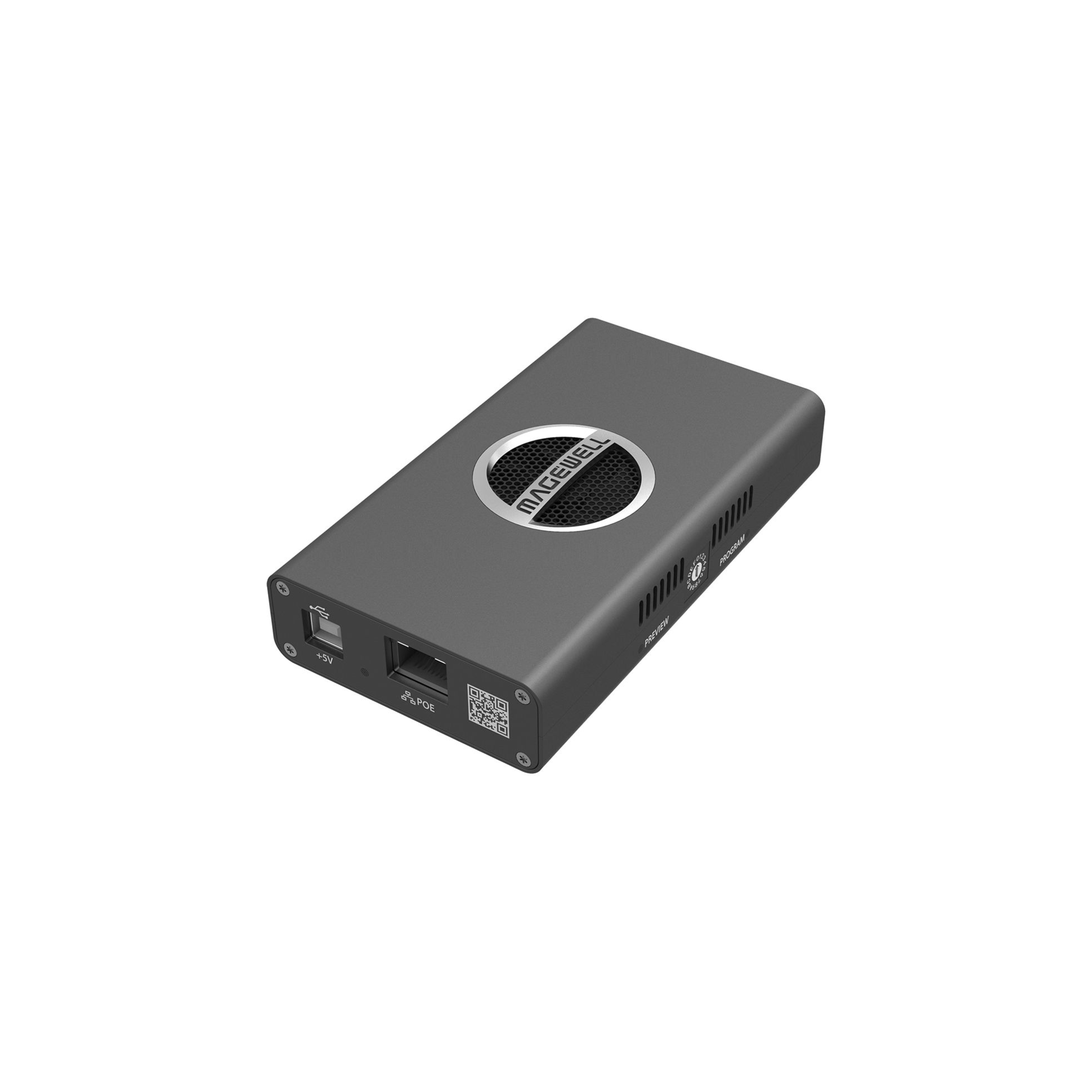

Pro Convert HDMI 4K Plus

Magewell Pro Convert HDMI 4K Plus - 64010

Convert HDMI video to an NDI stream with the Pro Convert HDMI 4K Plus video signal converter from Magewell.
Pro Convert 4K features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps.
The RJ45 Gigabit Ethernet port supports encoded NDI output up to 4096 x 2160 8-bit 4:2:2 at 60 fps.

The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet.
The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs.
The LEDs also indicate power, output, and input signal status.

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port.
The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand.
Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

One HDMI input, one HDMI loop-through output with embedded audio
Convert one HDMI signal with 8 channels of embedded audio to an NDI stream
Supports up to 4K60 input
Supports up to 4096 x 2160 8-bit 4:2:2 at 60 fps NDI encoding output
USB 2.0 Type-B 5V power and PoE via RJ45 port
Mini DIN-8 PTZ/Tally port
Support for NDI 3.x
Support for 8-channel IEC60958 audio streams
Support for extraction of audio formation information and channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
600 MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/audio InfoFrames
