LKMCSMW

Name: LKMCSMW
Brand: Link Creative
SKU: LKMCSMW
Price: 154745.18 NGN
Availability: OutOfStock

Link Creative

EAN: 8028400040237

Media Converter Pair 10/100/1000 Singlemode WDM Single Fiber

go to the technical sheet

₦ 154,745.18

₦ 143,949.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 15,474.52

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

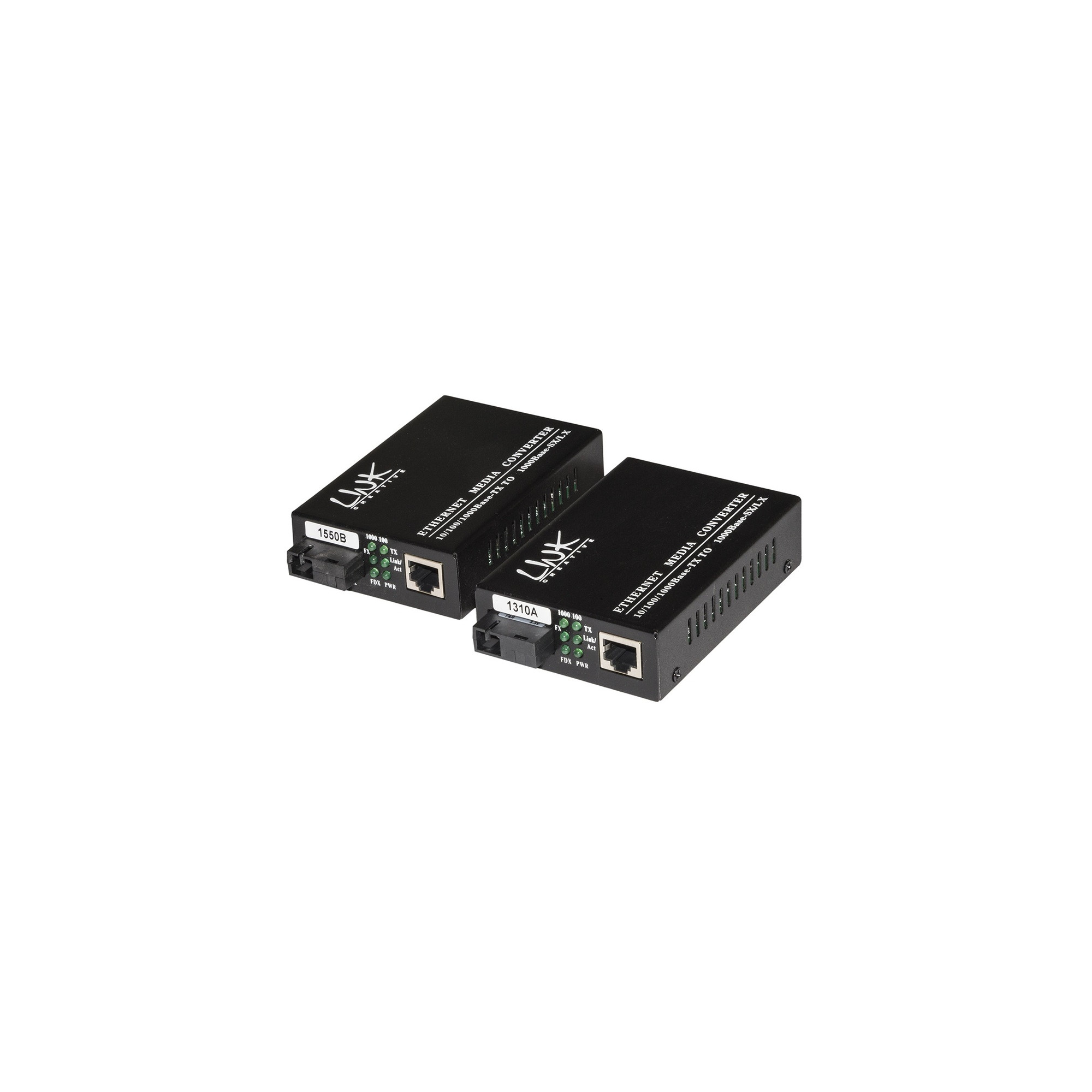

10/100/1000Mbps Singlemode WDM Bidirectional Single-Fiber Media Converter Pair 1310/1550NM

This is a pair of 10/100/1000Mbps adaptive Gigabit media converters (transmitter + receiver)
1310/1550nm single-fiber with SC fiber optic connector.
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards. It supports two connection types:
10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, converting the electrical signals of
10Base-T/100Base-TX/1000Base-T twisted pairs into 1000Base-SX/LX optical signals.
It extends the transmission distance from the maximum 100 meters achievable with copper cables to up to 100 km
via fiber optics.

Connectors: 1 RJ45 Ethernet connector, 1 SC Simplex optical connector
Adaptively converts 10Base-T/100Base-TX/1000Base-T to 1000Base-SX/LX.
Standalone and rack-mountable.
Full and half duplex modes.
Singlemode mode
Suitable for 9/125µm fiber cables
MDI/MDIX operation without the need to choose the cable.
Supports VLAN packet transmission
Supports Quality of Service (QoS) and VoIP packet transmission.
Internal protection against short circuits and overloads.
With status LED
Power supply: 5 Volts 2A
Operating temperature: 0 to 55°C
Dimensions (W x D x H): 95mm x 70mm x 26mm
Weight: 200g

1x Media converter
1x Power supply
1x Manual
