FiDO-4T-R0

Name: FiDO-4T-R0
Brand: AJA
SKU: FiDO-4T-R0
Price: 3712350 NGN
Availability: OutOfStock

AJA

EAN: 812321030143

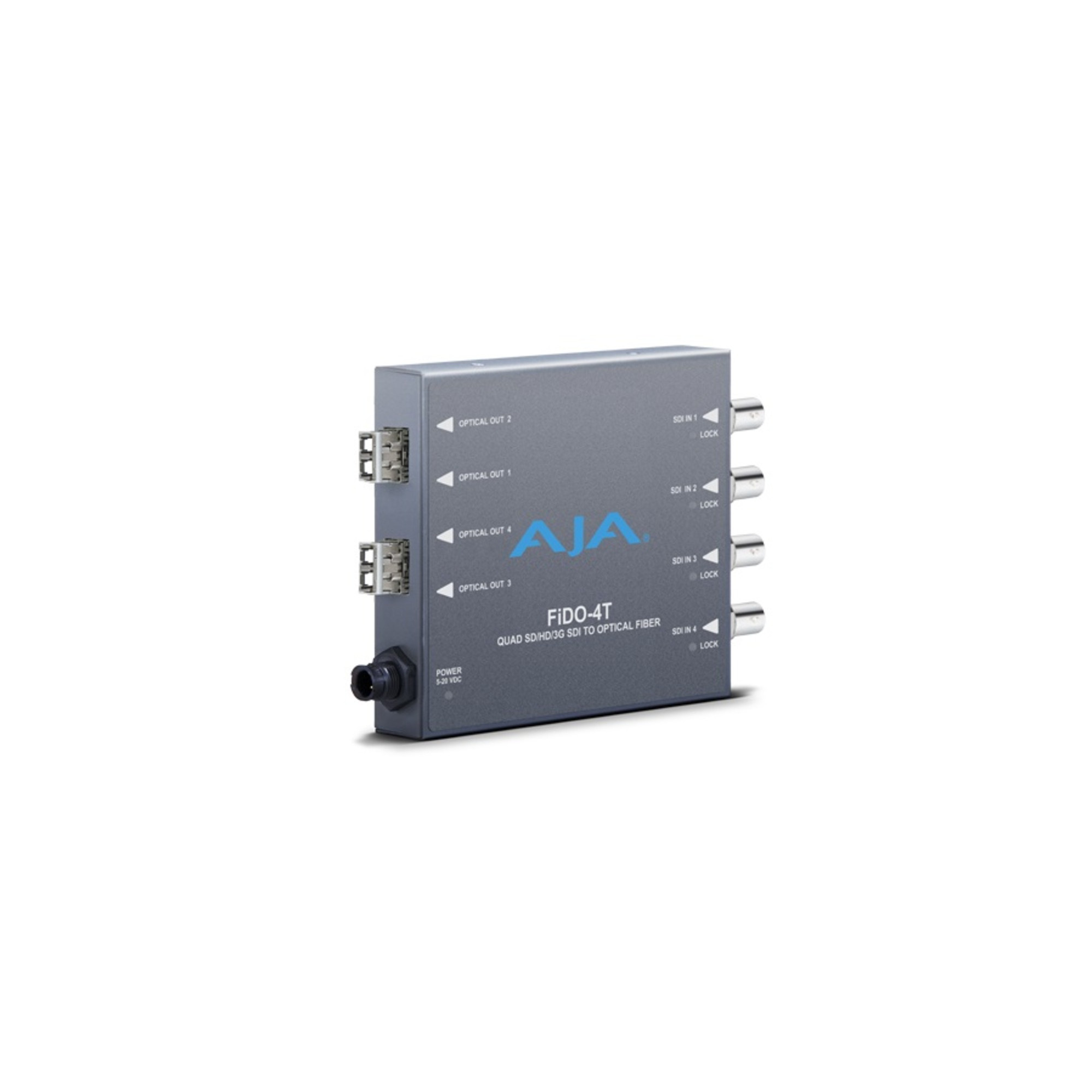

4-channel Transmitter 3G-SDI to Optical Fiber Single Mode LC

go to the technical sheet

₦ 3,712,350.00

₦ 3,453,349.00 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

AJA FiDO-4T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:
° 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter
° 4 simplex or 2 duplex output connections (LC connector)
° 4 independent channels of 3G/HD/SD-SDI input
° 4K/UltraHD-SDI over 4 fiber links
° Uses 5-20VDC power (DWP-U-R1 universal power supply included)

Specifications:

Video Format
150 Mbps - 3 Gbps, format agnostic
Video Input Digital
4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital
4-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)

Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked

Dimensions (WxDxH)
4.6 x 4.02 x 0.85" (117 x 102.11 x 21.6mm)

Weight
0.8Lbs (0.4kg)

Power
5 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment
Safe Operating Temperature: 0° to 40°C (32° to 104°F)
Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: <3,000 meters (<10,000 feet)
