V2DIGITAL-R0

Name: V2DIGITAL-R0
Brand: AJA
SKU: V2DIGITAL-R0
Price: 998244 NGN
Availability: OutOfStock

AJA

Convertitore Analog Video to Digital, HD/SD-SDI

go to the technical sheet

₦ 998,244.00

₦ 928,599.00 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

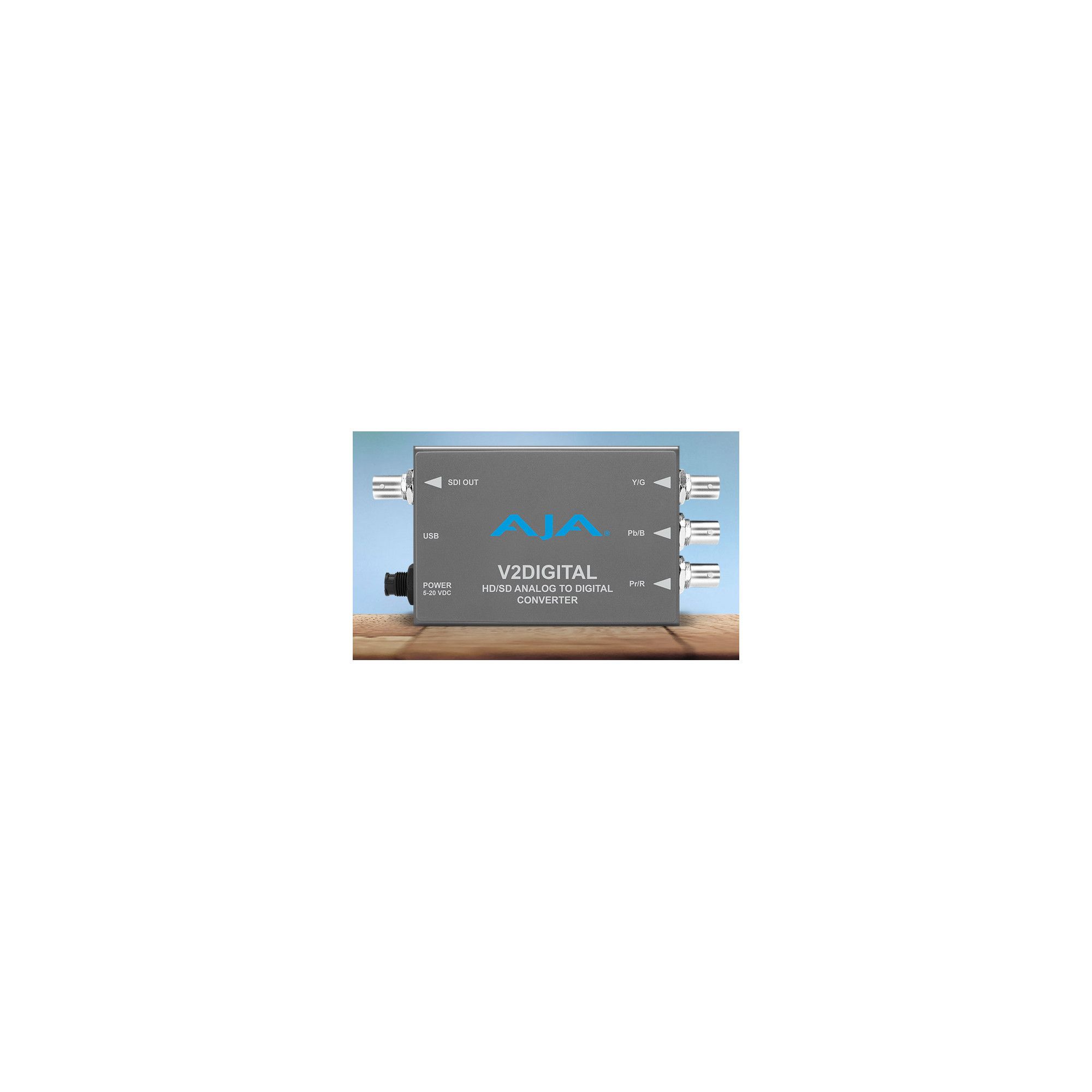

V2Digital is a high-quality, cost-effective analog to digital video converter that's perfect for facilities needing to integrate signal types. V2Digital provides AJA's high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Features

- 10-bit AJA digital to analog conversion
- Low power, compact size
- HD/SD-SDI Output
- YPbPr/RGB Component, Composite, S-Video input
- Configure via DIP switch or USB port and supplied Mini-Config software
- Five year warranty

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only analog to digital signal conversion is supported.

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only analog to digital signal conversion is supported.
Video Formats:
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25
(HD) 720p 50, 59.94, 60
(SD) 625i
(SD) 525i

Input:
HD component YPbPr, RGB (SMPTE-274), BNC
SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
Outputs:
HD/SD-SDI, SMPTE-259/292/296M, 1x BNC

User Controls:
External Dipswitch
Control (Local/Remote)
Component/Composite (SD Only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD Only)

General
Size (w x d x h): 5.1" × 2.4" × 1.0" (129.54 × 60.96 × 25.4 mm)
Power: +5-20 VDC, 3 watts

Environment:
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
