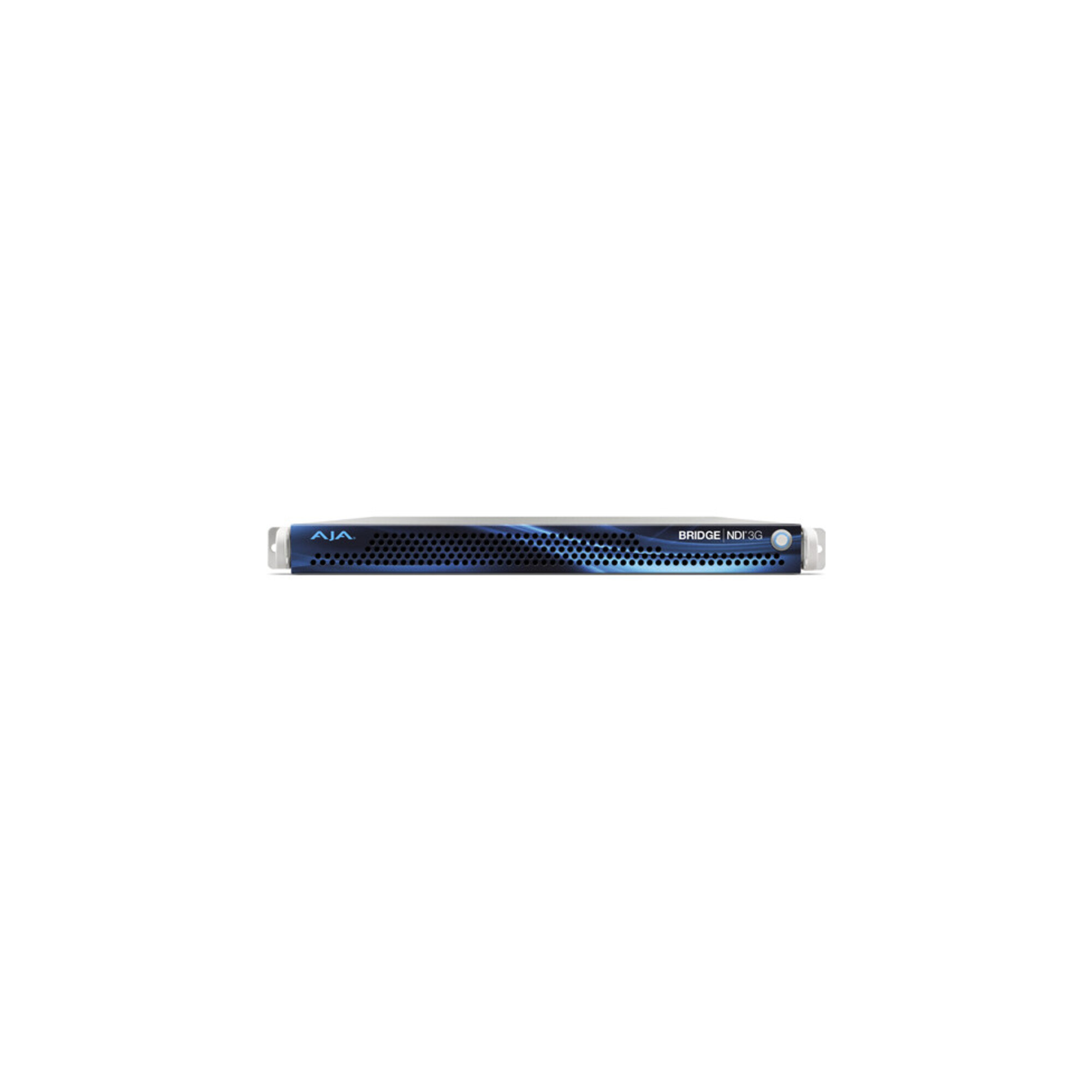

BNDI-3G16-R0

AJA's 3G NDI Bridge Converter provides high capacity 3G-SDI conversion to NDI and NDI to 3G-SDI in a compact 1 RU format. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcasting, security, sports, entertainment and other AV applications.

Converter features include video support up to DCI 4K60 4: 2: 2 10-bit, 16 3G-SDI I / O ports, two 10 GigE RJ45 I / O ports, support for up to 16 embedded audio channels and both local and remote control.

Conversion from 3G-SDI to NDI and NDI to 3G-SDI

- Bidirectional encoding / decoding from SDI to NDI or from NDI to SDI
-Combination of HD or DCI 4K / UHD 4K video

Applications
Use for broadcasting, esports, entertainment venues and other facilities, and security and surveillance

3G-SDI input and output
-Supports up to 16 channels of 3G-SDI up to 1080p60 HD
-Supports up to 4 channels of DCI or UHD 4K60
- Selectable square division or 2SI 4K

Selectable NDI profiles
Choose between 8-bit and 16-bit, 4: 2: 2 NDI encoding profiles

16-channel audio
-Built-in SDI and ND audio input and output
-Supports 2, 8 or 16 channels of built-in audio

Flexible operation
-HD input / output
-Use all HD channels for SDI to NDI encoding or NDI to SDI decoding

HD video and key I / O
-V + K grouping (video and key) allows you to combine and encode dual HD V + K SDI signals into a single NDI output with an alpha channel
-Individual NDI inputs with an alpha channel can be decoded and output as dual V + K SDI signals
Simultaneous encoding and decoding
SDI to NDI encoding and NDI to SDI decoding at the same time
Offers gateway conversion to easily connect SDI and NDI workspaces

All coding modes
It accepts up to 16 HD video signals input via 3G-SDI and applies NDI encoding to each channel, allowing up to 16 individual HD NDI channels to be output via 10 GigE.
The same 16 channels of 3G-SDI can also be used to enable:

-Eight dual channel video and key groups for NDI outputs
-Four quad or dual-channel 4K / UHD 4K DCI groups on NDI outputs

If configured to encode all SDI inputs to NDI outputs, it supports:
Simultaneous 3G-SDI inputs:

-16 simultaneous channels up to 60p YCbCr 4: 2: 2 10 bit
Simultaneous encoding for single 1080p channels:

-16 simultaneous channels up to 60p
Simultaneous encoding for 1080p video and key pairs:

-8 simultaneous channels up to 60p
Simultaneous encoding for DCI 4K / UHD 4K groups:

-4 simultaneous channels up to 60p

Encrypted output supported via 10 GigE:
-NDI UYVY, 4: 2: 2, 8 bit or P216, 4: 2: 2, 16 bit
All decoding modes
Decode all incoming NDI signals coming in through the 10 GigE ports directly to the SDI outputs.
Decode up to 16 NDI or NDI HX inputs into uncompressed HD video for output via 16 3G-SDI outputs.
Decode up to 8 NDI streams and one alpha channel for conversion and output as 8 dual 3G-SDI HD videos and key channels.
When decoding up to 4 NDI 4K / UltraHD streams, the 16 connections can support square division or 2SI for SDI output.

Simultaneous NDI / NDI HX inputs:

-4, 8 or 16 simultaneous channels up to 60p, UYVY, 4: 2: 2, 8 bit
Simultaneous 1080p decoding:

-16 simultaneous channels up to 60p
Simultaneous decoding of key pairs and 1080p video:

-8 simultaneous channels up to 60p
Simultaneous DCI 4K / UHD DK decoding:

-4 simultaneous channels up to 60p
Supported decoding output via dual 10 GigE ports:
-YCbCr 4: 2: 2 10 bit

Combinations of encoding / decoding
Provides combinations of up to 8 channels of SDI to NDI encoding and NDI to SDI decoding and SDI to NDI encoding in each direction.

Remote or local control
Local control using a mouse and keyboard with a VGA compatible monitor
-Remote access for easy control via the same intuitive user interface

Monitoring
- Confidence monitoring via BNC or VGA video output

* Note: To make the matrix operational, a power cable with a European/Italian plug is required
