M753

Name: M753
Brand: Ruipu
SKU: M753
Price: 112.8 EUR
Availability: OutOfStock

Ruipu

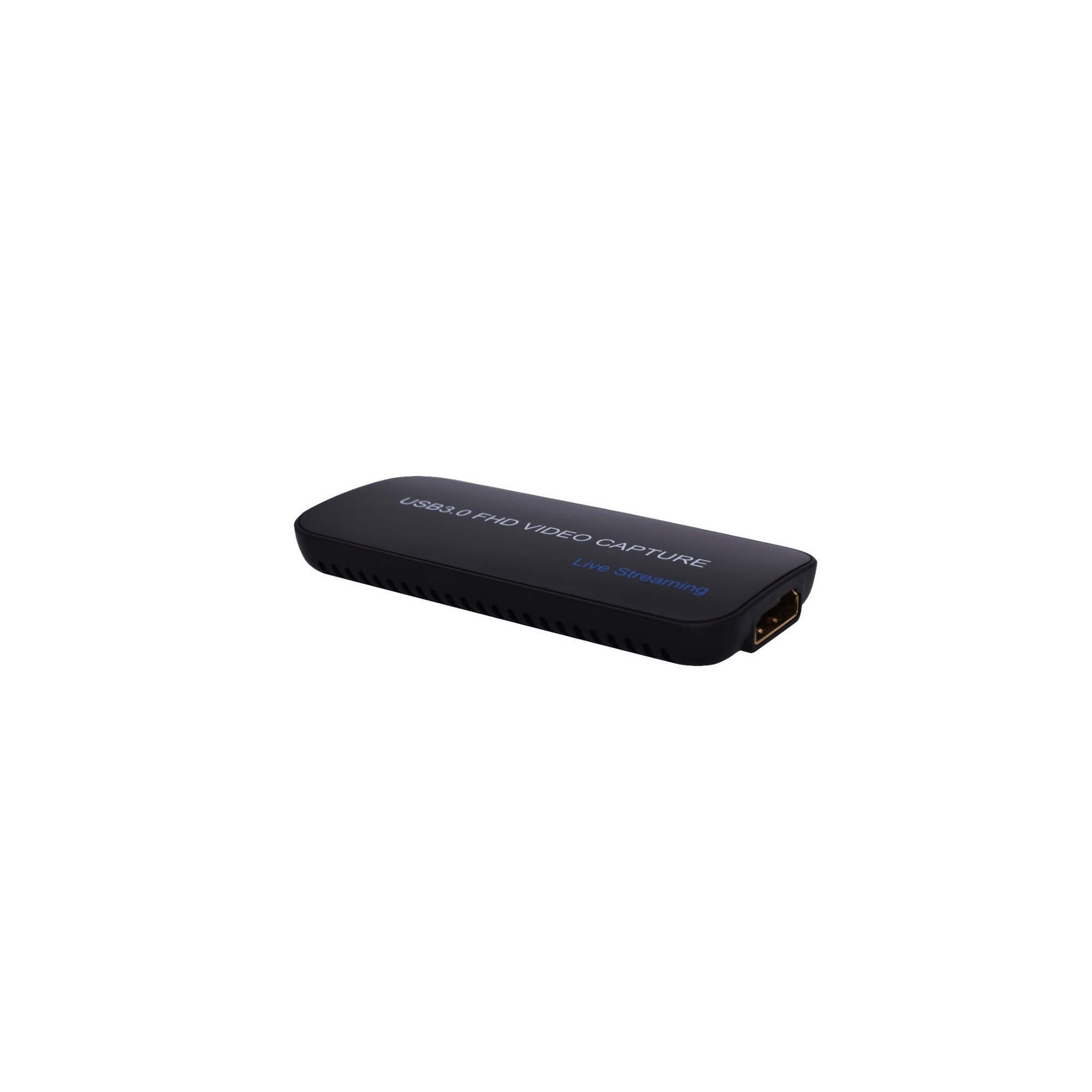

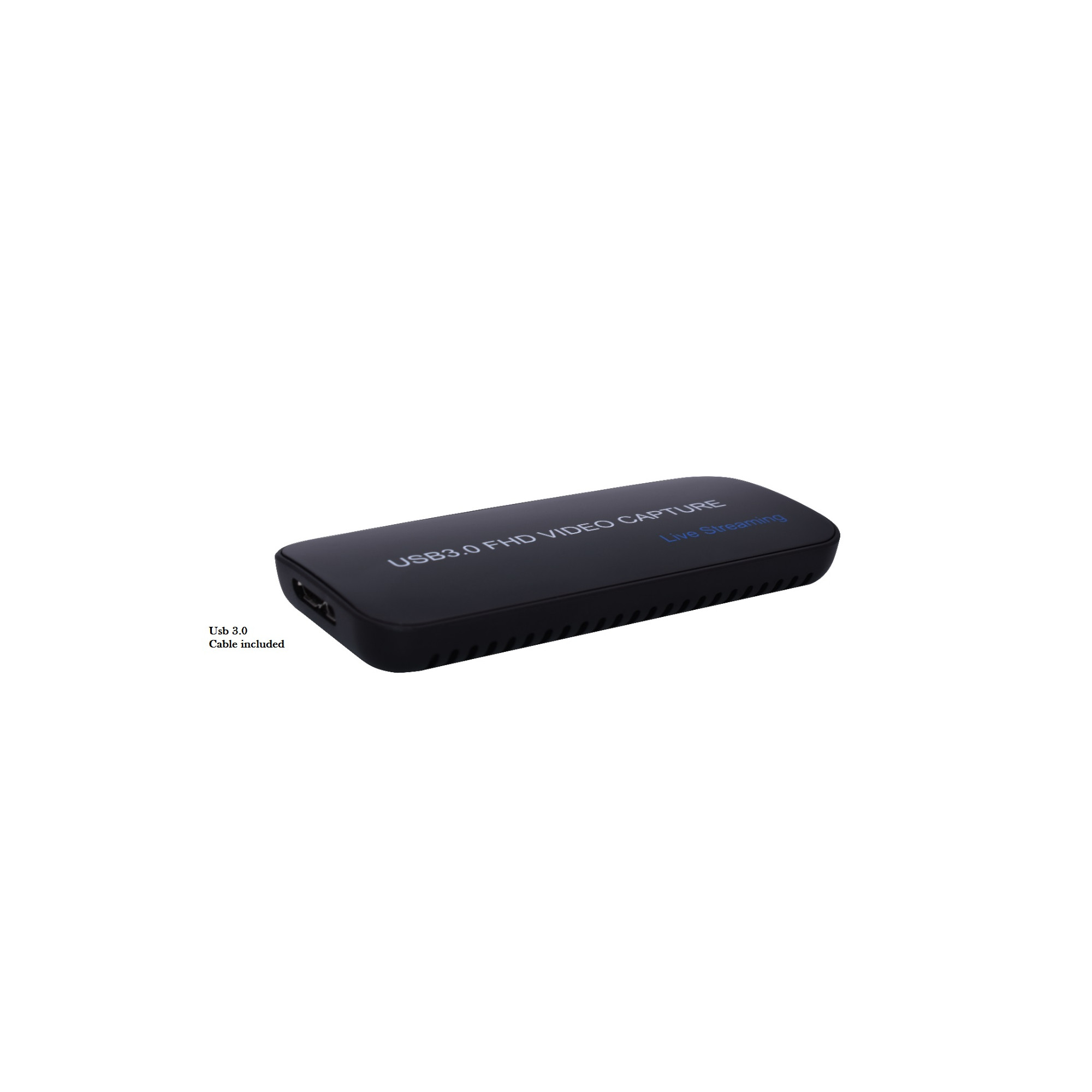

4K Live Streaming Video CaptureBox-mini, HDMI in up to 4k60

go to the technical sheet

€ 112,80

€ 104,93 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

Input signals: HDMI, MIC, Line in
Input up to 4K 60
Output signals: HDMI(pass-through), USB3.0, Line out
Output up to 4K 60
Video saving mode: PC
Recording up to 1920x1080 (60p)
Bitrate: up to 16Mbps in MJPEG, YUY2
Supports PS3/PS4/XBox 360/XBox One/Wii family-video-discs/B-family-video-discs Player,ST box, etc
Windows 10/Mac OS X (10.10 or above) / Linux (Ubuntu 12.04-16.10, CentOS 7) /Android 5.0 or above
VLC,VirtualDub,OBS,XSplit,vMix,VidBlaster,Wirecast,Microsoft Media Encoder,Adobe Flash Media Encoder, DirectShow,Wave API/DirectSound/WASAPI,V4L2,ALSA,QuickTime, Zoom,Cisco WebEx,Skype,Microsoft Team,Wirecast

Video input resolution supports: 720x400@70Hz,640x480@60Hz,640x480@75Hz,800x600@60Hz,800x600@75Hz,1024x768@60Hz,1024x768@75Hz,1280x1024@75Hz,1920x1080@60Hz,1280x1024@60Hz,1280x800@60Hz,1360x850@60Hz,1440x900@60Hz,1680x1050@60Hz,2560x1080p60,1280x720p60,1280x720p50,720x576p50 16:9,720x576p50 4:3,720x480p60 16:9,720x480p60 4:3,640x480p60,1440x576i50 4:3,1440x480i60 4:3,1440x480i60 16:9 3840x2160p30,3840x2160p25,3840x2160p24 1920x1080p60,1920x1080p50,1920x1080p30,1920x1080p25,1920x1080p24,1920x1080i60,1920x1080i50
Capture resolution up to 4K/30FPS
Capture format : YUY2,NV12,RGB
Sampling rate : 48kHz,44.1KHz,32KHZ PCM
System Requirements
diameter Windows® 10 / Windows 8.1 / Windows 7 (SP1)
diameter Computer: Intel® Core™ i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or above
diameter Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above
diameter 4 GB RAM or above (Suggest 8 GB)
diameter One free USB3.0 port
diameter system compatible
Support 3rd party
l OBS (Windows, Mac),XSplit (Windows),Wirecast (Windows, Mac),Adobe Flash Media Live Encoder (Windows),DirectShow (Windows),DirectSound (Windows),QuickTime Player (Mac),VLC (Mac),Safari (Mac),Firefox (Mac),Chrome (Mac),Skype (Mac)

Capture Resolution:
up to 4K/30FPS
Computer recording:
Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
l OS X (10.10 or above)
l Linux Ubuntu 14.04
Length* Width* Height:8.5 x 4.3 x 1.7
Net Weight:82g
Input Port:
*USB 3.0

Less than 5W
streaming dongle
USB to type-C cable
Quick Start Guide
Software CD
