KONA 5

Name: KONA 5
Brand: AJA
SKU: KONA 5
Price: 5001.91 EUR
Availability: OutOfStock

AJA

12G-SDI I/O, 10-bit PCIe Card, HDMI 2.0 output w/ HFR support (ATX Power)

go to the technical sheet

€ 5.001,91

€ 4.652,94 VAT excl.

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

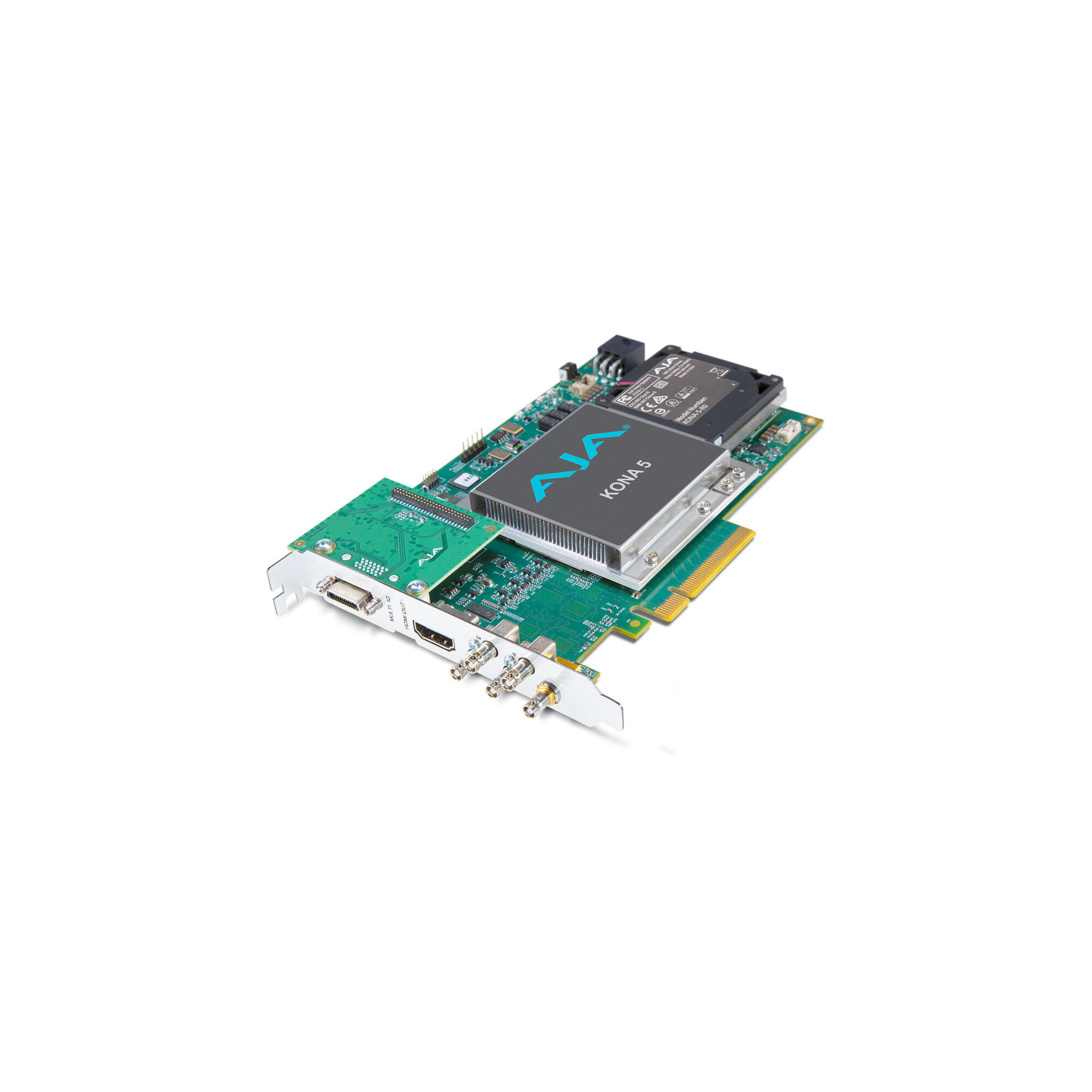

KONA 5 - 12G-SDI I/O, 10-bit PCIe Card, HDMI 2.0 output w/ HFR support (ATX Power)

° 8-Lane PCIe 3.0 I/O Card
° Up to HFR 8K Support
° 4 x Bidirectional 12G-SDI Connectors
° HDMI 2.0 Monitoring Output
° Supports 12-Bit 4:4:4 Color Space
° 6G/3G/1.5G Backwards Compatible
° Reference Input
° Breakout Cable with AES/EBU, LTC, RS-422
° Built-In Hardware Downstream Keyer
° Can Be Locked to External Reference

The AJA KONA 5 is an 8-lane PCIe 3.0 I/O card designed for demanding video and audio editing workflows. It features four bidirectional 12G-SDI HD-BNC connectors supporting up to HFR 8K video ingest and output. It also has an HDMI 2.0 output for monitoring and includes a breakout cable for AES audio input/output, LTC timecode input/output, and RS-422 control.

The bidirectional SDI connectors allow for simultaneous capture and monitoring. 12G-capable, the connectors also provide less points of failure while offering 6G/3G/1.5G backwards-compatibility. The KONA 5 also has a built-in hardware downstream keyer that allows graphics and images to be easily overlaid on the input video in real time.

Key Features

° Up to 8K, UHD 8K, DCI 4K, UHD 4K, 2K/HD/SD ingest and output at frame rates up to 50/60 fps
° Supports RGB 4:4:4 and YCbCr 4:2:2 workflows
° 10-bit DCI/UHD 4K and 2K/Dual Link/HD/SD input and output
° 12-bit color support (application dependent)
° HDMI 2.0 output (DCI/UHD 4K HFR 4:2:2 10-bit)
° HDR10 support—HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3HLG (Hybrid Log Gamma) support
° 8-channel AES/EBU, 8-channel embedded HDMI, and 16-channel embedded SDI digital audio I/O
° Reference input on card (analog black burst or tri-level)
° Extend external connectivity with included breakout cable
° RS-422 support on 9-pin connector
° macOS, Windows, and Linux support
° AJA Control Room and AJA Control Panel software included as free downloads to get you up and running with up to 8K HFR workflows right out of the box

Breakout Cable
8 channels of AES/EBU inputs on 4 x BNC
8 channels of AES/EBU outputs on 4 x BNC
LTC input and output on 2 x BNC
RS-422 on 9-pin connector

Compatibility
Below are the applications KONA 5 is currently compatible with.

Editing
Adobe Premiere Pro
Apple FCP X
Avid Media Composer
Avid Media Composer—NewsCutter option (Windows only)
Avid Media Composer—Symphony option
Grass Valley EDIUS
Mistika Ultima

Color
Adobe SpeedGrade (up to 2015.1)
Assimilate SCRATCH
Colorfront QC Player (Windows only)
Mistika Ultima (Linux only)
Transkoder (Windows only)

Dailies / Archiving
Assimilate SCRATCH
MTI Film Cortex (Windows only)

Effects
Adobe After Effects

Graphics
Adobe Photoshop
Brainstorm eStudio (Windows only)
Brainstorm InfinitySet (Windows only)
Unreal Engine
Zero Density Reality Engine Virtual Studio (Windows only)

Audio
Adobe Audition CC
Avid Pro Tools

Ingest / Playout
Softron MovieRecorder (Windows only)
ToolsOnAir just:in (Windows/Linux only)

Streaming / Live Production
Adobe Flash Media Live Encoder
OBS (Ubuntu Linux Only)
Telestream Wirecast
Unreal Engine

VJ / Live Video Performance
Derivative TouchDesigner

Download

Datasheet

Download (241.06KB)

Video Formats 8K: 8192 x 4320 at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 8K: 7680 x 4320 at 60/59.94/50/30/29.97/25/24/23.98
DCI 4K: 4096 x 2160 at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 3840 x 2160 at 60/59.94/50/30/29.97/25/24/23.98
HD 2K
° 2048 x 1080p at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
° 2048 x 1080PsF at 25/24/23.98
° 1080p at 60/59.94/50/30/29.97/25/24/23.98
° 1080PsF at 30/29.97/25/24/23.98
° 1080i at 60/59.94/50
SD:
° 720p at 60/59.94/50
° 625i/50
° 525i/59.94

SDI Input & Output 4 x Bidirectional 12G-SDI on HD-BNC Connectors
2K/HD Simultaneous Capture and Monitoring
DCI/UHD 4K with 12G-SDI Simultaneous Capture and Monitoring
DCI/UHD 4K with 3G-SDI: All 4 Connections Used for Either Input or Output
8K/UHD 8K with 12G-SDI: Connections Used for Either Input or Output

*When Connections Are Configured for 12G-SDI or 6G-SDI, Only 8K/UHD 8K, DCI 4K, and UHD 4K Formats are Supported

Input:
12G-SDI, SMPTE-2082, 12-Bit, 10-Bit, 8-Bit

6G-SDI, SMPTE-2081, 10-Bit, 8-Bit

3G-SDI, SMPTE-259/292/296/424/425, 12-Bit, 10-Bit, 8-Bit

DCI/UHD 4K 4:4:4 (4 x BNC)

1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-Bit, 10-Bit, 8-Bit

1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-Bit, 8-Bit

Output:
12G-SDI, SMPTE-2082, 12-Bit, 10-Bit, 8-Bit

6G-SDI, SMPTE-2081, 10-Bit, 8-Bit

3G-SDI, SMPTE-259/292/296/424, 12-Bit, 10-Bit, 8-Bit

DCI/UHD 4K 4:4:4 (4 x BNC)

1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-Bit, 10-Bit, 8-Bit

1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-Bit, 8-Bit
HDMI Output HDMI v2.0

30/36-Bits/Pixel, RGB or YUV, 6 Gb/s per Color Component

DCI/UHD 4K, 2K, HD, and SD with HFR Support up to 60p (4:2:2), 10-Bit, 8-Bit

HDR10 Support: HDR Infoframe Metadata, Compatible with HDMI 2.0a/CTA-861.3

HLG Support: Compatible with HDMI 2.0b/CTA-861-G
Audio Input & Output Input:
16-Channel, 24-Bit and 16-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous

8-Channel, 16-Bit and 24-Bit AES/EBU Audio, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion (via 4 x BNC on Breakout Cable)

Output:
16-Channel, 24-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous

8-Channel, 24-Bit HDMI Embedded Audio, 48 kHz Sample Rate, Synchronous

8-Channel, 16-Bit and 24-Bit AES/EBU Audio, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion (via 4 x BNC on Breakout Cable)
Downstream Keyer Supports Graphics up to 2K/HD with Alpha Channel over Video, Matte or Framebuffer, or Framebuffer Content over Incoming Video or Matte
Reference Analog Color Black (1V) or Composite Sync (2 or 4 V) or HD Tri-Level Sync (1 V) (via 1 x HD-BNC at PCIe Bracket)

Reference Input Is Terminated into 75 Ohms when Genlock Is Set to Ref In
Timecode LTC Timecode Input and Output (via 2 x BNC on Breakout Cable)

LTC Timecode Input (via 2-Pin Header on PCIe Card)

LTC Timecode Input (via HD-BNC at PCIe Bracket)
Breakout Cable Connector 4 x BNC for 8 Channels, 16-/24-Bit AES/EBU Audio Input, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion

4 x BNC for 8 Channels, 16-/24-Bit AES/EBU Audio Output, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion

2 x BNC for LTC Timecode Input and Output

1 x 9-Pin D-Connector for RS-422
Timecode LTC Timecode I/O via 2 x BNC on Breakout Cable

LTC Timecode Input via 2-Pin Header on PCIe Card

LTC Timecode Input via HD-BNC at PCIe Bracket
PCIe Interface 8-Lane PCIe 3.0
Noise < 50 dBA (A-Weighted at 3.2'' / 1 m in Free Air)
Machine Control RS-422, Sony 9-Pin Protocol (via Breakout Cable)

General
Power 28 W Typical, 35 W Maximum via ATX Power
PC Internal ATX Power Connector (Molex) - KONA 5 Uses PCIe Power from a 6-Pin ATX Connector Rather than the PCIe Slot
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Relative Humidity 10-90% Non-Condensing
Operating Altitude < 10,000'' / 3050 m
Dimensions 0.75 x 6.9 x 5.0" / 1.9 x 17.5 x 12.7 cm
Weight Card: 0.6 lb / 0.3 kg
Cables: 1.3 lb / 0.6 kg
