ECM-77LM

Name: ECM-77LM
Brand: Sony
SKU: ECM-77LM
Price: 394.3 EUR
Availability: OutOfStock

Sony

EAN: 27242910737

Miniature Omni-Directional Lavalier Condenser Microphone XLR

go to the technical sheet

-2.5%

Save 2.5%

€ 394,30

€ 366,79 VAT excl.

€ 404,42

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

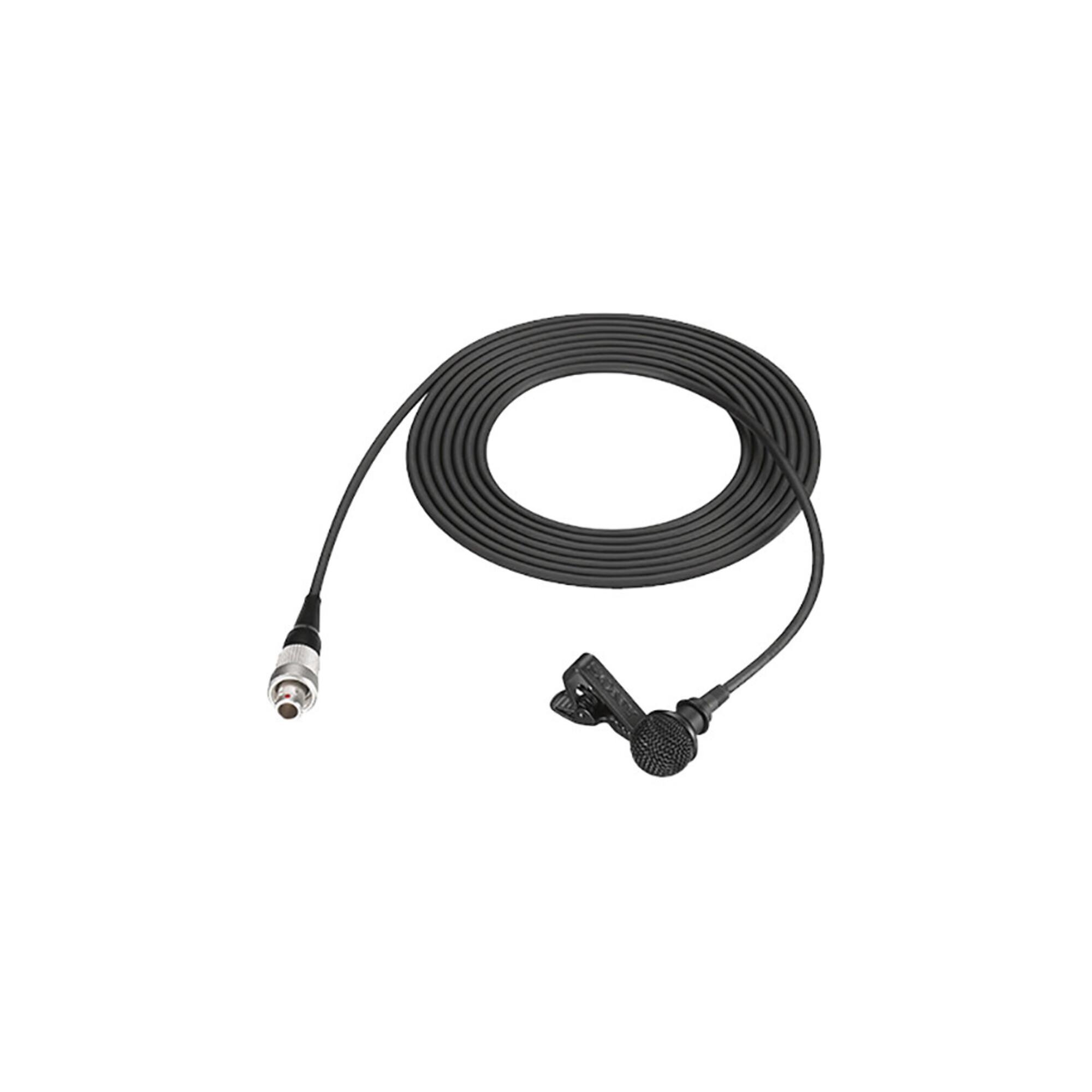

The ECM-77LM Miniature Omnidirectional Electret Condenser Microphone from Sony is a microphone that is optimized for clear speech pick-up, equipped with a frequency response of 40 Hz to 20 kHz, and terminated with a 3-pin male LEMO connector. It can be used to capture audio when paired with a Sony DWT-B03R bodypack transmitter and receiver (sold separately) for live stage, theater, and TV broadcast applications. The miniature design of the ECM-77LM makes it easy to conceal in a stage performers costume.

Microphones - Accessories Spare parts Audio

Rycote

065514

€ 24,51 VAT included

Available 3 unit in 4 Days

Rycote

105501

€ 31,68 VAT included

Available 5 unit in 4 Days

Rycote

105502

€ 31,68 VAT included

Available in 19 days

Rycote

065501

€ 40,42 VAT included

Available 5 unit in 4 Days

Rycote

065502

€ 52,13 VAT included

Available 2 unit in 4 Days

-2.49%

Sony

AD-C77B

-2.49%

€26,31 € 25,65 VAT included

Available 8 unit in 4 Days

Sony

SAD-V77B1

€ 40,36 VAT included

Available 17 unit in 4 Days

-2.5%

Sony

AD-R77B

-2.5%

€109,13 € 106,40 VAT included

Available in 14 days

Adcom Cable

XLR-5MXLR-3F 50 - Adcom Cable

€ 9,35 VAT included

Available in 15 days

Technical Performance
Sound Field : Mono
Transducer : Electret Condenser
Polar Pattern : Omnidirectional
Frequency Range : 40 Hz to 20 kHz
Signal to Noise Ratio : 64 dB A-Weighted
Maximum SPL : 127 dB SPL RMS
Impedance : 63 kOhms ± 30% kHz
Sensitivity : 39 dB
Dynamic Range : 95 dB A-Weighted

General
Output Connector : 3-Pin LEMO
Cable Length : 5.25'' / 160.02 cm
Operating Voltage : 3.0 to 10.0 V
Operating Current Consumption : 0.4 mA
Length : 12.5 mil / 0.32 mm
Diameter : 5.6 mil / 0.14 mm
Weight : 0.05 oz / 1.5 g
