AT-5040

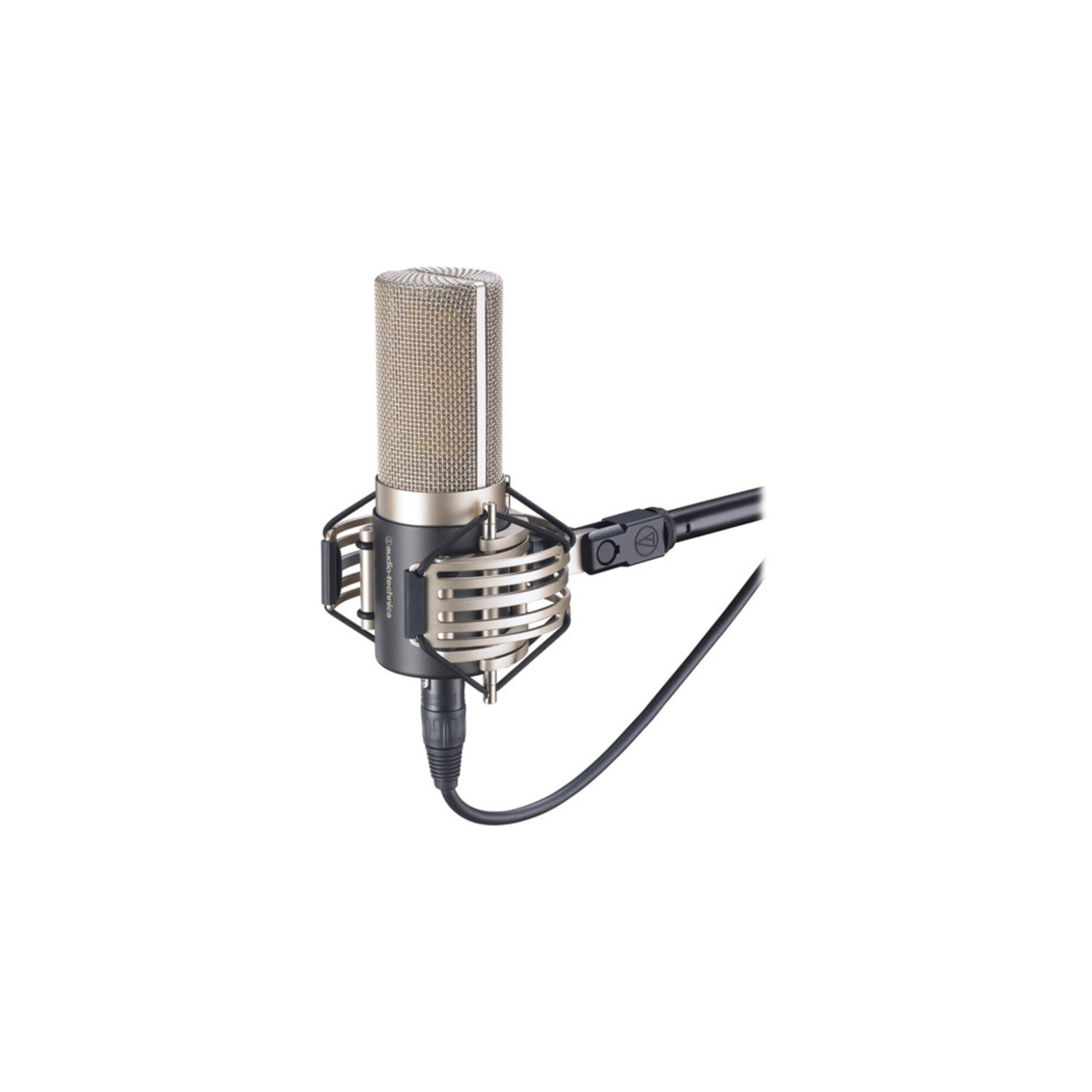

The AT5040 Cardioid Condenser Microphone by Audio-Technica is designed as a vocal microphone and features a smooth top end with controlled sibilance. It also offers fast transient response, making it suitable for acoustic instruments, such as piano, guitar, strings, and saxophone. The microphone employs a four-part rectangular element to provide purity of sound. Each of the four parts function together and provide a surface area twice the size of a standard 1.0" circular diaphragm. There is an advanced internal shockmounting system, effectively decoupling the capsule from the housing for vibration-free performance. The microphone includes a shockmount for additional isolation. The AT5040 is hand assembled and inspected for quality control and is enclosed in an aluminum and brass housing for durability.

-Musical high-fidelity performance with realism, depth, presence, and purity of sound
-Four rectangular diaphragms function together as a large element, providing a combined surface area twice the size of a standard 1.0" circular diaphragm
-Low noise and wide dynamic range suitable for studio vocals
-Discrete components for optimized capsule performance
-High-SPL capability and extended frequency response
-Hand assembled and inspected for quality control
-Advanced internal shock mounting decouples the capsule from the microphone body
-Durable aluminum and brass housing
-Included custom AT8480 shockmount provides superior isolation
-Hard-shell carrying case with die-cut foam compartments for protection during storage and transport

In the Box
-Audio-Technica AT5040 Cardioid Condenser Microphone
-AT8480 Shockmount for 5/8"-27 Threaded Stands
-Protective Carrying Case
-Limited 5-Year Warranty

Microphone
Capsule : Condenser
Polar Pattern: Cardioid
Performance
Frequency Range: 20 Hz to 20 kHz
Maximum SPL: 142 dB SPL
Impedance : 50 Ohms
Sensitivity : 56.2 mV/Pa
Dynamic Range: 137 dB
Signal-to-Noise Ratio: 89 dB
Equivalent Noise Level : 5 dB
THD: 1%
Connectivity
Output Connectors (Analog) : 1 x XLR 3-Pin
Power
Operating Voltage : 48 V
Operating Current Consumption : 3.8 µA
Physical
Dimensions : 2.24 x L: 6.51" / : 57 x L: 165.3 mm
Weight : 20.53 oz / 582 g
Packaging Info
Package Weight: 7.35 lb
Box Dimensions (LxWxH): 17.3 x 12.3 x 7.7"
