AT8015

Name: AT8015
Brand: Audiotechnica
SKU: AT8015
Price: 744329 NGN
Availability: OutOfStock

Audiotechnica

Line + Gradient Condenser Microphone

go to the technical sheet

₦ 744,329.00

₦ 692,399.00 VAT excl.

Available in 11 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

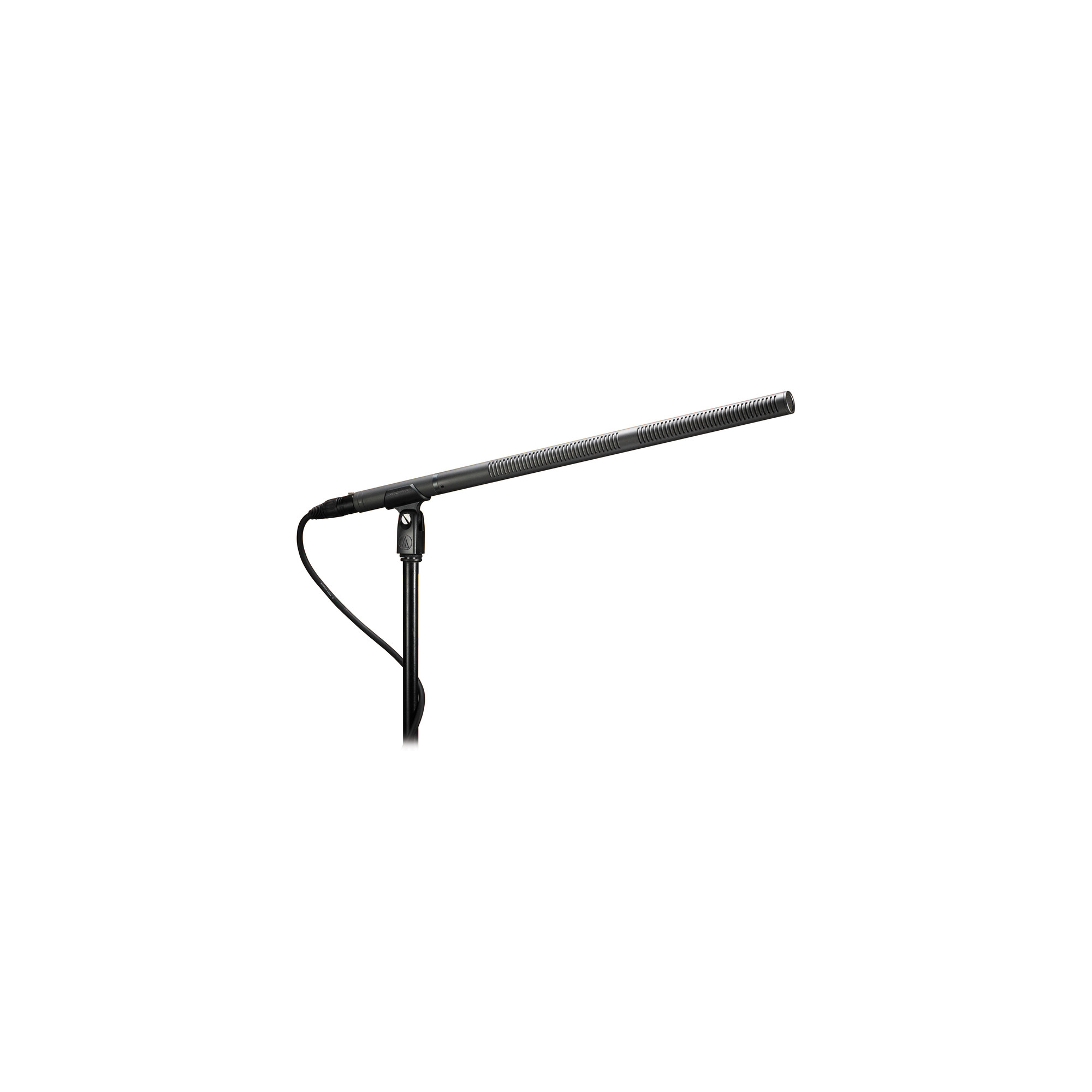

Designed for video production and broadcast (ENG/EFP) audio acquisition, the AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.

Microphones - Accessories

Rycote

086007

₦ 1,111,173.00 VAT included

Available in 14 days

Rycote

104402

₦ 48,589.00 VAT included

Available 3 unit in 4 Days

Download

Manuale

Download (116.88KB)

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Line + gradient
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: -38 dB (12.5 mV) re 1V at 1 Pa
Battery: -39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 250 ohms
Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 110 dB, 1 kHz at Max SPL
Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 72 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical
(alkaline)
SWITCH Flat, roll-off
WEIGHT 195 g (6.9 oz)
DIMENSIONS 460.0 mm (18.11") long,
21.0 mm (0.83") diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, AT8135 windscreen, battery, protective carrying case
AUDIO-TECHNICA CASE STYLE SG3
