Miniature Cardioid Lavalier Microphone with a Microdot Termination
go to the technical sheet
  • -2.5%
Save 2.5%
€ 595,22

€ 553,69 VAT excl.

€ 610,48
Available 3 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

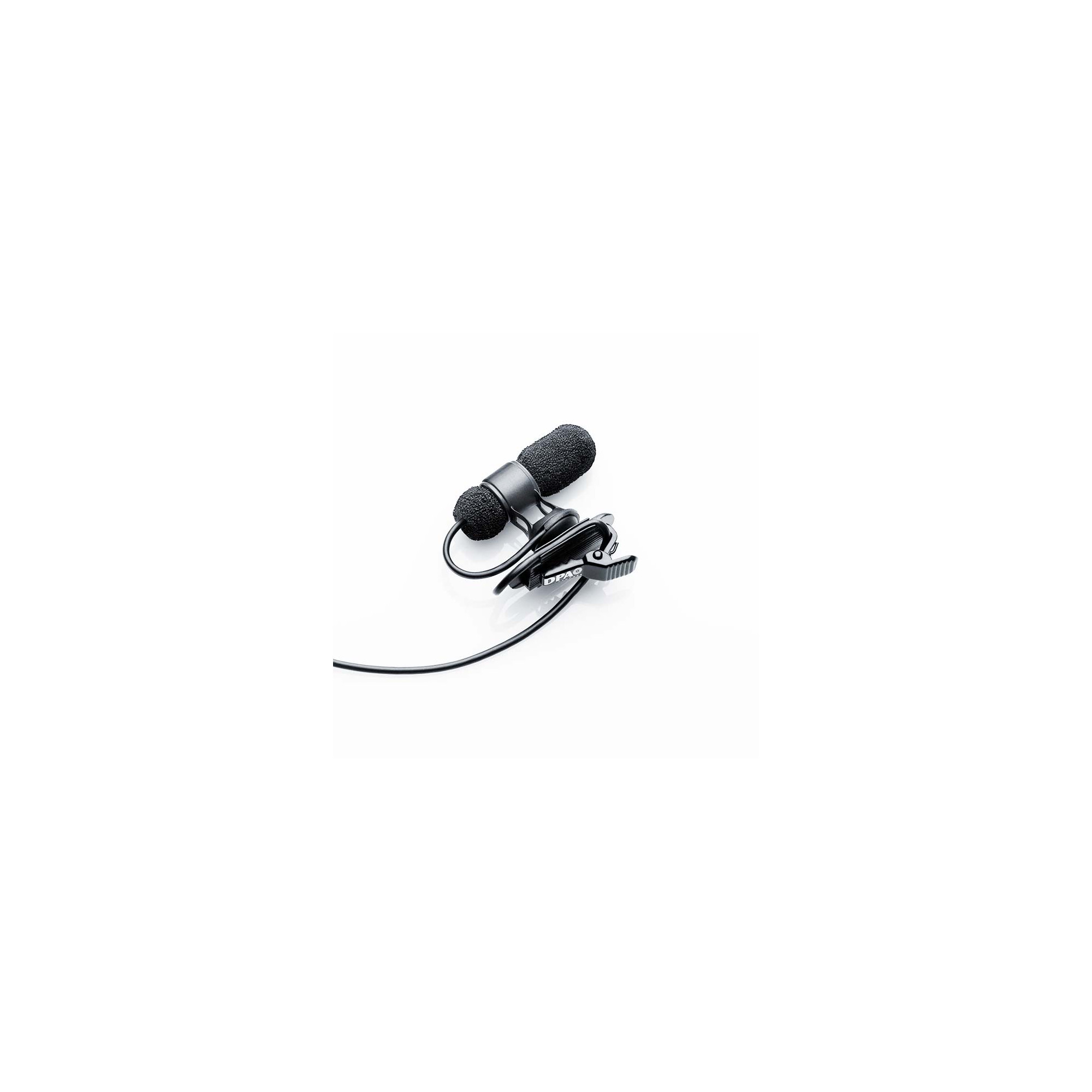

Combining high audio quality and low visibility, the d:screet™ 4080 Miniature Cardioid Microphone, Lavalier is well suited for broadcast, conference, and other live performances in the studio or in the field.

It is acoustically pre-equalized, offering a 4 dB presence boost. This makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate the light weight and the excellent speech reproduction.

d:screet™ 4080 Miniature Cardioid Microphone, Lavalier is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is enclosed. Because of the flexible and practical mounting solution, the microphone can easily be turned in all directions and fits both left and right buttoned shirts.

All parts of the microphone are manufactured in highly-resistant materials and designed to perform under stress.

Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Features
The product offers the following features
Excellent speech reproduction
Discreet, compact design
Fits both left and right buttoned shirts
Delivered with both black and white pop filters
Modular adapter system fits most professional wireless systems or be equipped with XLR connector


Directional pattern
Cardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 25 cm (9.8 in)
250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
Sensitivity, nominal, ±3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 1% - Legacy
120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE
126 dB SPL RMS, 129 dB SPL peak
Dynamic range
Typ. 100 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated output impedance
30 - 40 O
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color
Black
Weight
15 g (0.5 oz) incl. Cable and MicroDot connector
Microphone diameter
5.7 mm (0.22 in)
Microphone length
30 mm (1.2 in)
Cable length
1.2 m (3.9 ft)
Cable diameter
1.6 mm (0.06 in)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
