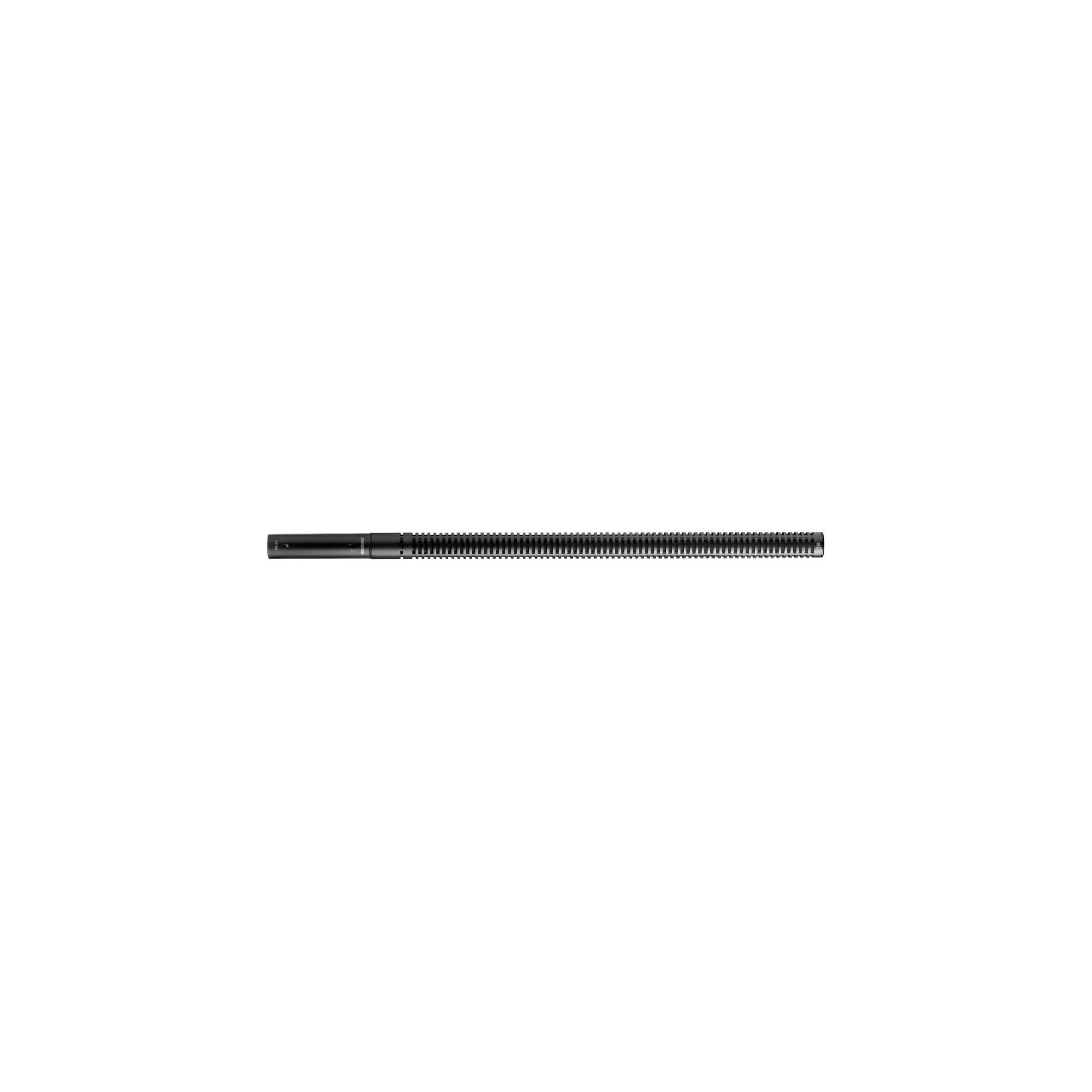

VP89L
Shure
This model ships with the long capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp.
State-of-the-art preamplifier redesign
Superior RF immunity
Internal low-frequency roll-off
Recessed low-cut filter switch for additional control
Smaller footprint
Superior Shure design and rugged, roadworthy construction
Long Capsule Design
Features and extremely narrow pickup angle for targeting sound sources over long distances (sporting events, ENG, wildlife, field recording)
Unmatched quality of off-axis rejection
XLR 3P M to F 1m
Shure VP89L Specs
Transducer Electret Condenser
Polar Pattern Hypercardioid / Lobar
Frequency Response 60Hz to 20kHz
Dynamic Range (Typical) Dynamic Range (@ 1 kHz)
2500 Ohms load: 117.0dB
1000 Ohms load: 113.5dB
Signal-to-Noise Ratio 79.0dB
Maximum Input Sound Level 2500 Ohms load: 132.0dB SPL
1000 Ohms load: 128.5dB SPL
Input Clipping Level Clipping Level (@ 1 kHz, 1% THD)
2500 Ohms load: 4.0 dBV
1000 Ohms load: 0.0 dBV
Power Requirements 11-52V DC phantom power (IEC-61938), <2.0 mA
Output Impedance 115.0 Ohms
Sensitivity -33.5 dBV/Pa (2.11 mV)
Noise Self Noise (equivalent SPL, A-weighted, typical):
15.0dB
Output Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Low Frequency Roll-Off 200Hz
Temperature Operating: -18°C (0°F) to 57°C (135°F)
Storage: -29°C (-20°F) to 74°C (165°F)
Power Requirements 11-52VDC phantom power (IEC-61938), < 2.0 mA
Weight VP89L: 174g (6.1 oz.)
VP89M: 138g (4.9 oz.)
VP89S: 117g (4.1 oz.)
Packaging Info
Package Weight 2.6 lb
Box Dimensions (LxWxH) 22 x 3.6 x 3.6"
